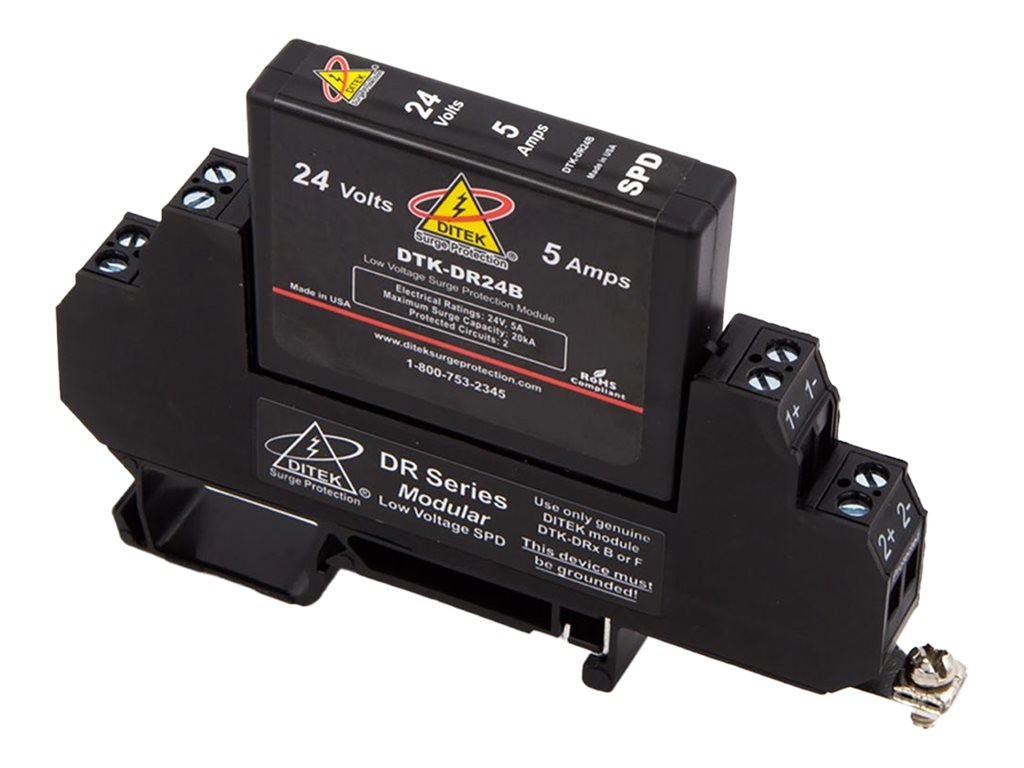

Surge protector (DIN rail mountable) - DC 24 V
| Main Specifications | |
|---|---|
| Product Description | DITEK DTK-DRB Series DTK-DR24B - surge protector |
| Device Type | Surge protector - DIN rail mountable |
| Weight | 2.29 oz |
| Input Voltage | DC 24 V |
| Output Voltage | DC 24 V |
| Dimensions (WxDxH) | 0.5 in x 4 in x 2.9 in |
| General | |
| Device Type | Surge protector - DIN rail mountable |
| Miscellaneous | |
| Features | For 35 mm DIN rail, plastic housing, protects two circuit pairs, field-replaceable protection module, silicon avalanche diodes (SAD), gas discharge tubes (GDT), grounded |
| Compliant Standards | UL, RoHS, UL 508, UL 497B, IP20, UL 94 V-0, ISO 9001, NFPA |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Power Device | |
| Input Voltage | DC 24 V |
| Output Voltage | DC 24 V |
| Max Electric Current | 5 A |
| Surge Suppression | Yes |
| Clamping Level | 39 V |
| Max Spike Current | 20000 A |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 4 in |
| Height | 2.9 in |
| Weight | 2.29 oz |
