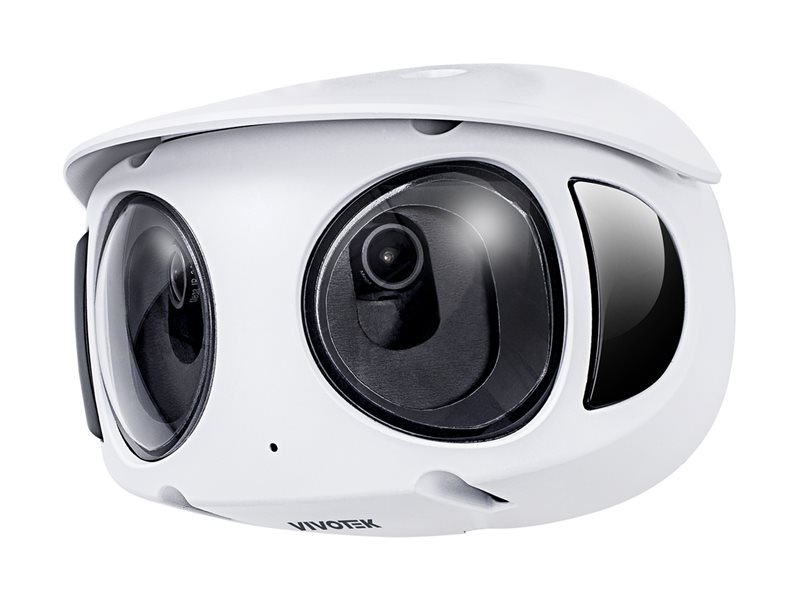

Panoramic camera - outdoor, indoor - water resistant / vandal resistant - color (Day&Night) - 8 MP - 4864 x 1632 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 4
| Main Specifications | |
|---|---|
| Product Description | Vivotek VORTEX Premium MS930-EHV - panoramic camera |
| Device Type | Panoramic camera - fixed - outdoor, indoor - water resistant / vandal resistant |
| Audio | Yes: one-way audio capability |
| Dimensions (WxDxH) | 6.5 in x 4.4 in x 3.8 in |
| Weight | 2.65 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 4864 x 1632 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.7" - 8 MP |
| Minimum Illumination | 0.018 lux - color - F1.2 - 30 IRE ¦ 0.01 lux - B&W - F1.2 ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 |
| Tilting Range (degree) | 20 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 4 |
| Features | Supreme Night Visibility, 3D Noise Reduction Technology, Smart Stream II, WDR technology, Smart VCA, 3 video streams, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, LED indicator, Backlight Compensation (BLC), Highlight Compensation (HLC), Privacy Mask Function, Pixel Calculator, e-mail alerts, shock detection, Audio Detection, Camera Tampering Detection, brute force delay protection, embedded SOC processor, Wide Dynamic Range (WDR) Pro, adjustable gain control, white balance |
| Environmental Parameters (operating) | -40 °F - 122 °F; 90% relative humidity |
| General | |
| Device Type | Panoramic camera |
| Audio Support | Yes: one-way audio capability |
| Audio Formats | G.726, G.711, MPEG2 AAC-LC |
| Connectivity Technology | Wired |
| Width | 6.5 in |
| Depth | 4.4 in |
| Height | 3.8 in |
| Weight | 2.65 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2 |
| Miscellaneous | |
| Included Accessories | Alignment sticker, desiccant bag, screwdriver, screw pack, sunshield, rubber bracket cover, waterproof cover, mounting bracket, Torx T10 screw driver |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at, IK10, NDAA, EN 55035 Class A, EN 55032, UKCA, FCC Part 15 Subpart B, RCM, AS/NZS CISPR 32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7 Class A, UL 62368-1, IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471, BS EN IEC 62368-1, IEC 62262 IK10, IEC 60529 IP66, IS 13252, CNS 15936, CNS 15598-1:2020 |
| Power | |
| Power Requirements | PoE Class 4 |
| Power Device | 20 watt |
| Software / System Requirements | |
| Software Included | VORTEX VSaaS xPro License (1 year) |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12, Google Chrome OS 58 or later |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 90% |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor, indoor - water resistant / vandal resistant |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 4864 x 1632 |
| Motion Detection | Yes |
| Exposure Range | 1/30 sec - 1/32000 sec |
| Minimum Illumination | 0.018 lux - color - F1.2 - 30 IRE ¦ 0.01 lux - B&W - F1.2 ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Supreme Night Visibility, 3D Noise Reduction Technology, Smart Stream II, WDR technology, Smart VCA, 3 video streams, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, LED indicator, Backlight Compensation (BLC), Highlight Compensation (HLC), Privacy Mask Function, Pixel Calculator, e-mail alerts, shock detection, Audio Detection, Camera Tampering Detection, brute force delay protection, embedded SOC processor, Wide Dynamic Range (WDR) Pro, adjustable gain control, white balance |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 |

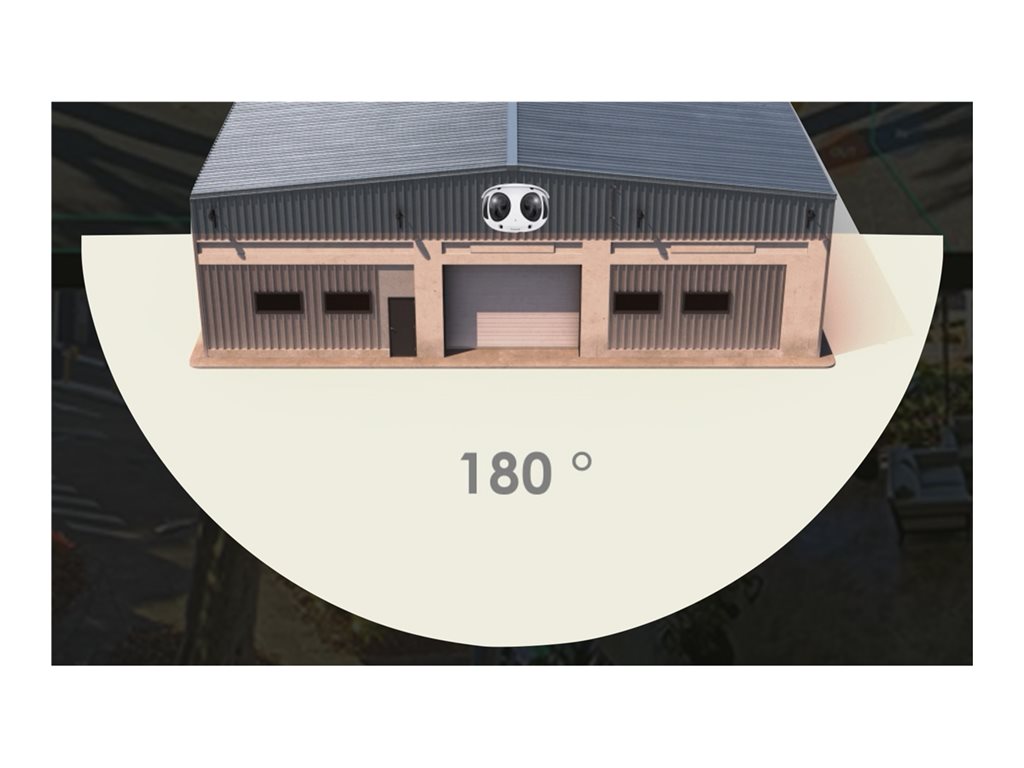

| Horizontal Field of View (degree) | 180 |
| Vertical Field of View (degree) | 50 |
| Diagonal Field of View (degree) | 180 |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, UDP, UPnP |
| Tilting | |
| Range (degree) | 20 |
