Surveillance camera - turret - weather resistant - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - fixed focal - HD-TVI, AHD, CVBS, CVI - DC 12 V
| Main Specifications | |
|---|---|

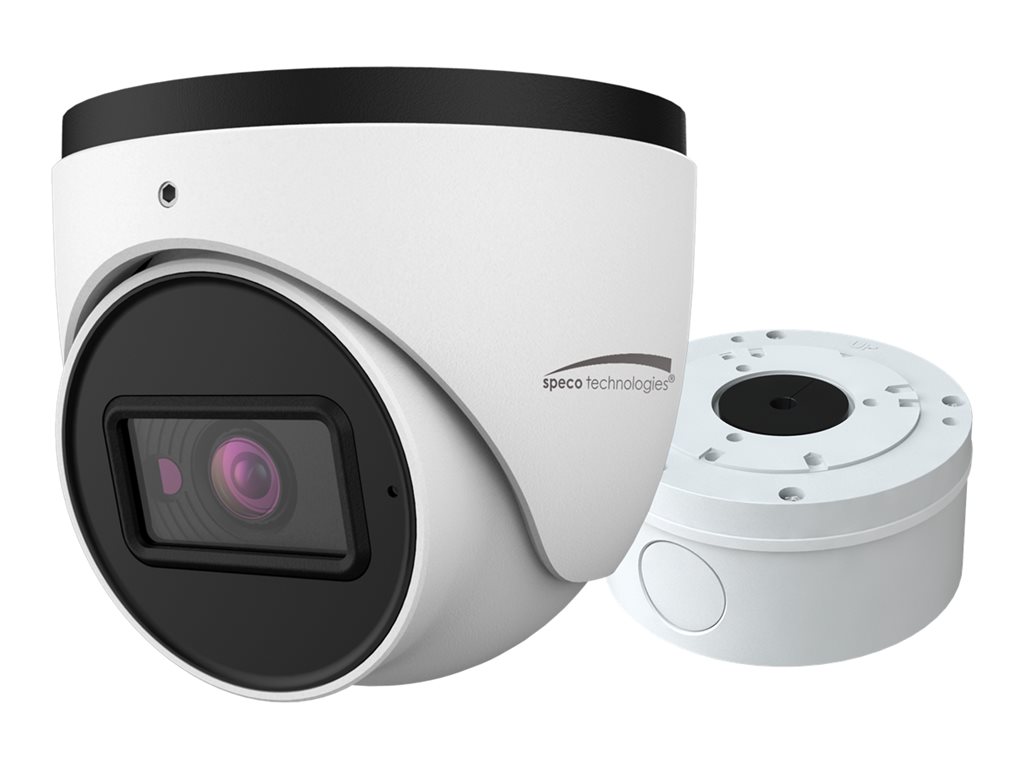

| Product Description | Speco VLT7 - surveillance camera - turret |
| Device Type | Surveillance camera - fixed - turret - weather resistant |
| Dimensions (WxDxH) | 3.7 in x 3.7 in x 3.3 in |
| Weight | 13.76 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - NTSC, PAL |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 1080p |
| Optical Sensor Type | CMOS - 1/2.8" - 2 MP |
| Minimum Illumination | 0.005 lux - color - F1.2 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | HD-TVI, AHD, CVBS, CVI |
| Voltage | DC 12 V |
| Features | Digital Wide Dynamic Range (D-WDR), 2D Digital Noise Reduction Technology, Automatic Gain Control (AGC), auto white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), Smart IR, Defect Pixel Correction (DPC) |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 10 - 90% relative humidity |
| General | |
| Device Type | Surveillance camera |
| Form Factor | Turret |
| Connectivity Technology | Wired |
| Width | 3.7 in |
| Depth | 3.7 in |
| Height | 3.3 in |
| Weight | 13.76 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Junction box |
| Compliant Standards | IP67, NDAA Section 889 |
| Color | White |
| Power | |
| Power Requirements | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 90% |
| Camera | |
| Type | Color - Day&Night - fixed - weather resistant |
| Video Format | NTSC, PAL |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080p |
| Exposure Range | 1/60 sec - 1/10000 sec |
| Minimum Illumination | 0.005 lux - color - F1.2 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Features | Digital Wide Dynamic Range (D-WDR), 2D Digital Noise Reduction Technology, Automatic Gain Control (AGC), auto white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), Smart IR, Defect Pixel Correction (DPC) |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Video | HD-TVI, AHD, CVBS, CVI |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 75 |
