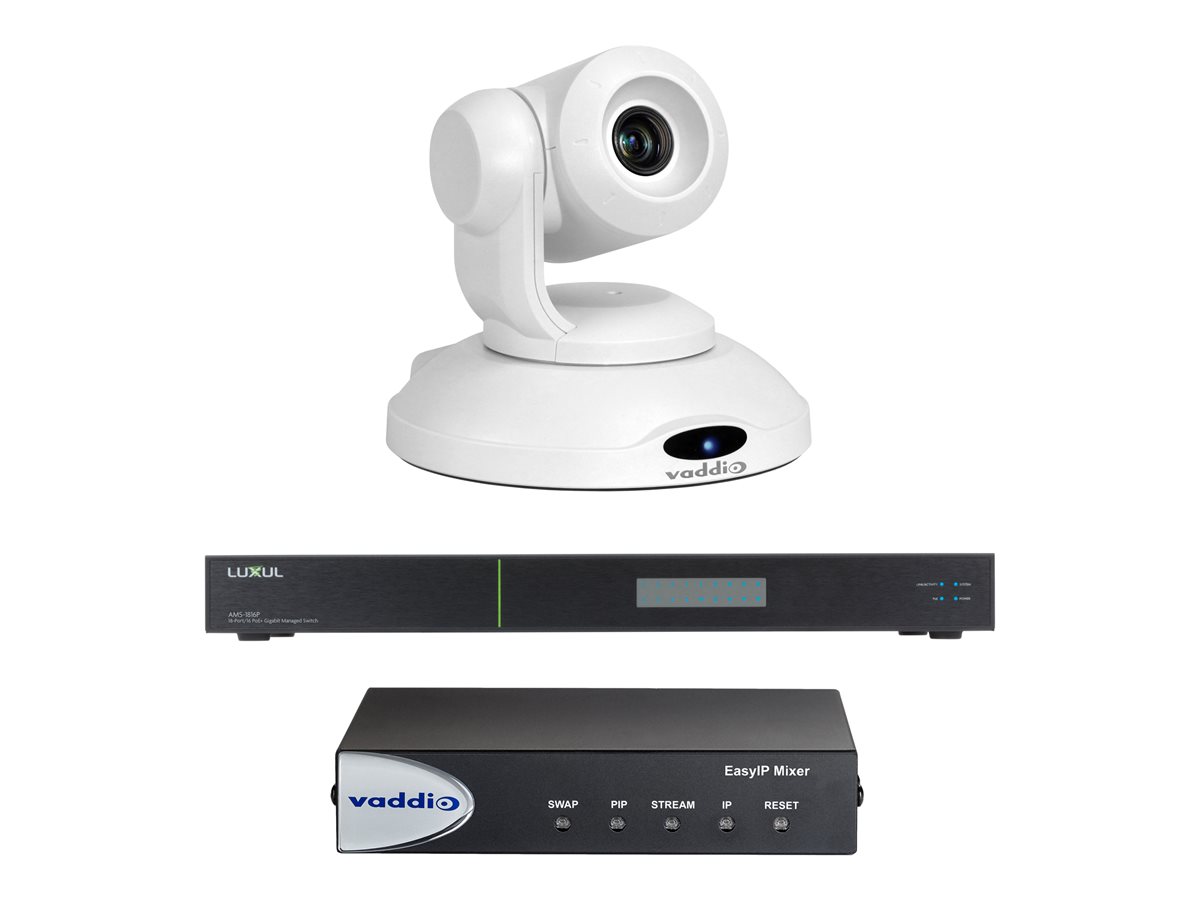

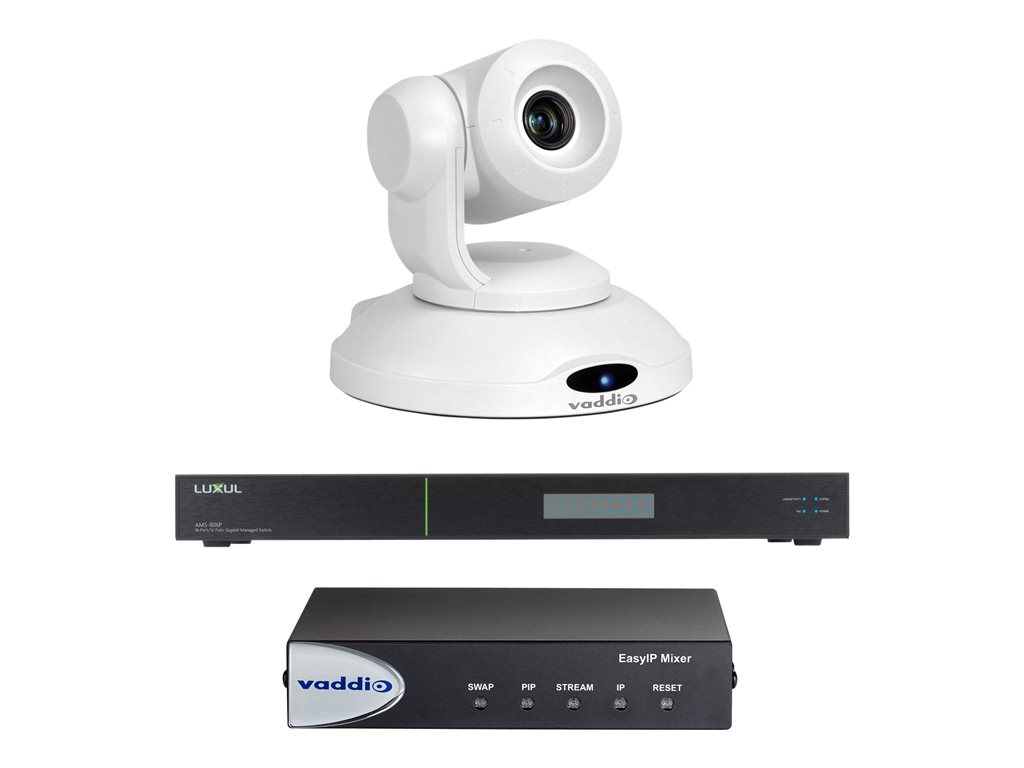

Mixer Base Kit - video conferencing kit (camera, EasyIP Mixer, EasyIP Switch) - white - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vaddio EasyIP 10 - Mixer Base Kit - video conferencing kit - TAA Compliant |
| Device Type | Video conferencing kit |
| Kit Content | Camera, EasyIP Mixer, EasyIP Switch |
| Localization | Europe, United Kingdom |
| Video Input | Digital video camera - SuperSpeed USB 3.0 |
| Video Output | Codec board - 1920 x 1080 |
| Input Device | Remote control (wireless) |
| Networking | Switch - Ethernet, Fast Ethernet, Gigabit Ethernet |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Camera, EasyIP Mixer, EasyIP Switch |
| Dimensions & Weight Details | Camera - Width 6.1 in Depth 5.7 in Height 6.4 in Weight 3 lbs ¦ Mixer - Width 8.4 in Depth 6 in Height 1.7 in Weight 2.6 lbs |
| Enclosure Color | White |
| Localization | Europe, United Kingdom |
| Expansion / Connectivity | |
| Interfaces | 1 x network - Ethernet - RJ-45 ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type B ¦ 1 x management - RS-232 - RJ-45 ¦ 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x audio - line-in/microphone - 3 pin terminal block ¦ 2 x audio - line-out - 3 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - 10 ft ¦ 1 x network cable - 3 ft ¦ 1 x SuperSpeed USB cable - 6 ft |
| Mounting Kit | Included |
| Rack Mounting Kit | Included |
| Included Accessories | Wall mount, rack mount kit, remote control, 6 x 3 pin Phoenix connector |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Type | Switch |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | PoE+, Quality of Service (QoS), 6KV Surge protection, fanless, self-healing network, VLAN trunking, static routing |
| Compliant Standards | IEEE 802.1Q |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Input Device | |
| Type | Remote control |
| Connectivity Technology | Wireless |
| Video Input | |

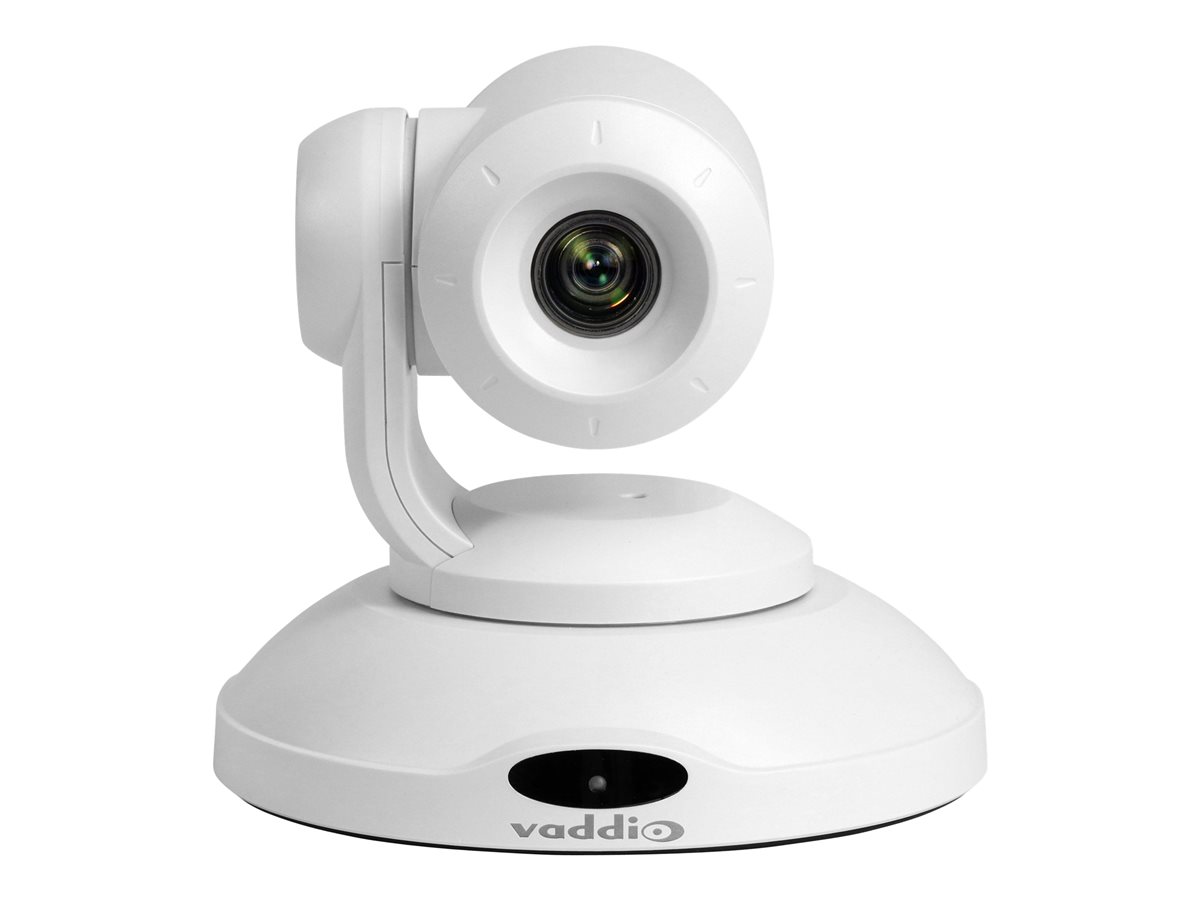

| Type | Digital video camera (color) - external |
| Interface Type | SuperSpeed USB 3.0 |
| Video Modes | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97i, 1080/25p, 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p |
| Optical Zoom | 10 |
| Camera Mechanical Design | Pan / tilt / zoom |
| Features | 1/2.8 Exmor CMOS image sensor type, 16:9 aspect ratio, 3:2 aspect ratio, 4:3 aspect ratio, 2.1 megapixels, 67° field of view, 7.6° field of view (tele), 0.35 - 90°/sec pan speed, 0.35 - 90°/sec tilt speed, -165° / +165° pan, -30° / +90° tilt, auto / manual focus, auto gain control, auto white balance, Backlight Compensation (BLC), PoE+ support, invertible, noise reduction, Wide Dynamic Range (WDR) |
| Video Output | |
| Type | Codec board - external |
| Max External Resolution | 1920 x 1080 |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
