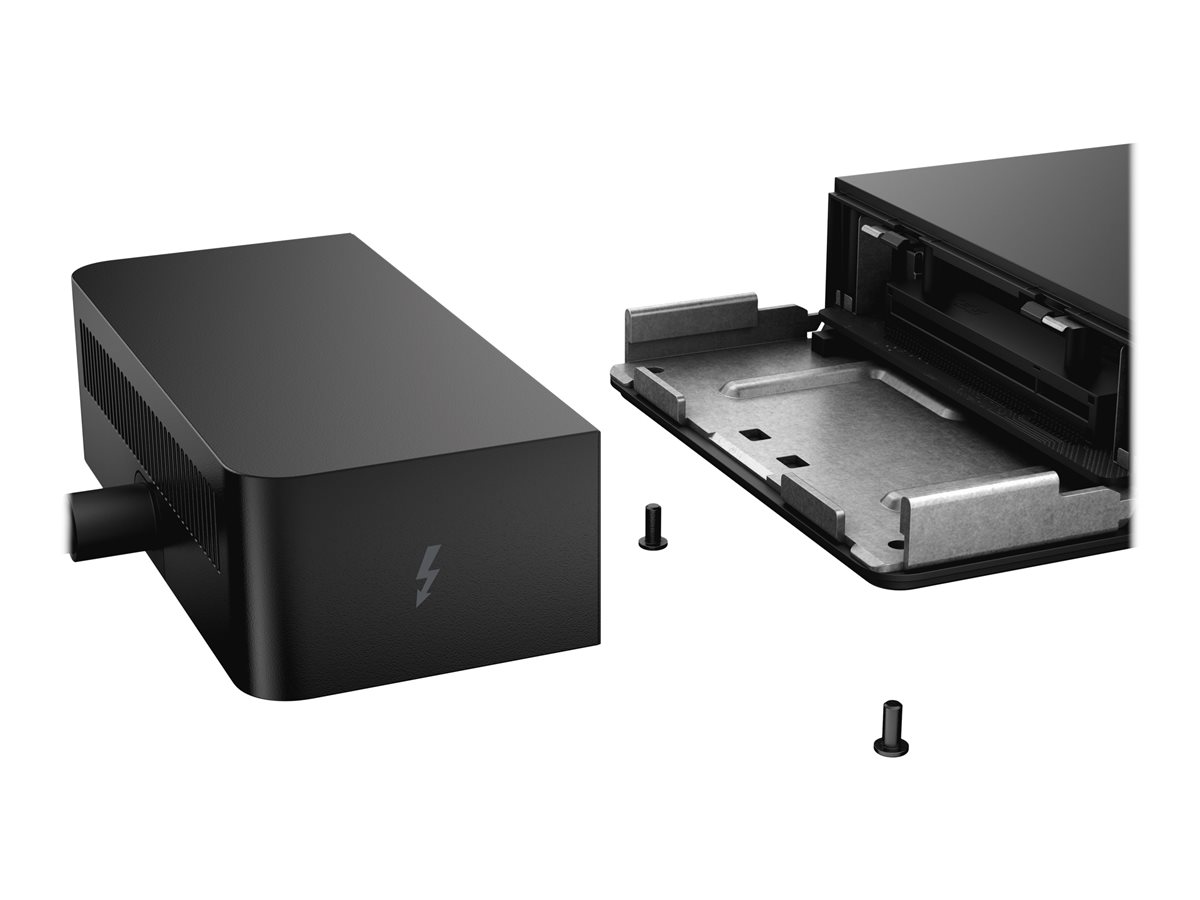

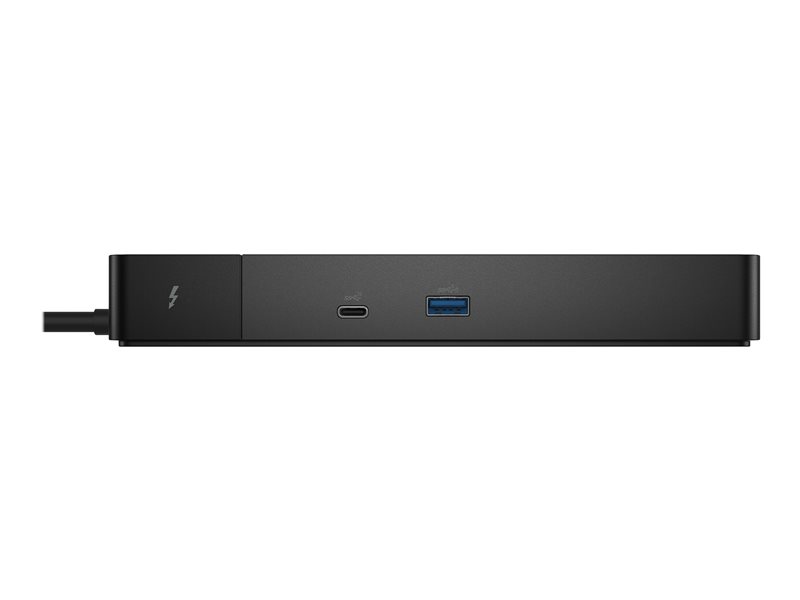

Docking station - Thunderbolt - HDMI, DP, Thunderbolt - 1GbE - 180 Watt - with 3 Years Basic Hardware Warranty
| Main Specifications | |
|---|---|
| Product Description | Dell WD22TB4 - docking station - Thunderbolt - DP, Thunderbolt, HDMI - 1GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt |
| Video Interfaces | DP, Thunderbolt, HDMI |
| Dimensions (WxDxH) | 8.1 in x 3.5 in x 1.1 in |
| Weight | 22.93 oz |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 120/230 V (50/60 Hz) 180 Watt Power Provided |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8.1 in |
| Depth | 3.5 in |
| Height | 1.1 in |
| Weight | 22.93 oz |
| Expansion / Connectivity | |

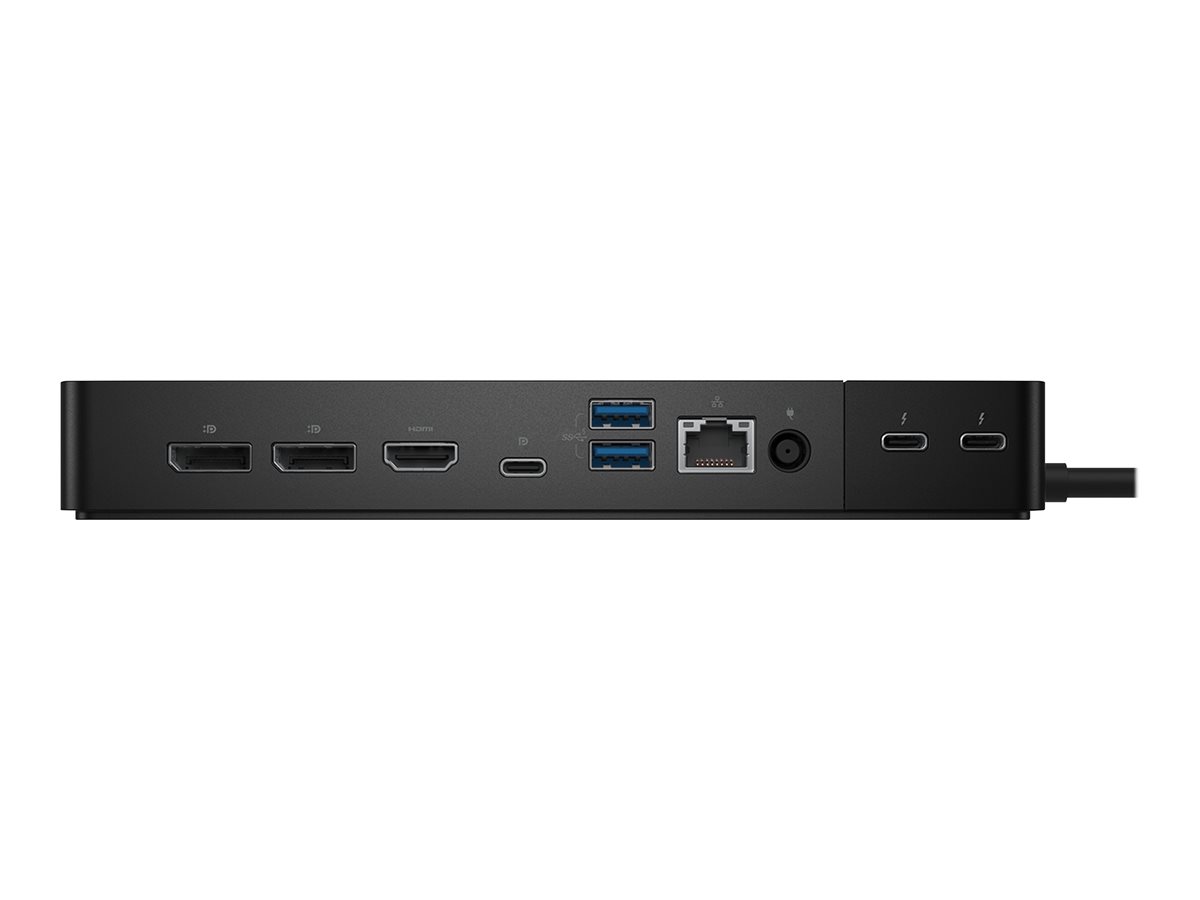

| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort (1.4) ¦ 1 x display / video - HDMI - 19 pin HDMI 2.0 ¦ 1 x USB-C 3.2 Gen 2/DisplayPort 1.4 ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x network - Ethernet 1000 - RJ-45 ¦ 1 x USB 3.2 Gen 1 with PowerShare ¦ 2 x Thunderbolt 4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), 130W power delivery to Dell systems, 90W power delivery to non-Dell systems |
| Security Slot Type | Noble Wedge security slot / Kensington security slot |
| Compliant Standards | DisplayPort 1.4 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Video | |
| Max Resolution Details | 5K - 60 Hz (Single Display) ¦ 4K - 60 Hz (Quad Display) |
| System Requirements | |
| OS Required | Windows 10, Windows 11, Ubuntu 20.04 or later |
