UPS (rack-mountable) - AC 120-208 V - 5400 Watt - 6000 VA - 1-phase - valve regulated lead-acid (VRLA) - output connectors: 18 - 6U - for P/N: BP180RT
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer and Maintenance Bypass - UPS - 5400 Watt - 6000 VA - VRLA |
| Device Type | UPS - rack-mountable |
| Rack Size | 6U |
| Weight | 206.11 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120-208 V |
| Output Voltage | AC 120-208 V |
| Power Capacity | 5400 Watt / 6000 VA |
| Input Connectors | 1 x power NEMA L6-30P, hardwire |

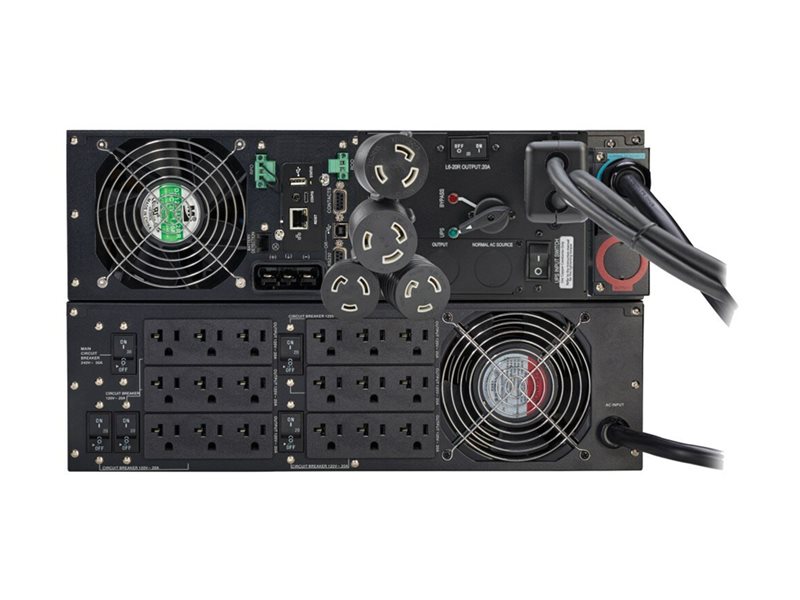

| Output connectors | 18 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R |
| Battery | Expandable valve regulated lead-acid (VRLA) |
| Batteries Qty | 4 |

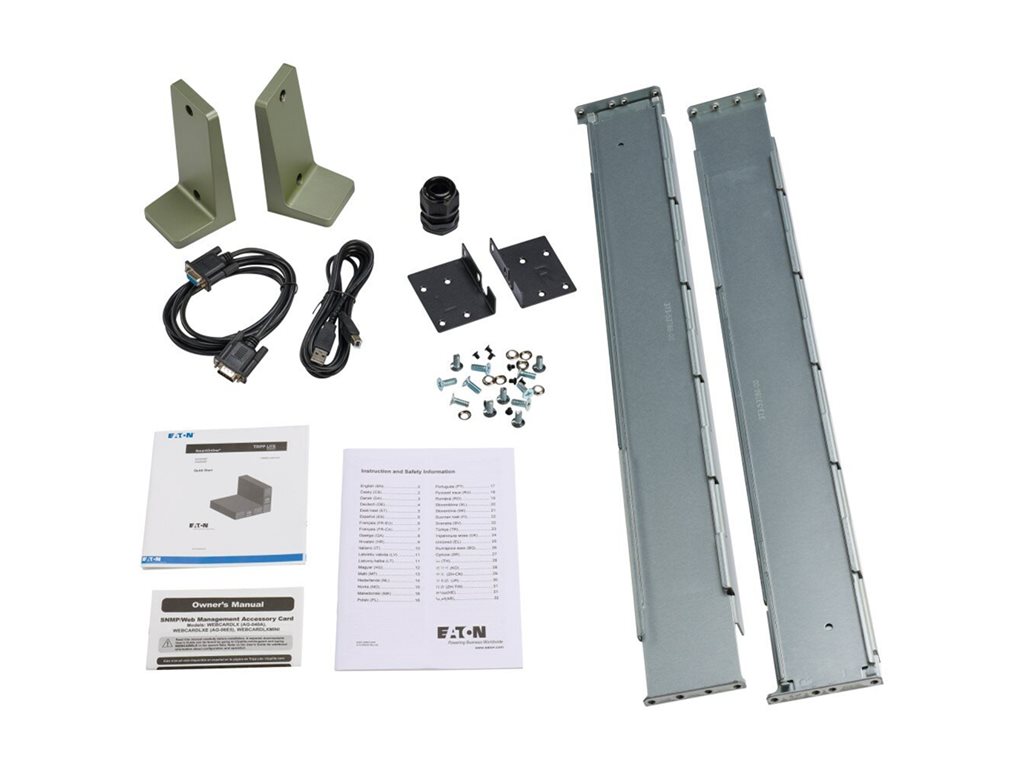

| Included Accessories | SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware, UPS and transformer rack-mounting hardware (2x 9RK), step-down transformer |
| Dimensions (WxDxH) | 17.3 in x 34 in x 10.2 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: BP180RT |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 6U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware, UPS and transformer rack-mounting hardware (2x 9RK), step-down transformer |
| Cables Included | Power cable (NEMA L6-30P) 10 ft |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Surge protection, double conversion, internal bypass, LCD display, VRLA battery support, audible alarm, fault alarm, low battery alarm, overload alarm, LED indicators, integrated network management, cold-start function, Remote Emergency Power Off (REPO), energy saving green topology |
| Compliant Standards | NOM, cUL Listed, IEC/EN 62040-2, RoHS, Energy Star, FCC Class A certified, FCC |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Battery | |
| Type | Expandable |
| Quantity | 4 |
| Technology | Valve regulated lead-acid (VRLA) |
| Voltage Provided | AC 120/208 V |
| Features | Sealed |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120-208 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P, hardwire |
| Power Output Connectors Details | 18 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R |
| Output Voltage | AC 120-208 V 50/60 Hz |
| Max Electric Current | 24.8 A |
| Power Capacity | 5400 Watt / 6000 VA |
| Output Waveform | Sinewave |
| Efficiency | 93% |
| Power Factor (PF) | 0.9 |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 34 in |
| Height | 10.2 in |
| Weight | 206.11 lbs |
| Compatibility Information | |
| Designed For | P/N: BP180RT |
| Sustainability Information | |
| ENERGY STAR | Yes |
