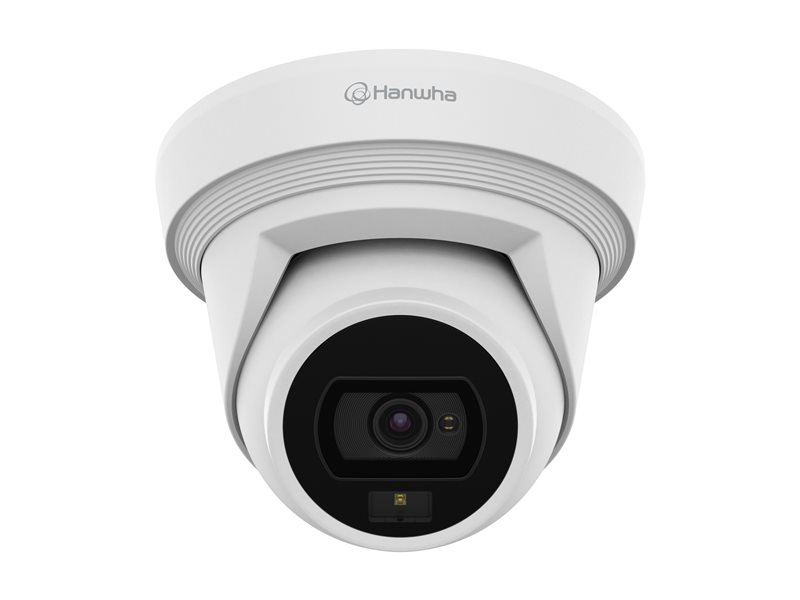

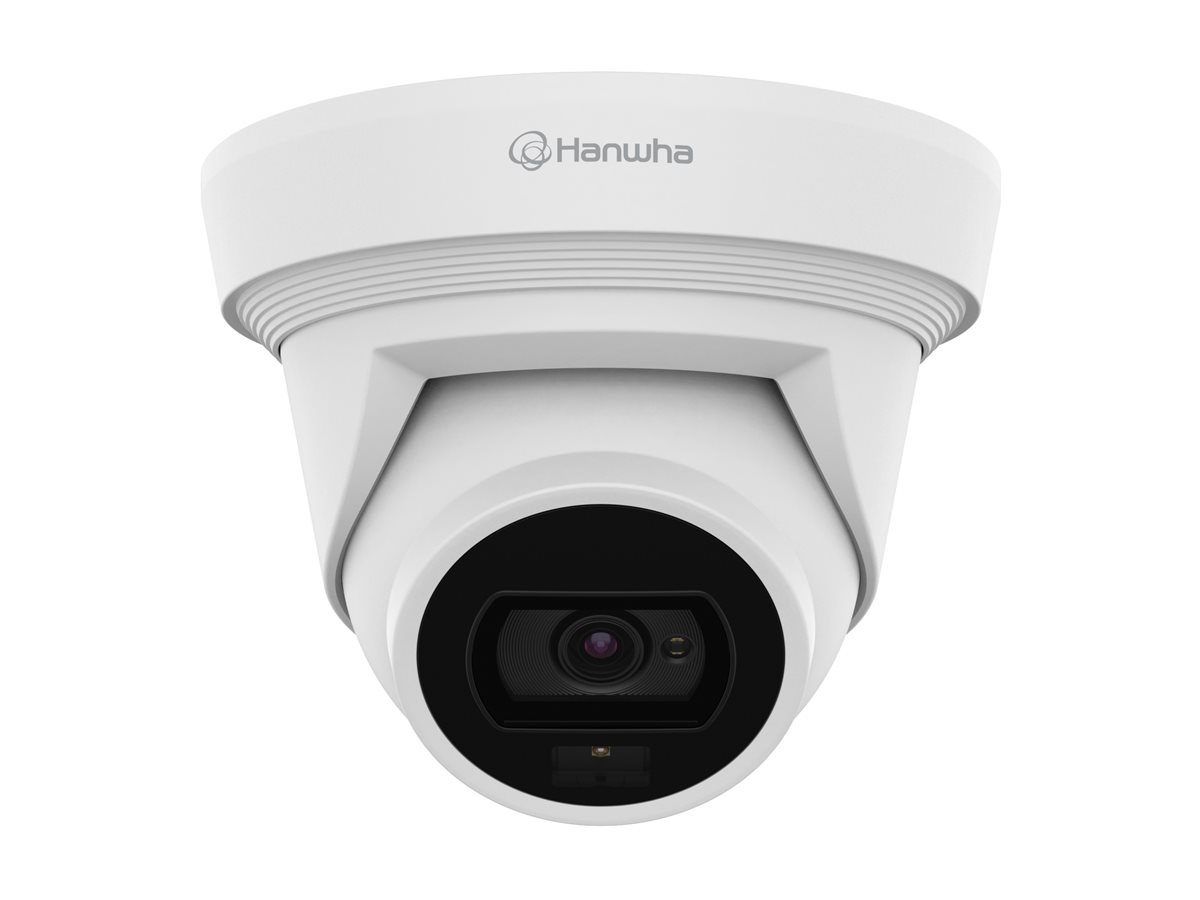

Network surveillance camera - dome - color (Day&Night) - 8 MP - 3840 x 2160 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision QNE-C9013RL - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome |
| Dimensions (WxDxH) | 5.5 in x 5.5 in x 3.9 in |
| Weight | 27.86 oz |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 8 MP |
| Minimum Illumination | 0.034 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on ¦ 0.0034 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec |
| Focal Length Control | Fixed focal |
| Focal Length | 3 mm |
| Lens Mounting | M12 mount |
| Focus Adjustment | (min distance 1.6 ft) |
| Lens Iris | F/1.6 - fixed iris |
| Panning Range (degree) | 0 to 350 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), built-in strobe light, image masking, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), auto flicker correction, image flip, image mirror, Hallway View, Object Detection, object classification, Person Detection, vehicle type classification, Virtual Line detection, appearing / disappearing detection, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, IP address filtering, user access log, 802.1x authentication, queue management, Heat Map, network disconnection trigger, alarm function, notification picture to FTP, notification picture to E-mail, NAS alerts, Handover, strobe light alarm, WiseStream III support, WiseNR II, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, digest authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, brute force delay protection |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 95% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.5 in |
| Depth | 5.5 in |
| Height | 3.9 in |
| Weight | 27.86 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, IEEE 802.3af Class 3, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, EN 62676-4, NDAA |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Class 3 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.034 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on ¦ 0.0034 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), built-in strobe light, image masking, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), auto flicker correction, image flip, image mirror, Hallway View, Object Detection, object classification, Person Detection, vehicle type classification, Virtual Line detection, appearing / disappearing detection, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, IP address filtering, user access log, 802.1x authentication, queue management, Heat Map, network disconnection trigger, alarm function, notification picture to FTP, notification picture to E-mail, NAS alerts, Handover, strobe light alarm, WiseStream III support, WiseNR II, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, digest authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, brute force delay protection |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 3 mm |
| Lens Iris | F/1.6 fixed iris |
| Min Focus Distance | 1.6 ft |
| Horizontal Field of View (degree) | 108 |
| Vertical Field of View (degree) | 59 |
| Diagonal Field of View (degree) | 127 |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, LLDP, SRTP, MQTT, Bonjour, EAP |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 75 |
