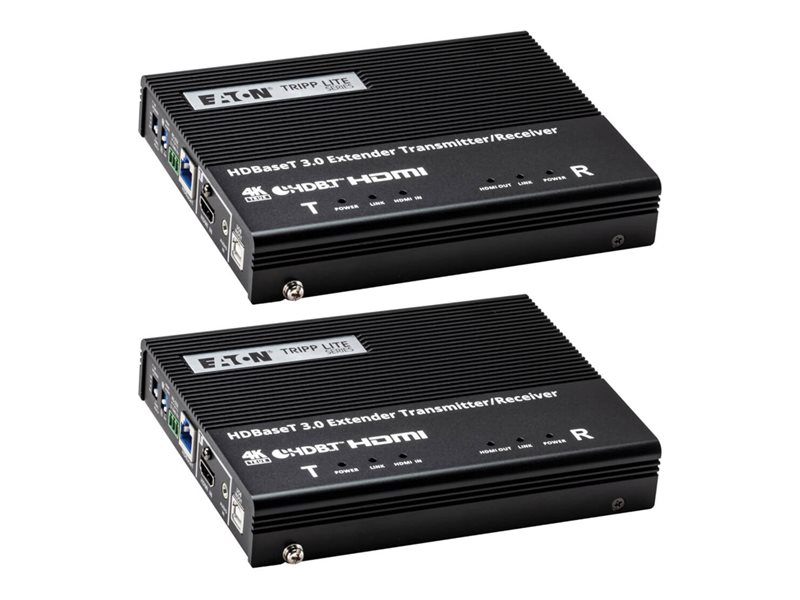

Video/audio/infrared/USB/serial/network extender - HDBaseT 3.0 - over CAT 6/6a - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series HDBaseT 3.0 Transmitter and Receiver Kit, HDMI 4K 60 Hz (4:4:4), RS-232, IR Control, Up to 328 ft. (100 m), TAA - video/audio/infrared/USB/serial/network extender - HDBaseT 3.0 - TAA Compliant |
| Device Type | Video/audio/infrared/USB/serial/network extender |
| Form Factor | Desktop / wall mountable |
| Data Transfer Rate | 300 Mbps |
| Data Link Protocol | HDBaseT 3.0 |
| Transmission Medium | CAT 6/6a |
| Max Transfer Distance | 328 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 6.5 in x 5.1 in x 1.1 in |
| Weight | 22.57 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: N223-01K-BL |
| General | |
| Device Type | Video/audio/infrared/USB/serial/network extender |
| Form Factor | Desktop / wall mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x RS-232 - terminal block ¦ 1 x USB 2.0 (host) - Type B ¦ 1 x audio line-in - mini jack ¦ 1 x USB - Type A ¦ 1 x audio line-out - mini jack ¦ 1 x Ethernet 10/100 - RJ-45 ¦ 1 x IR input - mini jack female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

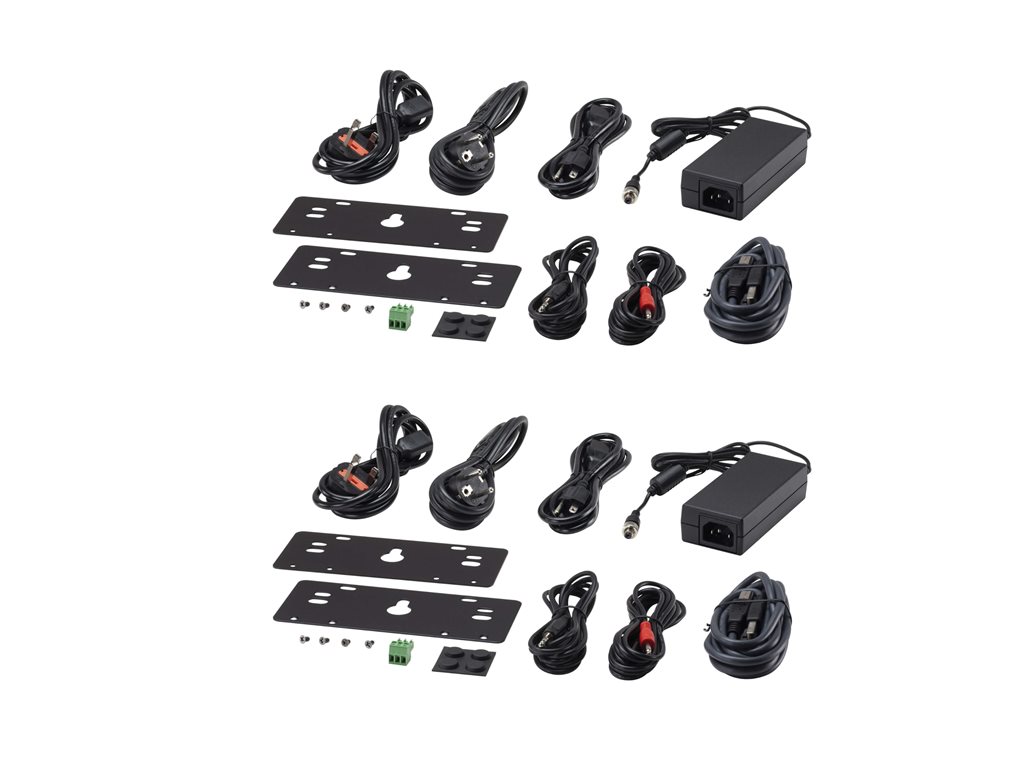

| Included Accessories | 2 RS-232 terminal block connectors, 4 wall mount brackets, 8 foot pads, 2 USB-B to USB-A cable, 2 power cords (C13 to NEMA 5-15P), 2 power cord (C13 to BS1363), 2 power cord (C13 to Schuko), 2 x IR sensors, 2 IR receivers, wall mounting kit |
| Compliant Standards | CCC, cUL, GS, Mexico NOM, RoHS, TUV, UL, WEEE, Plug and Play |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 3.0 |
| Data Transfer Rate | 300 Mbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Link, power, video, HDMI input, HDMI output |
| Features | Metal housing, HDBaseT 3.0 technology, CEC passthrough, 3D support, 4K resolution support, 36-bit Deep Color support, 4:4:4 chroma subsampling support, HDR support |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 6.45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 5.1 in |
| Height | 1.1 in |
| Weight | 22.57 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12 in |
| Shipping Depth | 8.3 in |
| Shipping Height | 3.9 in |
| Shipping Weight | 4.41 lbs |
| Compatibility Information | |
| Designed For | P/N: N223-01K-BL |
