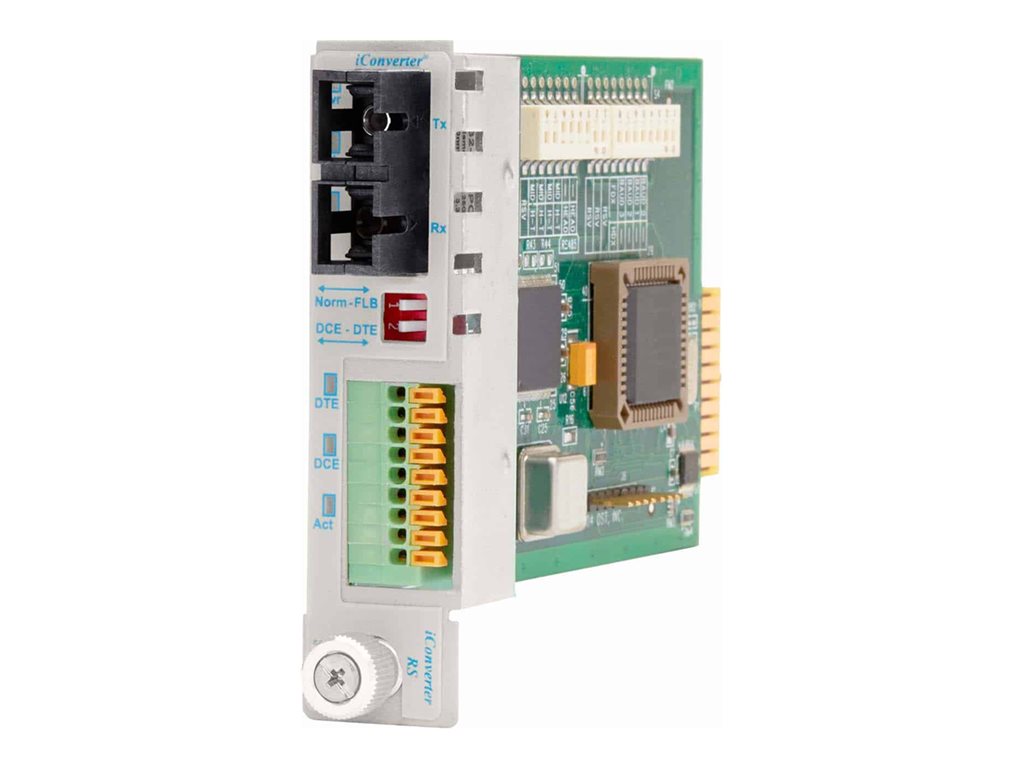

Media converter - RS-232 - serial RS-232 - SC multi-mode / terminal block - up to 1.2 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter - media converter - RS-232 - TAA Compliant |
| Device Type | Media converter - SC multi-mode / terminal block |
| Form Factor | Plug-in module |
| Cabling Type | Serial RS-232 |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | RS-232 |
| Remote Management Protocol | SNMP |
| Max Transfer Distance | 1.2 miles |
| Dimensions (WxDxH) | 0.9 in x 4.5 in x 2.8 in |
| Weight | 8 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x network - SC multi-mode female x 2 ¦ 1 x - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 850,000 hours |
| Compliant Standards | UL, cUL, UKCA, FCC Class A certified, BAA, NDAA, RoHS, REACH, WEEE |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Serial RS-232 |
| Data Link Protocol | RS-232 |
| Optical Wave Length | 1310 nm |
| Remote Management Protocol | SNMP |
| Max Transfer Distance | 1.2 miles |
| Features | Managed |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 4.5 in |
| Height | 2.8 in |
| Weight | 8 oz |
