Intel Core Ultra 9 - 185H / up to 5.1 GHz - Win 11 Pro - GeForce RTX 4090 - 32 GB RAM - 1 TB SSD NVMe, Performance - 16" OLED 2560 x 1600 (WQXGA) @ 240 Hz - Wi-Fi 6E, Bluetooth - platinum white
| Main Specifications | |
|---|---|
| Product Description | ASUS ROG Zephyrus G16 GU605MY-XS96 - 16" - Intel Core Ultra 9 - 185H - 32 GB RAM - 1 TB SSD |
| Product Type | Notebook |
| Operating System | Win 11 Pro |
| Processor | Intel Core Ultra 9 (Series 1) - 185H / 2.3 GHz, up to 5.1 GHz / 24 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Memory | 32 GB LPDDR5X SDRAM (2 x 16 GB (soldered)) |
| Storage | 1 TB SSD - NVMe, Performance |
| Display | 16" OLED 2560 x 1600 / WQXGA @ 240 Hz |
| Graphics | NVIDIA GeForce RTX 4090 / Intel Iris Xe Graphics |
| Video Memory | 16 GB GDDR6 SDRAM |
| Gaming | Yes |
| Keyboard Backlight | Yes (RGB) |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Battery | 4-cell |
| Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Color | Platinum white |
| Dimensions (WxDxH) | 13.9 in x 9.7 in x 0.7 in |
| Weight | 4.3 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Product Type | Notebook |
| Operating System | Windows 11 Pro |
| Memory | |
| RAM | 32 GB (2 x 16 GB (soldered)) |
| Max RAM Supported | 32 GB |
| Technology | LPDDR5X SDRAM |
| Speed | 7467 MHz |
| Rated Speed | 7467 MHz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Color | Platinum white |
| Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Features | ASUS Aura Sync technology, vapor chamber cooling system, ErgoLift, BIOS protection, Thermal Grizzly Hydronaut Thermal Compound, anti-dust 2.0 cooling system, AniMe Matrix lighting, ROG Intelligent Cooling, Arc Flow Fans, liquid metal grease, 0dB Ambient Cooling, Tri-Fan Technology |
| Included Accessories | Power adapter |
| Compliant Standards | TUV Rheinland Flicker Free Certification |
| Storage | |
| Main Storage | 1 TB SSD M.2 PCIe 4.0 - NVM Express (NVMe), Performance |
| Battery | |
| Technology | 4-cell lithium ion |
| Capacity | 90 Wh |
| Display | |
| Type | 16" OLED |
| Resolution | 2560 x 1600 (WQXGA) |
| V-Sync Rate at Max Res. | 240 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 500 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Features | Glossy, NVIDIA G-SYNC compatible, Adaptive-Sync technology, HDR (high dynamic range), Pantone Validated, HDR 500 True Black, Dolby Vision, 0.2 ms response rate, VESA DisplayHDR, Delta E?1 color accuracy |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 13.9 in x 9.7 in x 0.7 in |
| Weight | 4.3 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 9 (Series 1) 185H / 2.3 GHz |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 16-core |
| Cache | 24 MB |
| Features | Intel Smart Cache |
| Audio & Video | |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA GeForce RTX 4090 / Intel Iris Xe Graphics |
| Video Memory | 16 GB GDDR6 SDRAM |
| Video System Features | Dynamic Boost, MUX Switch, NVIDIA Advanced Optimus, NVIDIA Studio |
| Gaming | Yes |
| Camera | Yes - 1080p |
| Camera Features | IR camera, Windows Hello |
| Sound | Two tweeters, two woofers, 3-microphone array |
| Compliant Standards | Dolby Atmos |
| Audio Features | Output: Smart Amplification technology, Hi-Res Audio; Input: AI noise cancelling |
| Input | |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes (RGB) |
| Features | Chiclet keyboard, 1 RGB zone, 1.7mm travel distance |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 240 watt, 20 V, 12 A |
| Connections & Expansion | |

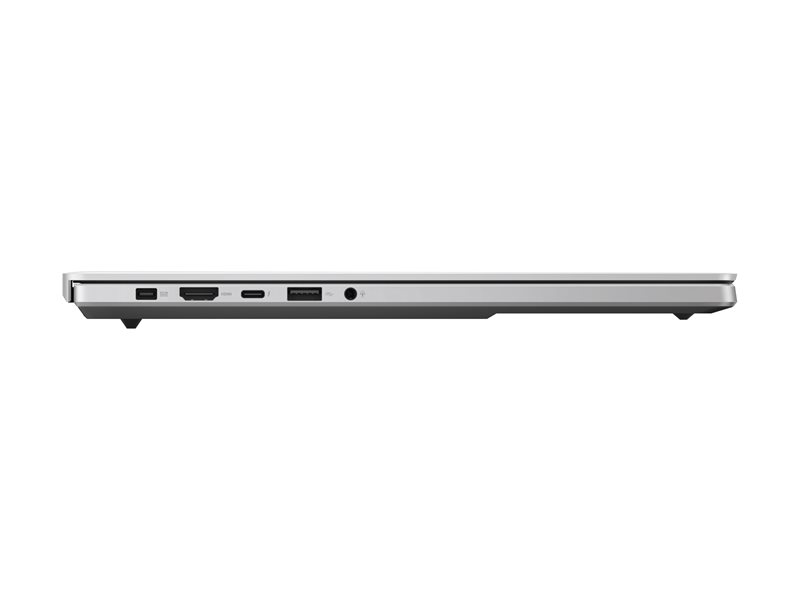

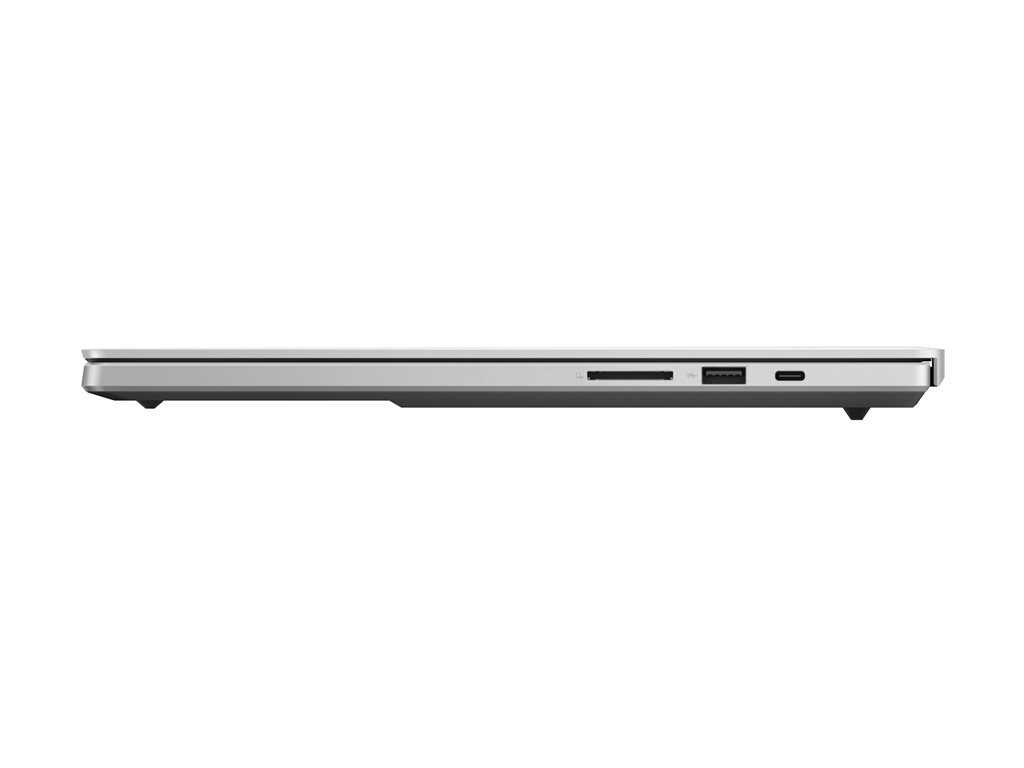

| Interfaces Details | Headphone/microphone combo jack ¦ HDMI ¦ 2 x USB 3.2 Gen 2 ¦ Thunderbolt 4 (supports DisplayPort) (Power Delivery) ¦ USB-C 3.2 Gen 2 (supports DisplayPort Alt Mode) (Power Delivery) |
| Memory Card Reader | Yes (SDXC UHS-II Card) |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
