Mini Core i7 12700T / up to 4.7 GHz - RAM 64 GB - SSD 512 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none
| Main Specifications | |
|---|---|

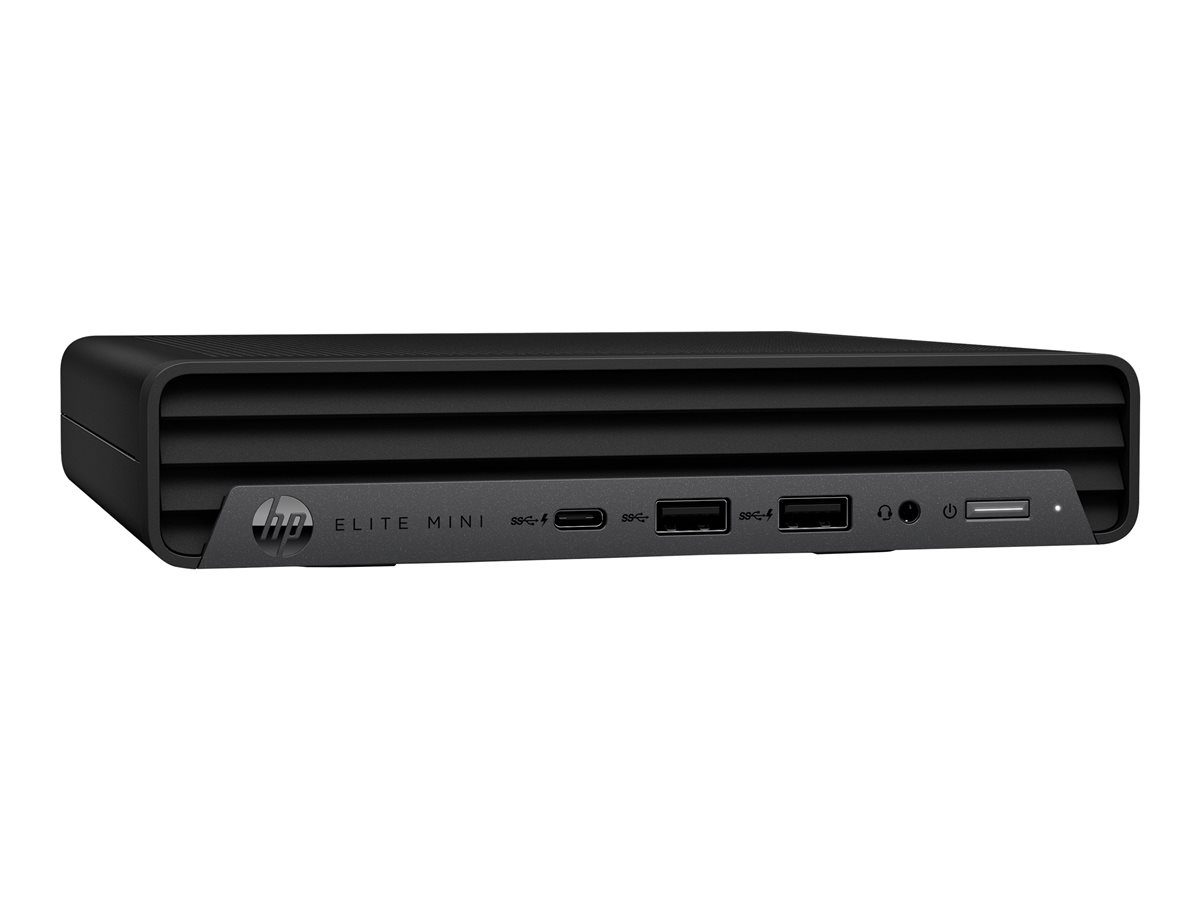

| Product Description | HP Elite 600 G9 - mini Core i7 12700T 1.4 GHz - 64 GB - SSD 512 GB |
| Type | Personal computer - mini |
| Localization | Language: English / region: United States |
| Processor | Intel Core i7 (12th Gen) 12700T / 1.4 GHz (up to 4.7 GHz, (12-core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Smart Cache |
| Cache Memory | 25 MB L3 cache |
| Cache Per Processor | 25 MB |
| RAM | 64 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA/NVMe (SATA-600 / NVMe) |
| Hard Drive | SSD 512 GB - PCI Express 4.0 - M.2 2280 - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan, HP Sure Start Gen7, HP Driver Packs (free download) |
| Dimensions (WxDxH) | 7 in x 6.9 in x 1.3 in |
| Weight | 3.13 lbs |
| Environmental Standards | TCO Certified Desktops 9 |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode (for wireless module)) ¦ 2 (total) / 0 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage)) |
| Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 5 x USB 3.2 Gen 2 (2 front, 3 rear) (two of them with wake functionality, one of them is charging) ¦ 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 2 x DisplayPort 1.4a ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 Gen 2 |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor, retractable padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, Japan PC Green Label, IEEE 1680.1, Taiwan Green Mark, Korea Eco-Label, CSA C22.2 No. 62368-1-14 |
| RAM | |
| Installed Size | 64 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 0 (empty) |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.3az |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 90 watt |
| Efficiency | 89% (230VAC), 88% (115VAC) |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 2 x SATA/NVMe |
| Controller Interface Type | SATA-600 / NVMe |
| Cache Memory | |
| Installed Size | L3 cache - 25 MB |
| Cache Per Processor | 25 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan, HP Sure Start Gen7, HP Driver Packs (free download) |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 6.9 in |
| Height | 1.3 in |
| Weight | 3.13 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.6 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 9.3 in |
| Shipping Weight | 6.5 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12700T |
| Clock Speed | 1.4 GHz (P-core) / 1 GHz (E-core) |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 12 MB |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Smart Cache |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
