Audio/video over IP decoder
| Main Specifications | |
|---|---|

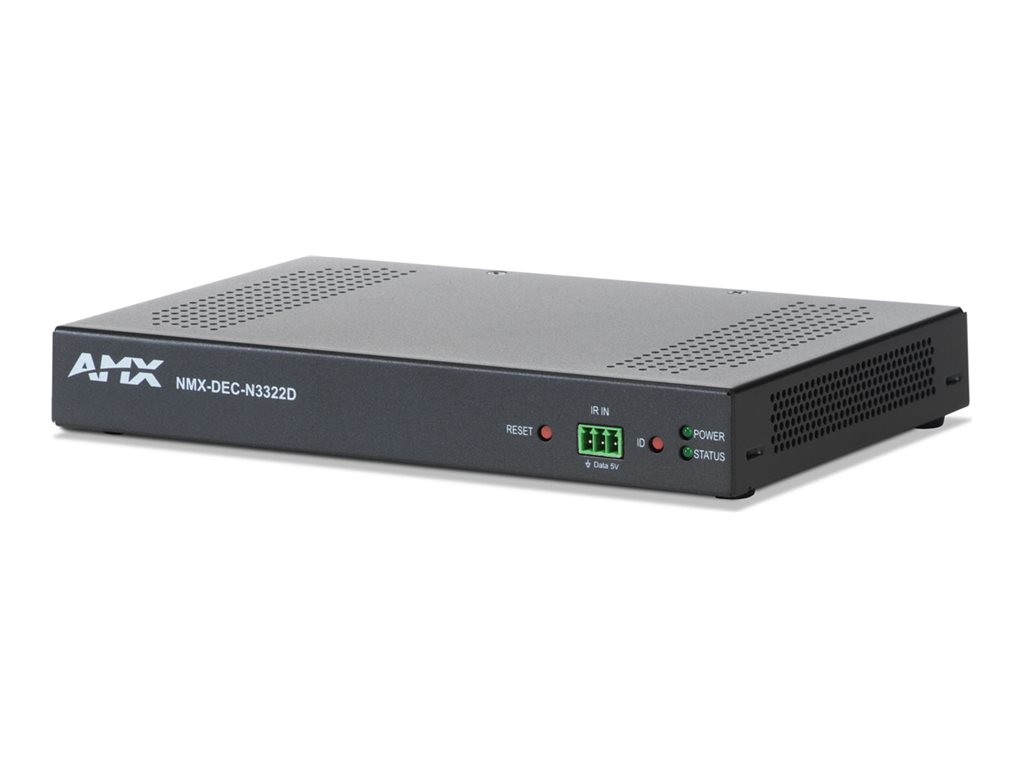

| Product Description | AMX SVSI NMX-DEC-N3322D audio/video over IP decoder |
| Type | Audio/video over IP decoder |
| Dimensions (WxDxH) | 5 in - 7.9 in - 1 in |
| Weight | 15.87 oz |
| General | |
| Type | Audio/video over IP decoder |
| Width | 5 in |
| Depth | 7.9 in |
| Height | 1 in |
| Weight | 15.87 oz |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.2 lbs |
| Terminals | |
| Terminals | (1) x network - RJ-45 - PoE ¦ (1) x network - RJ-45 ¦ (1) x infrared output - 2-pin terminal block ¦ (1) x serial - 3-pin terminal block - RS-232 ¦ (1) x balanced/unbalanced audio input - 5-pin terminal block ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x infrared input - 3-pin terminal block |
| Studio & Production Equipment | |
| Features | Dante audio encoding, web interface, POE+ support, HDCP 2.2 compliant, 4K60 4:4:4 signal support, Variable Bit Rate (VBR), Constant Bit Rate (CBR), RTP support, RTSP support, RTMP support, RTMPS support, SRTP support, DHCP support, EDID support, LED indicators |
