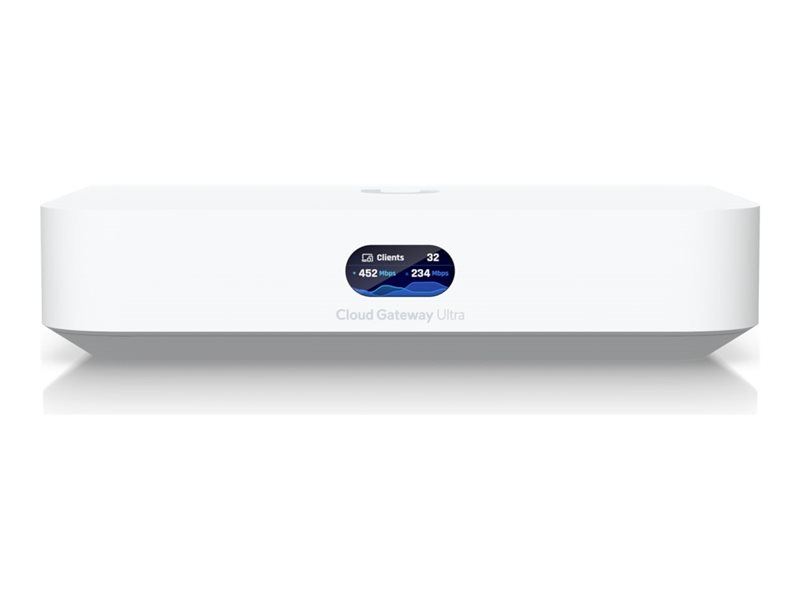

Gateway - 1GbE, 2.5GbE - cloud-managed - desktop
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti Ultra - gateway - cloud-managed |
| Device Type | Gateway |
| Form Factor | Desktop |
| Processor | 1 x ARM A53 - 1.5 GHz |
| RAM | 3 GB |
| Flash Memory | 16 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Performance | IDS/IPS throughput: 1 Gbps |
| Included Accessories | Power adapter |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 5.6 in x 5 in x 1.2 in |
| Weight | 18.34 oz |
| General | |
| Device Type | Gateway |
| Built-in Devices | 0.96-inch LCM display |
| Width | 5.6 in |
| Depth | 5 in |
| Height | 1.2 in |
| Weight | 18.34 oz |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 ¦ 1 x 1/2.5GBase-T - RJ-45 (WAN) ¦ 1 x USB (power only) - USB-C |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Compliant Standards | FCC, IC |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | IPv6, OpenVPN, IPSec, WireGuard |
| Cloud-Managed | Yes |
| Performance | IDS/IPS throughput: 1 Gbps |
| Status Indicators | Link/activity |
| Features | Polycarbonate enclosure, reset button, IGMP proxy, DHCP server, DHCP relay, policy-based WAN, VPN routing, OpenVPN client, OpenVPN server, L2TP VPN client, SD-WAN support, Multi-WAN Load Balance, full stateful firewall, content filtering, VLAN segmentation, country filtering, domain filter, ad filtering, application-aware firewall rules, outage reporting, Internet quality, QoS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 6.2 watt |
| Software / System Requirements | |
| Software Included | Ubiquiti UniFi Software |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM A53 1.5 GHz |
| RAM | 3 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
