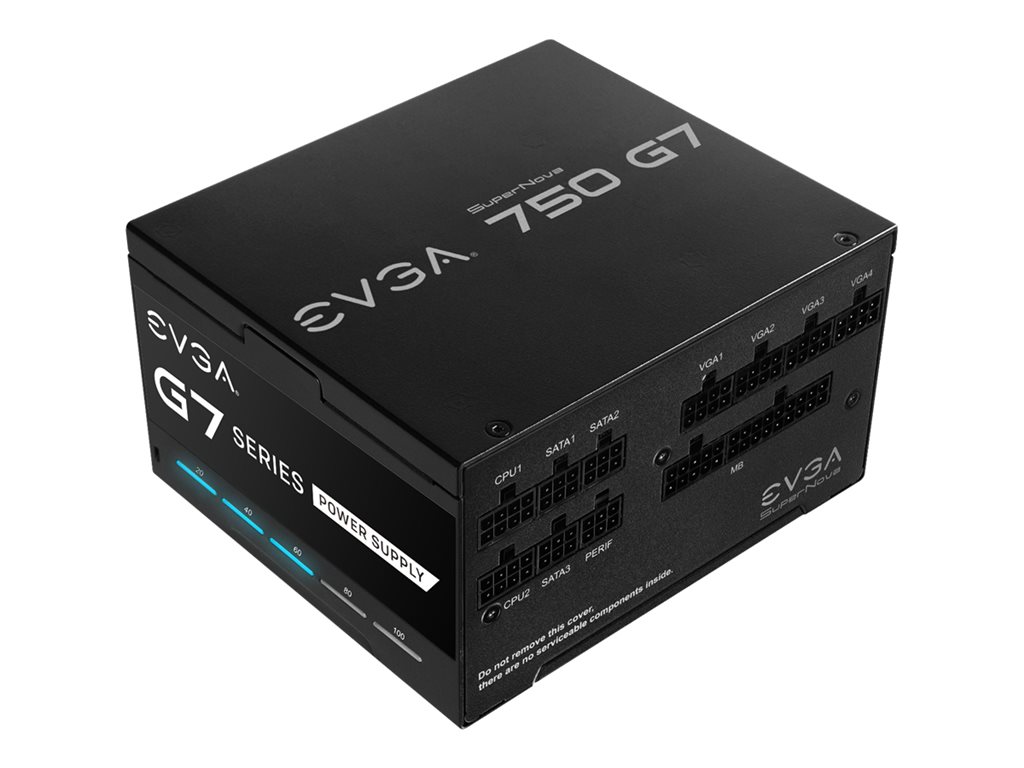

Power supply (internal) - ATX - 80 PLUS Gold - AC 100-240 V - 750 Watt
| Main Specifications | |
|---|---|
| Product Description | EVGA SuperNOVA 750 G7 - power supply - 750 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX |
| 80 PLUS Certification | 80 PLUS Gold |
| Weight | 6.9 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 62.5 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Modular Cable Management | Yes |
| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.1 in x 3.3 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Cables Included | ATX power cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 2.3 ft ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 2.3 ft ¦ 3 x power 15 pin SATA cable 1.8 ft ¦ 4 pin internal power cable 1.8 ft ¦ AC input cable - external - 5 ft ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 2.8 ft ¦ Power 15 pin SATA cable 2 ft ¦ Power 15 pin SATA cable 2.5 ft ¦ 4 pin internal power cable 2 ft ¦ 4 pin internal power cable 2.5 ft ¦ 4 pin internal power cable 2.8 ft |
| MTBF | 100,000 hour(s) |
| Cooling System | 120 mm fan |
| Features | Fully modular, EVGA ECO Intelligent Thermal Control System, fluid dynamic bearing cooling fan, Power-On Self-Test (POST), overvoltage protection, undervoltage protection, overcurrent protection, overpower protection, short-circuit protection, overheat protection, LLC Half Bridge Topology, DC-DC technology, load diagnostic LED |
| Compliant Standards | TUV, CB, FCC, RCM, cTUVus, WEEE, ErP Lot 3 2014 Ready, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 62.5 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |
| Efficiency | 92% (115VAC) / 92% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.1 in |
| Height | 3.3 in |
| Weight | 6.9 lbs |
