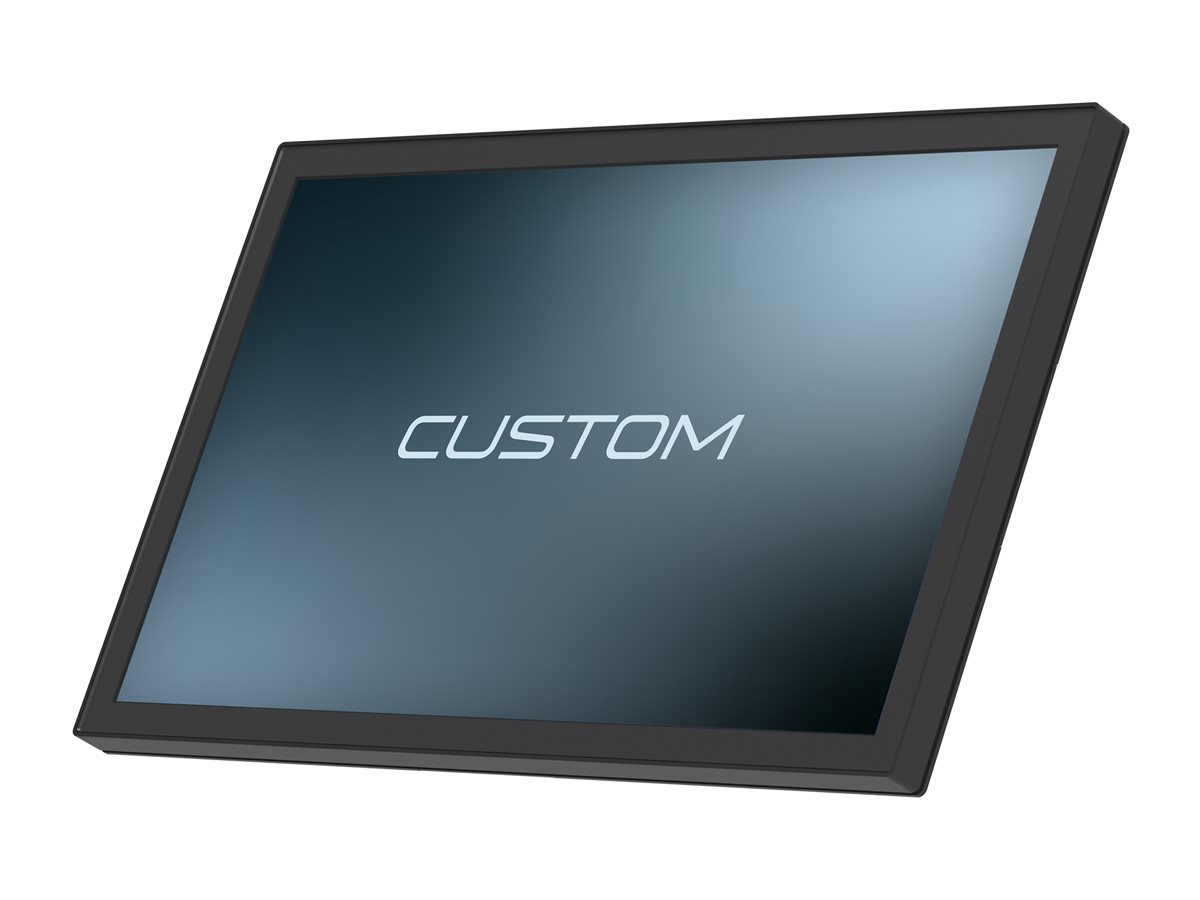

All-in-one 1 x Dragonwing SDA660 / up to 2.2 GHz - RAM 4 GB - flash - eMMC 64 GB - Android 12 - monitor: LCD 15.6" 1920 x 1080 (Full HD) touchscreen
| Main Specifications | |
|---|---|
| Product Description | Custom PEAK Standard - all-in-one Dragonwing SDA660 - 4 GB - flash 64 GB - LCD 15.6" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Qualcomm Dragonwing SDA660 (up to 2.2 GHz, |
| RAM | 4 GB LPDDR4 SDRAM |
| Hard Drive | Flash 64 GB - eMMC |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LCD - 1920 x 1080 (Full HD) - touchscreen |
| Networking | Bluetooth 4.1, 802.11a, Wi-Fi 5, 802.11b/g/n |
| OS Provided | Android 12 |
| Dimensions (WxDxH) | 14.6 in x 1.7 in x 9.3 in |
| Weight | 6.61 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Built-in Devices | 3W speaker |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A ¦ 1 x USB-C 3.0 - Type C (data only) ¦ 4 x USB 2.0 - micro-USB ¦ 2 x serial (RS-232) - DB-9 (powered) ¦ 1 x LAN - RJ-45 ¦ 1 x - RJ-11 ¦ 1 x FeDP ¦ 1 x - 4 pin |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | FCC Class A certified, LVD |
| RAM | |
| Installed Size | 4 GB |
| Technology | LPDDR4 SDRAM |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Bluetooth 4.1, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | |
| Device Type | Power supply |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes (multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Brightness | 300 cd/m² |
| Monitor Features | True Flat Projected Capacitive Touch |
| Operating System / Software | |
| OS Provided | Android 12 |
| Hard Drive | |
| Type | Flash - eMMC |
| Capacity | 1 x 64 GB |
| Dimensions & Weight | |
| Width | 14.6 in |
| Depth | 1.7 in |
| Height | 9.3 in |
| Weight | 6.61 lbs |
| Processor / Chipset | |
| CPU | Qualcomm Dragonwing SDA660 |
| Max Turbo Speed | 2.2 GHz |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
