Evaluation Kit - audio/video over IP encoder
| Main Specifications | |
|---|---|

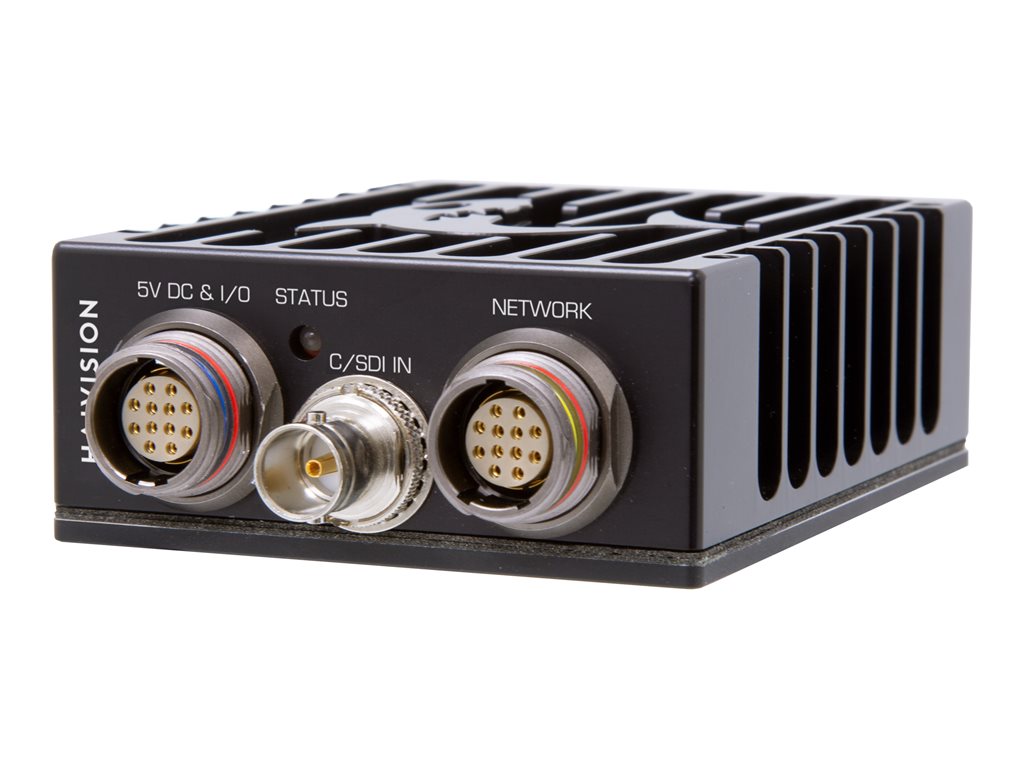

| Product Description | Haivision Makito X1 v2 - Evaluation Kit audio/video over IP encoder |
| Type | Audio/video over IP encoder |
| Supported Video Standards | NTSC, PAL |
| Dimensions (WxDxH) | 2.9 in - 3.6 in - 1.3 in |
| Weight | 8.96 oz |
| General | |
| Type | Audio/video over IP encoder |
| Width | 2.9 in |
| Depth | 3.6 in |
| Height | 1.3 in |
| Weight | 8.96 oz |
| Power | |
| Low Voltage Power | DC 5 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 100% (condensing) |
| Kit Content | |
| Kit Content | (1) x video/audio encoder ¦ (1) x power supply ¦ (1) x cable kit |
| Terminals | |
| Terminals | (1) x 12G-SDI input - BNC ¦ (1) x I/O - 12 pin Lemo ¦ (1) x network - 12 pin Lemo - Gigabit Ethernet |
| Studio & Production Equipment | |
| Supported Video Standards | NTSC, PAL |
| Features | HEVC codec support, H.265 codec support, rugged, H.264 codec support, SRT video transport protocol support, unicast support, multicast support, UDP support, RTP support, AES encryption, ONVIF protocol support |
