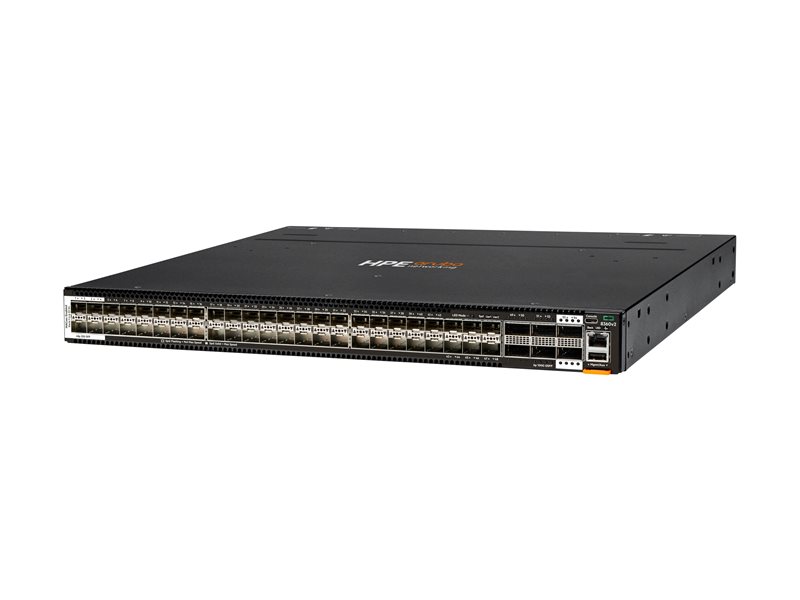

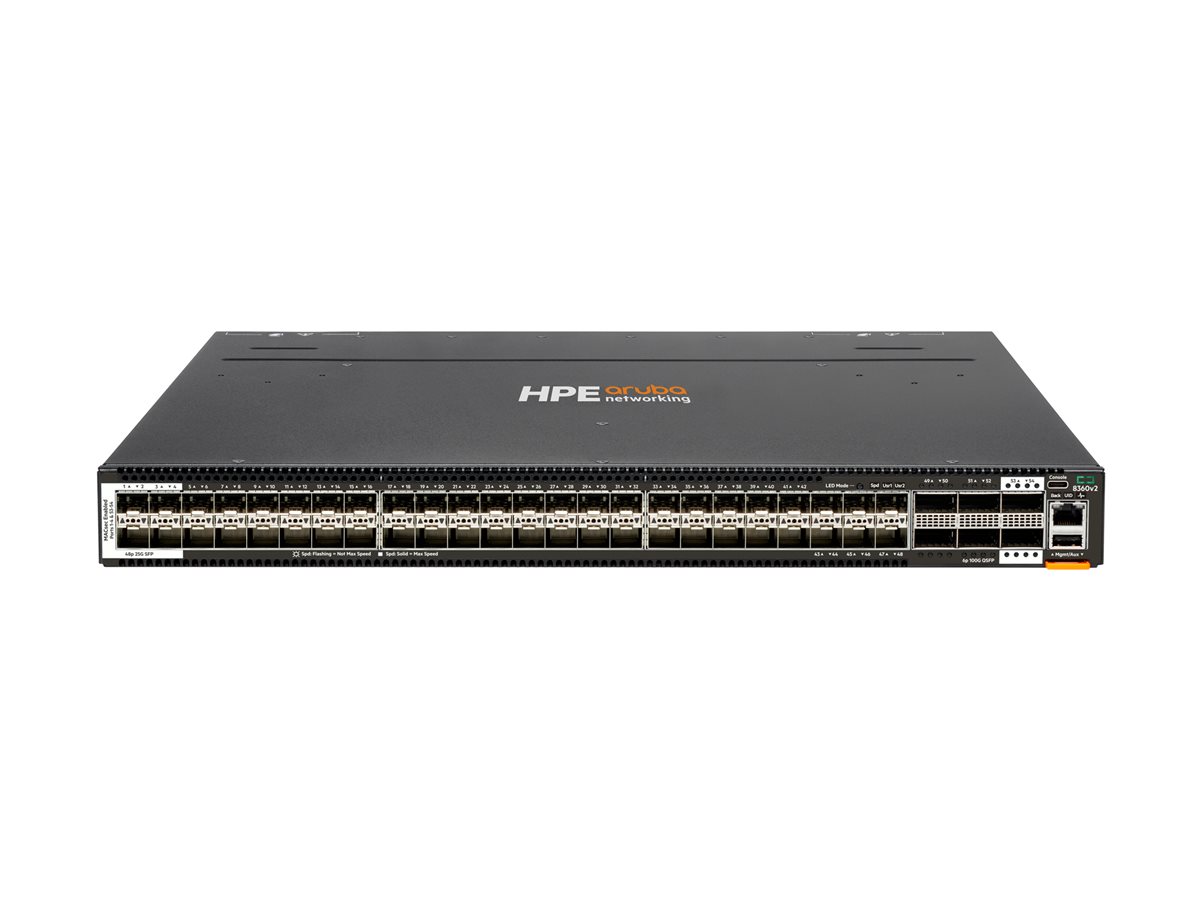

Switch - L3 - managed - 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28 - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba CX 8360-48Y6C v2 - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28 |
| Performance | Switching capacity: 4.8 Tbps ¦ Switching capacity: 2.678 Mpps |
| Capacity | MAC addresses: 212992 ¦ IPv4 host table capacity: 145780 ¦ IPv6 host table capacity: 145780 ¦ IPv4 routes (Unicast): 606977 ¦ IPv6 routes (Unicast): 630784 ¦ IPv4 ACL entries (ingress): 65536 ¦ IPv6 ACL entries (ingress): 16384 ¦ MAC ACL entries (ingress): 65536 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 ¦ VLANs supported: 4094 ¦ IGMP groups: 7000 ¦ MLD groups: 7000 ¦ IPv4 routes (Multicast): 7000 ¦ IPv6 routes (Multicast): 7000 |
| Jumbo Frame Support | 9KB |
| Routing Protocol | BGP, BGP-4, CIDR, IGMP, IGMPv3, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, PIM-SM, VRRP, PIM-DM, RIP-2, RIPng, BGP-MP, policy-based routing (PBR), static IPv6 routing, GRE, IGMPv2, MSDP |
| Remote Management Protocol | SSH, SSH 6, ICMP, SNMP 1, SNMP 2, SNMP 3, TFTP, RMON, SFTP |
| Features | 32MB packet buffer, DDoS Protection, MACsec support, BOOTP support, DHCP support, flow control, ICMP IRDP, Link Aggregation, MSTP support, RSTP support, SNMP trap, VLAN support, IPv6 multicasting, IPv6 support, VRRP support, IP forwarding support, NDP, Syslog support, ARP support, BFD, IGMP snooping, IPv6 addressing, MLD snooping, TCP support, UDP support, hot swappable 5 fans, High Availability, Aruba VSF, Cisco IPSLA, DCB, DWRR, ERPS, ECN, Loopback, packet storm protection, QoS, RoCE v2, sFlow, SP, UDLD, VSX, BGP, BPDU, DHCP relay, DHCP server, DNS support, dual firmware images, EVPN, load balancing, NTP, port mirroring, RPVST+, STP support, VXLAN, IPv4 and IPv6 dual stack, ECMP, Private VLAN, fast leave |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z |
| Power | AC 100-240 V (47 - 63 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 22 in x 1.7 in |
| Weight | 23.66 lbs |
| Localization | English / Denmark |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28 |
| Performance | Switching capacity: 4.8 Tbps ¦ Switching capacity: 2.678 Mpps |
| Capacity | MAC addresses: 212992 ¦ IPv4 host table capacity: 145780 ¦ IPv6 host table capacity: 145780 ¦ IPv4 routes (Unicast): 606977 ¦ IPv6 routes (Unicast): 630784 ¦ IPv4 ACL entries (ingress): 65536 ¦ IPv6 ACL entries (ingress): 16384 ¦ MAC ACL entries (ingress): 65536 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 ¦ VLANs supported: 4094 ¦ IGMP groups: 7000 ¦ MLD groups: 7000 ¦ IPv4 routes (Multicast): 7000 ¦ IPv6 routes (Multicast): 7000 |
| Jumbo Frame Support | 9KB |
| Routing Protocol | BGP, BGP-4, CIDR, IGMP, IGMPv3, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, PIM-SM, VRRP, PIM-DM, RIP-2, RIPng, BGP-MP, policy-based routing (PBR), static IPv6 routing, GRE, IGMPv2, MSDP |
| Remote Management Protocol | SSH, SSH 6, ICMP, SNMP 1, SNMP 2, SNMP 3, TFTP, RMON, SFTP |
| Encryption Algorithm | 256-bit AES, 128-bit AES |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, RADSEC, Secure Shell v.2 (SSH2) |
| Features | 32MB packet buffer, DDoS Protection, MACsec support, BOOTP support, DHCP support, flow control, ICMP IRDP, Link Aggregation, MSTP support, RSTP support, SNMP trap, VLAN support, IPv6 multicasting, IPv6 support, VRRP support, IP forwarding support, NDP, Syslog support, ARP support, BFD, IGMP snooping, IPv6 addressing, MLD snooping, TCP support, UDP support, hot swappable 5 fans, High Availability, Aruba VSF, Cisco IPSLA, DCB, DWRR, ERPS, ECN, Loopback, packet storm protection, QoS, RoCE v2, sFlow, SP, UDLD, VSX, BGP, BPDU, DHCP relay, DHCP server, DNS support, dual firmware images, EVPN, load balancing, NTP, port mirroring, RPVST+, STP support, VXLAN, IPv4 and IPv6 dual stack, ECMP, Private VLAN, fast leave |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z |
| Processor | 1: 1.8 GHz |
| RAM | 16 GB |
| Flash Memory | 32 GB |
| Status Indicators | Port transmission speed |
| Expansion / Connectivity | |
| Interfaces | 44 x 1/10/25Gbit LAN SFP/SFP+/SFP28 ¦ 4 x 10/25Gbit LAN SFP28/SFP+ with MACsec ¦ 4 x 40/100Gbit LAN QSFP28/QSFP+ ¦ 2 x 40/100Gbit LAN QSFP28/QSFP+ with MACsec ¦ 1 x management (LAN) RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1:2014 Second Edition, UL 60950-1, CSA 22.2 No. 60950-1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 62368-1: 2014, EN 55024:2010, CISPR 24, EN 55032:2015, CISPR 32 Class A, EN 55035:2017, CISPR 35, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, ICES-003 Class A, VCCI Class A, CNS 13438, CNS 13438 Class A, EN 60825-1:2014, IEC 60825-1:2014, Laser Class 1 |
| Localization | English / Denmark |
| Power | |

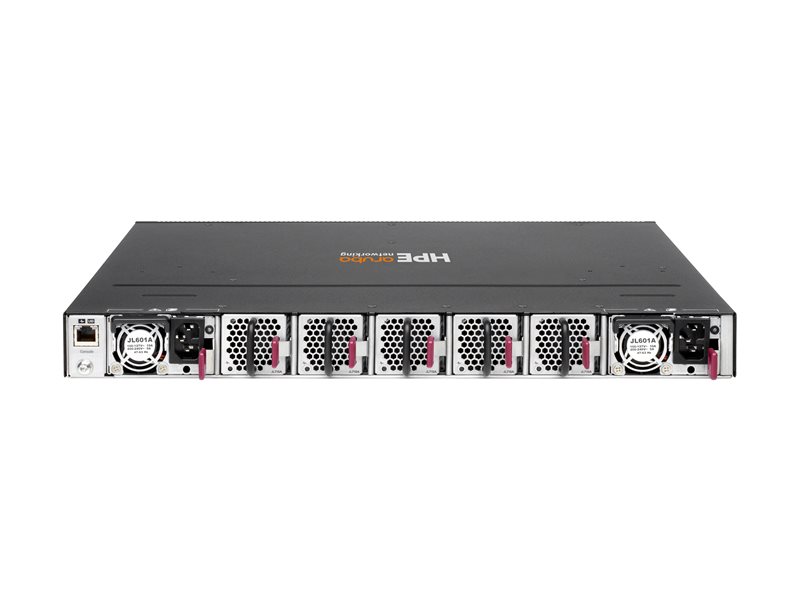

| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (47 - 63 Hz) |
| Software / System Requirements | |
| Software Included | ArubaOS-CX |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 22 in |
| Height | 1.7 in |
| Weight | 23.66 lbs |
