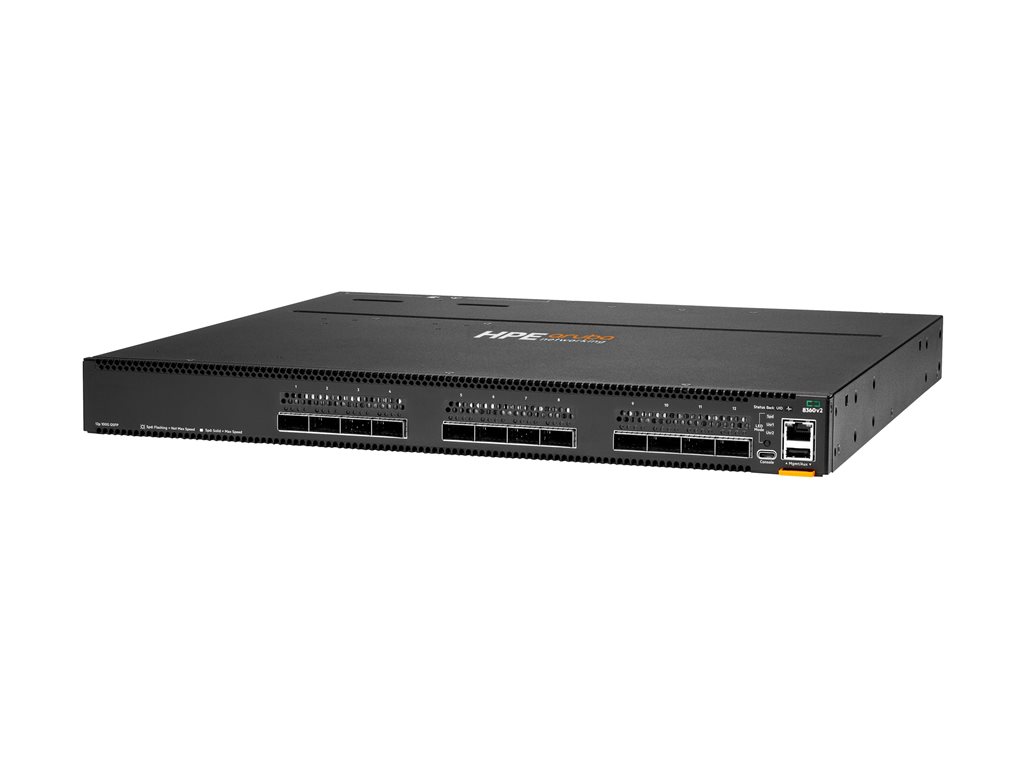

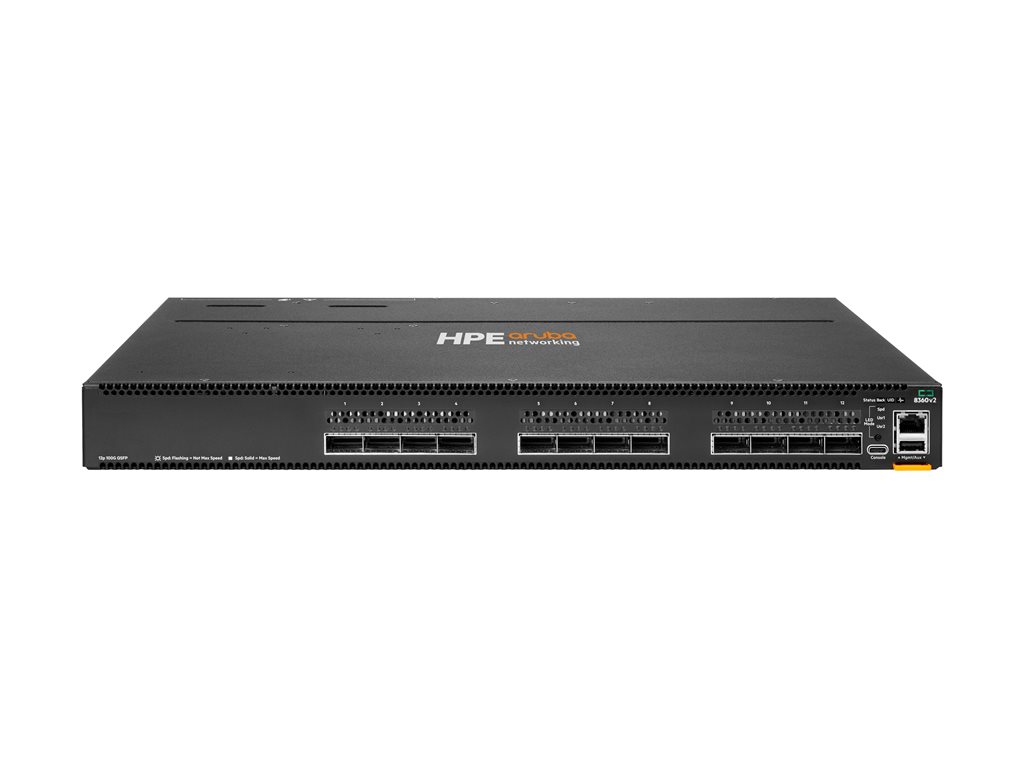

Switch - L3 - managed - 12 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ - back to front airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba CX 8360-12C V2 - switch - 12 ports - managed - rack-mountable |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 12 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ |
| Performance | Switching capacity: 2.4 Tbps ¦ Throughput: 2.678 Mpps |
| Capacity | IPv6 host table capacity: 145780 ¦ IPv4 host table capacity: 145780 ¦ IPv4 routes (Unicast): 606977 ¦ IPv6 routes (Unicast): 630784 ¦ IPv4 ACL entries (ingress): 65536 ¦ IPv6 ACL entries (ingress): 16384 ¦ MAC ACL entries (ingress): 65536 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 ¦ VLANs supported: 4094 ¦ IGMP groups: 7000 ¦ MLD groups: 7000 ¦ IPv4 routes (Multicast): 7000 ¦ IPv6 routes (Multicast): 7000 |
| MAC Address Table Size | 212992 entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, static IPv6 routing, static IPv4 routing, RIP-2, RIPng, OSPFv3, BGP-4, policy-based routing (PBR), ECMP, GRE, MPLS, IGMP, MLD, BGP-MP, static IP routing, MLDv2, EGP, IGMPv2, IGMPv3, VRRP, PIM-SM, MSTP, RSTP, STP |
| Remote Management Protocol | RSTP, ICMP, IPv4, IPv6, SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP, SSH, SSH-2, CLI, NTP |
| Features | 32MB packet buffer, IPv4 support, IPv6 support, manageable, ACL support, VLAN support, Multicast routing, LACP, flow control, Link Aggregation, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), UDP, IP-routing, ICMP, ARP support, congestion control, broadcast mode, DHCP support, port mirroring, sFlow, STP support, RSTP support, QoS, Jumbo Frames support, UDLD, fan tray, redundant hot swappable fans, packet storm protection, SP, DWRR, DCB, ECN, VSX, BFD, ERPS, Loopback, VTEP support, PIM, IGMP snooping, MLD snooping, Rapid PVST+, Cisco IPSLA, BPDU, MACsec support, MSDP, fast leave, VXLAN |
| Compliant Standards | IEEE 802.1t, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ae, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D |
| Power | AC 90-264 V (47 - 63 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 16 in x 1.7 in |
| Weight | 17.66 lbs |
| Localization | Portuguese / Brazil |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 12 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ |
| Performance | Switching capacity: 2.4 Tbps ¦ Throughput: 2.678 Mpps |
| Capacity | IPv6 host table capacity: 145780 ¦ IPv4 host table capacity: 145780 ¦ IPv4 routes (Unicast): 606977 ¦ IPv6 routes (Unicast): 630784 ¦ IPv4 ACL entries (ingress): 65536 ¦ IPv6 ACL entries (ingress): 16384 ¦ MAC ACL entries (ingress): 65536 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 ¦ VLANs supported: 4094 ¦ IGMP groups: 7000 ¦ MLD groups: 7000 ¦ IPv4 routes (Multicast): 7000 ¦ IPv6 routes (Multicast): 7000 |
| MAC Address Table Size | 212992 entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, static IPv6 routing, static IPv4 routing, RIP-2, RIPng, OSPFv3, BGP-4, policy-based routing (PBR), ECMP, GRE, MPLS, IGMP, MLD, BGP-MP, static IP routing, MLDv2, EGP, IGMPv2, IGMPv3, VRRP, PIM-SM, MSTP, RSTP, STP |
| Remote Management Protocol | RSTP, ICMP, IPv4, IPv6, SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP, SSH, SSH-2, CLI, NTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | 32MB packet buffer, IPv4 support, IPv6 support, manageable, ACL support, VLAN support, Multicast routing, LACP, flow control, Link Aggregation, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), UDP, IP-routing, ICMP, ARP support, congestion control, broadcast mode, DHCP support, port mirroring, sFlow, STP support, RSTP support, QoS, Jumbo Frames support, UDLD, fan tray, redundant hot swappable fans, packet storm protection, SP, DWRR, DCB, ECN, VSX, BFD, ERPS, Loopback, VTEP support, PIM, IGMP snooping, MLD snooping, Rapid PVST+, Cisco IPSLA, BPDU, MACsec support, MSDP, fast leave, VXLAN |
| Compliant Standards | IEEE 802.1t, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ae, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D |
| Processor | 1: 1.8 GHz |
| RAM | 16 GB |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 12 x 100Gbit/40Gbit LAN ¦ 1 x serial (console) ¦ 1 x USB-C console ¦ 1 x LAN RJ-45 ¦ 1 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 3 x fan modules |
| Rack Mounting Kit | Included |
| Compliant Standards | ISO 7779, ISO 9296, EMC 2014/30/EU, Directive 2014/35/EU, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 62368-1:2014 Second Edition, UL 60950-1, CSA 22.2 No. 60950-1, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013, IEC 62368-1: 2014, EMC, CISPR 32 Class A, CISPR 35, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55032:2015, EN 55035:2017, FCC CFR47 Part 15 A, ICES-003 Class A, VCCI Class A, CNS 13438, CNS 13438 Class A, EN 60825-1:2014, IEC 60825-1:2014 Class 1, Laser Class 1, RoHS, EN 50581:2012 |
| Localization | Portuguese / Brazil |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Power Provided | 550 Watt |
| Voltage Required | AC 90-264 V (47 - 63 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 16 in |
| Height | 1.7 in |
| Weight | 17.66 lbs |
