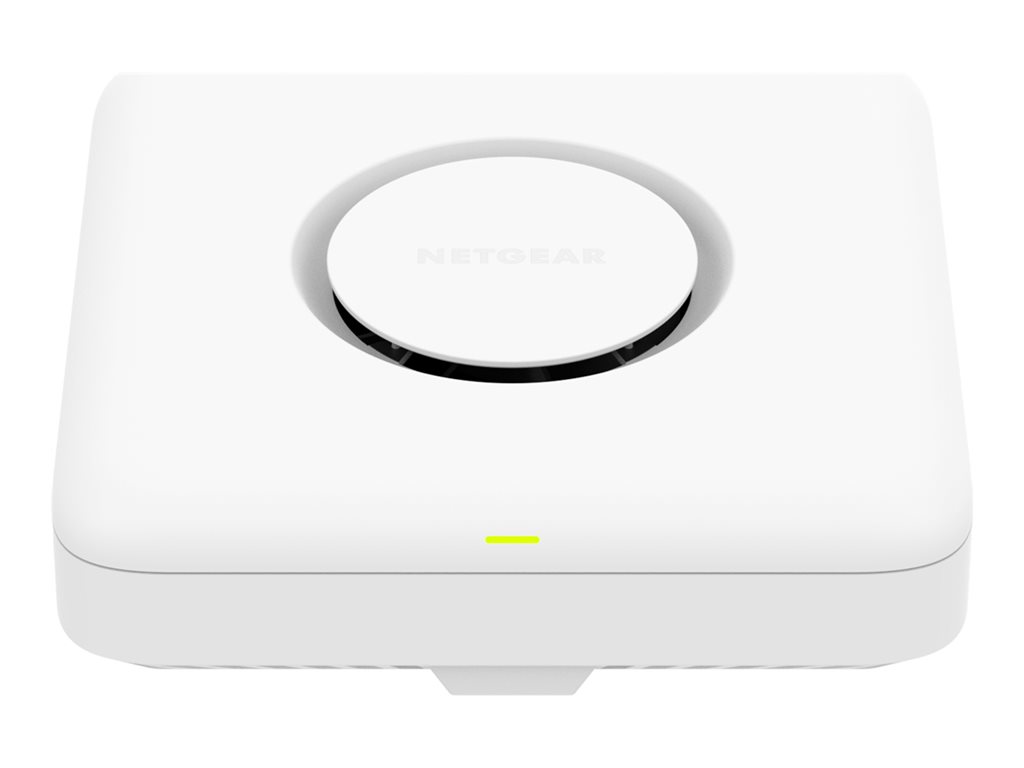

Wireless access point - 10GbE, Wi-Fi 7, 2.5GbE, 5GbE - Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - wall / ceiling mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR WBE758 - wireless access point - Wi-Fi 7 |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable |
| Localization | United States |
| Data Link Protocol | 10 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Gigabit Ethernet, Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum throughput (2.4 GHz): 1147 Mbps ¦ Maximum throughput (5 GHz): 5765 Mbps ¦ Maximum throughput (6 GHz): 11530 Mbps |
| Capacity | Concurrent devices: up to 256 ¦ SSIDs total: 8 |
| Included Accessories | Wall/ceiling mounting kit |
| Power Over Ethernet (PoE) Supported | PoE++ |
| Power | DC 12 V |
| Dimensions (WxDxH) | 6.8 in x 6.8 in x 1.7 in |
| Weight | 33.51 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Wireless access point |
| Width | 6.8 in |
| Depth | 6.8 in |
| Height | 1.7 in |
| Weight | 33.51 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x 100M/1G/2.5/5/10 Gigabit Ethernet (PoE++) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 5 years ¦ Technical support - 90 days |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 18.4 Gbps |
| Data Link Protocol | 10 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Gigabit Ethernet, Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Spread Spectrum Method | OFDM, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum throughput (2.4 GHz): 1147 Mbps ¦ Maximum throughput (5 GHz): 5765 Mbps ¦ Maximum throughput (6 GHz): 11530 Mbps |
| Capacity | Concurrent devices: up to 256 ¦ SSIDs total: 8 |
| Wi-Fi Rating | BE18400 |
| Status Indicators | Power, LAN, cloud, radio |
| Features | Remote device cloud access, 4x4 MU-MIMO technology, Fast Roaming, 320MHz bandwidth support, 160MHz bandwidth support, Target Wake Time (TWT), Mesh networking, Dynamic VLAN Support (GVRP), VLAN support, BSS Coloring, Beamforming+, Bi-Directional (BiDi), Wireless Distribution System (WDS) support, Point-to-Point (PtP) link mode, multi-point mode, repeating mode, MAC address filtering, Neighbor AP detection, Block SSID Broadcast, Captive Portal, Guest Network, bandwidth control, Link Layer Discovery Protocol, band steering, Backhaul Technology, Wi-Fi Multimedia (WMM) support |
| Encryption Algorithm | SSL, Opportunistic Wireless Encryption (OWE), WPA2-PSK, WPA3-PSK, WPA2-Enterprise, WPA3-Enterprise, EAP-TLS, EAP-TTLS, PEAP |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3at, IEEE 802.3bt, IEEE 802.11i, IEEE 802.1x, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE++ |
| Power Device | Power injector (not included) |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 39 watt |
| Software / System Requirements | |
| Software Included | NETGEAR Insight (4 years subscription) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Antenna | |
| Antenna | Internal |
