Transformer (rack-mountable / external) - AC 208/240 V - 4275 Watt - 5000 VA - 1-phase - output connectors: 7
| Main Specifications | |
|---|---|

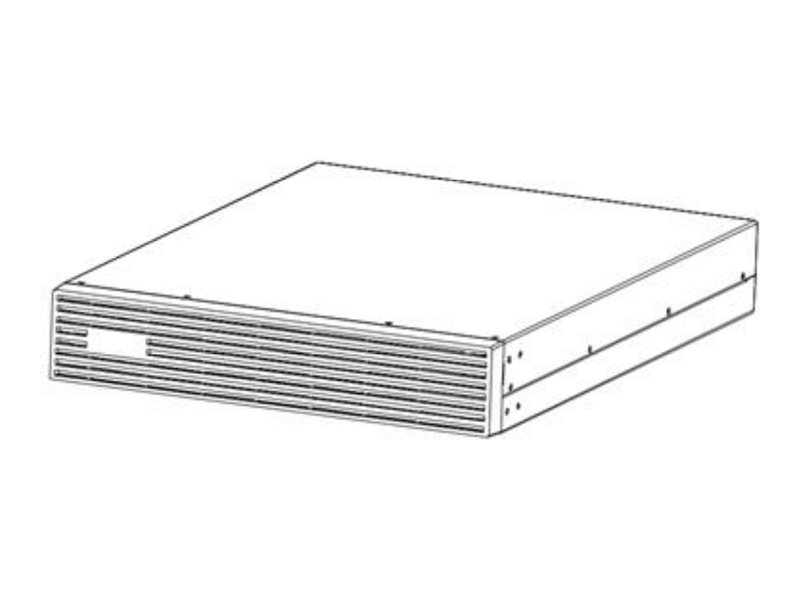

| Product Description | Minuteman Endeavor ED-5KTF - transformer - 4275 Watt - 5000 VA |
| Device Type | Transformer - rack-mountable / external |
| Weight | 121.25 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208/240 V |
| Output Voltage | AC 110/120 V |
| Power Capacity | 4275 Watt / 5000 VA |
| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 2 x power NEMA L5-30R ¦ 4 x power NEMA 5-15R/20R ¦ 1 x 3 pin terminal block |
| Dimensions (WxDxH) | 17.2 in x 23.8 in x 3.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Transformer - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 2 ft |
| Features | Isolated, Step-Down Transformer |
| Compliant Standards | cUL, UL 1778, FCC Class A certified, RoHS2, Directive 2014/30/EU |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 208/240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 2 x power NEMA L5-30R ¦ 4 x power NEMA 5-15R/20R ¦ 1 x 3 pin terminal block |
| Output Voltage | AC 110/120 V |
| Max Electric Current | 24 A |
| Power Capacity | 4275 Watt / 5000 VA |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Total Harmonic Distortion (THD) | 4 % |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 23.8 in |
| Height | 3.4 in |
| Weight | 121.25 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.4 in |
| Shipping Depth | 32.7 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 134.48 lbs |
