PoE injector (DIN rail mountable / external) - connectivity - AC 100-240 V - 90 Watt - output connectors: 1 - United States - white, NCS S 1002-B - TAA Compliant
| Main Specifications | |
|---|---|

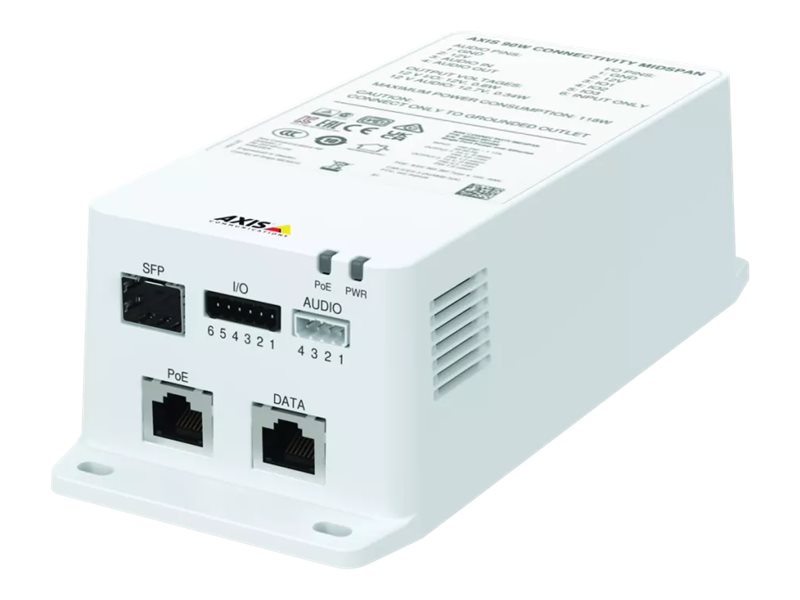

| Product Description | AXIS TU8003 - PoE injector - connectivity - 90 Watt - TAA Compliant |
| Device Type | PoE injector - DIN rail mountable / external |
| Power Over Ethernet (PoE) | High PoE |
| Weight | 14.64 oz |
| Localization | United States |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 54 V |
| Power Capacity | 90 Watt |
| Color | White, NCS S 1002-B |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.2 in x 7.2 in x 3.1 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | PoE injector - DIN rail mountable / external |
| Power Over Ethernet (PoE) | High PoE |
| Color | White, NCS S 1002-B |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 ¦ 1 x Gigabit LAN - SFP (mini-GBIC) ¦ I/O - 6 pin terminal block (2.5mm) ¦ Audio - 4 pin terminal block (2.5mm) ¦ Audio input ¦ Audio output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 6 ft |
| Features | Polycarbonate construction, PVC free, LED indicators |
| Compliant Standards | IEEE 802.3bt Type 4, EIA/TIA 568A, EIA/TIA 568B, UL/cUL, BIS, KC, VCCI, RCM, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 62236-4, AS/NZS CISPR 32 Class A, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC/EN/UL 62368-1, IEC/EN 60950-1, IS 13252, CB, AS/NZS 62368-1:2018 Second Edition, ROHS Directive 2011/65/EU, EN 63000:2018, REACH |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Output Voltage | DC 54 V |
| Power Capacity | 90 Watt |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 7.2 in |
| Height | 3.1 in |
| Weight | 14.64 oz |
