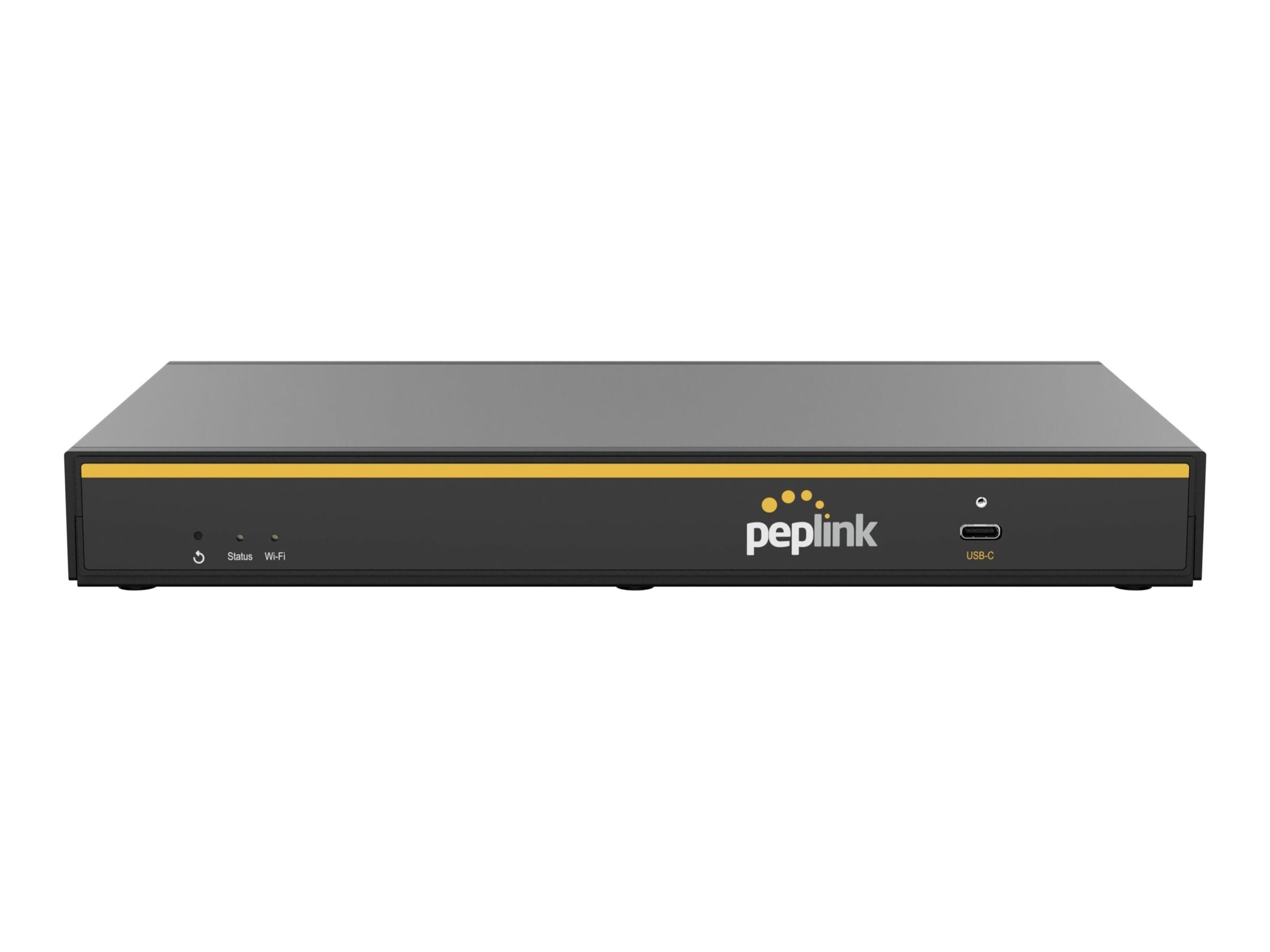

Wireless router - Wi-Fi 6 - Dual Band
| Main Specifications | |
|---|---|
| Product Description | PePLink B One - wireless router - Wi-Fi 6 |
| Device Type | Wireless router |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 1 Gbps ¦ SpeedFusion throughput (no encryption): 400 Mbps ¦ SpeedFusion throughput (256-bit AES): 200 Mbps |
| Capacity | Number of PepVPN/SpeedFusion Peers: 2 ¦ Recommended users: 150 ¦ Maximum number of access points: 50 ¦ Maximum simultaneous SSIDs: 16 ¦ Concurrent IPSec tunnels: 5 |
| Network / Transport Protocol | PPPoE, DHCP |
| Features | Dynamic DNS, DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, dynamic routing, QoS, UPnP, hot failover, bandwidth bonding, eSIM support |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 10.3 in x 6.3 in x 1.3 in |
| Weight | 25.64 oz |
| Localization | Worldwide |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 1 Gbps ¦ SpeedFusion throughput (no encryption): 400 Mbps ¦ SpeedFusion throughput (256-bit AES): 200 Mbps |
| Capacity | Number of PepVPN/SpeedFusion Peers: 2 ¦ Recommended users: 150 ¦ Maximum number of access points: 50 ¦ Maximum simultaneous SSIDs: 16 ¦ Concurrent IPSec tunnels: 5 |
| Network / Transport Protocol | PPPoE, DHCP |
| Encryption Algorithm | 256-bit AES |
| Features | Dynamic DNS, DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, dynamic routing, QoS, UPnP, hot failover, bandwidth bonding, eSIM support |
| Compliant Standards | FCC, RoHS, EN 61000 |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 1000Base-T - RJ-45 ¦ USB: 1 x Type C ¦ LAN: 4 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

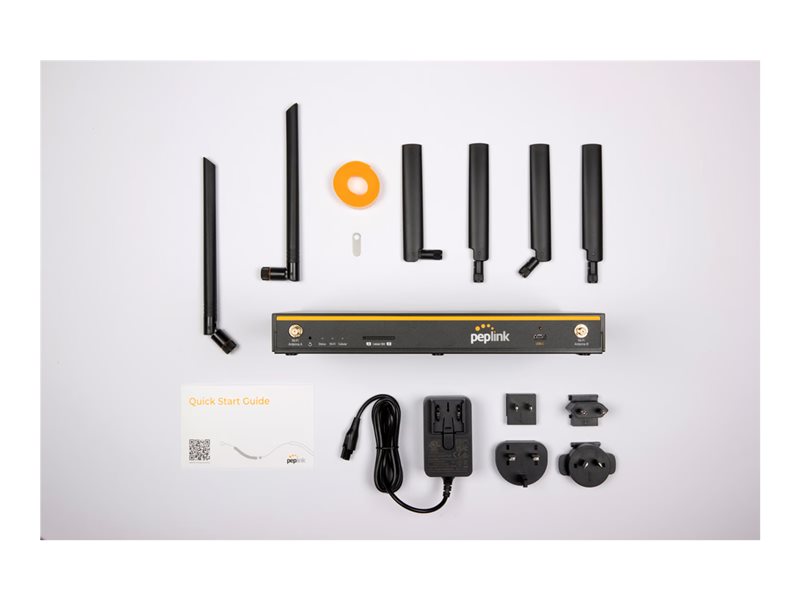

| Included Accessories | 2 x Wi-Fi antennas, power supply |
| Localization | Worldwide |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 10.3 in |
| Depth | 6.3 in |
| Height | 1.3 in |
| Weight | 25.64 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
