Switch - L3 - managed - 48 x 50 Gigabit SFP56 + 4 x 400 Gigabit QSFP-DD - rack-mountable
| Main Specifications | |
|---|---|

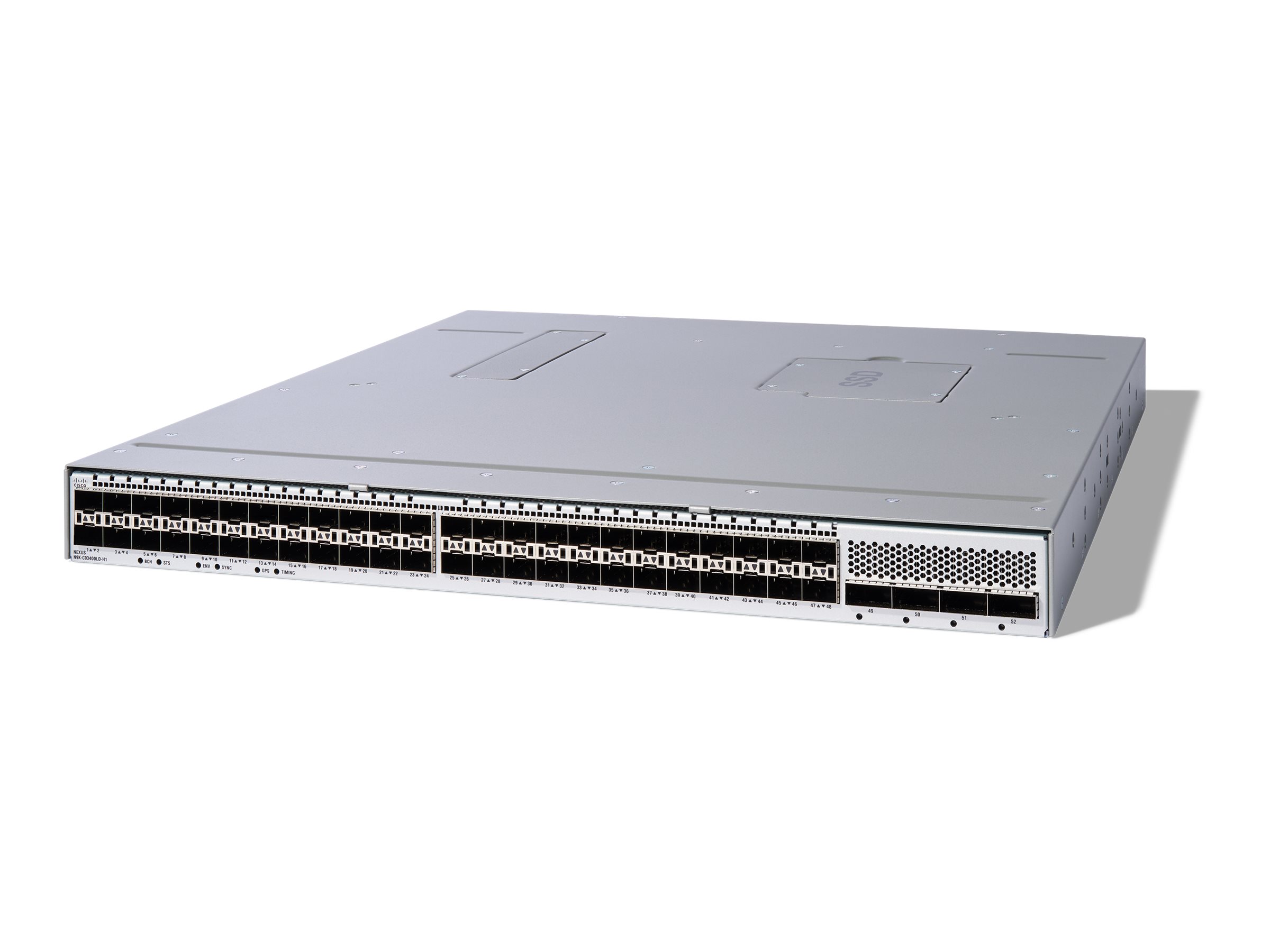

| Product Description | Cisco Nexus 93400LD-H1 - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet |
| Ports | 48 x 50 Gigabit SFP56 + 4 x 400 Gigabit QSFP-DD |
| Performance | Bandwidth: 8 Tbps ¦ On-die packet buffer: 40 MB |
| Capacity | ACL entries: 28000 ¦ Slices: 2 ¦ IPv4 longest prefix match (LPM) routes: 2000000 ¦ Host table entries (IPv4): 2000000 ¦ IPv6 longest prefix match (LPM) routes: 1000000 ¦ Host table entries (IPv6): 2000000 ¦ MAC address entries: 1000000 ¦ Multicast routes: 256000 ¦ IGMP snooping entries: 32000 ¦ VLANs supported: 4096 ¦ VRF instances: 16000 ¦ ECMP paths: 128 ¦ Port channels: 512 ¦ Maximum number of links in a port channel: 32 ¦ SPAN sessions: 32 ¦ Active SPAN sessions: 4 ¦ RPVST instances: 4000 ¦ HSRP groups: 1000 ¦ MST instances: 64 ¦ Flow table size: 2000 ¦ Queues per port: 8 |
| Routing Protocol | Static IP routing, BGP, OSPF, EIGRP, RIP-2, PIM-SM, MSDP, MPLS, RSVP, ECMP |
| Remote Management Protocol | IPv6, IPv4, YANG, RESTCONF, NETCONF |
| Features | PTP, Class C timing support, SyncE, MACsec support, EVPN, VXLAN, SDN, non-blocking architecture, SSM, SR, SRv6 support, SR-TE, POAP, DME, ACL support, congestion management, flow control, PFC, ECN, RDMA support, RoCE, Lossless DCB, ETS, DCBX support, WRED, AFD, ETRAP, DPP, vPC technology, STP support, SMU, ISSU |
| Compliant Standards | IEEE 1588v1, IEEE 802.1ae, ITU-T G.8275.1, ITU-T G.8275.2 |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 19.7 in x 1.7 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet |
| Ports | 48 x 50 Gigabit SFP56 + 4 x 400 Gigabit QSFP-DD |
| Performance | Bandwidth: 8 Tbps ¦ On-die packet buffer: 40 MB |
| Capacity | ACL entries: 28000 ¦ Slices: 2 ¦ IPv4 longest prefix match (LPM) routes: 2000000 ¦ Host table entries (IPv4): 2000000 ¦ IPv6 longest prefix match (LPM) routes: 1000000 ¦ Host table entries (IPv6): 2000000 ¦ MAC address entries: 1000000 ¦ Multicast routes: 256000 ¦ IGMP snooping entries: 32000 ¦ VLANs supported: 4096 ¦ VRF instances: 16000 ¦ ECMP paths: 128 ¦ Port channels: 512 ¦ Maximum number of links in a port channel: 32 ¦ SPAN sessions: 32 ¦ Active SPAN sessions: 4 ¦ RPVST instances: 4000 ¦ HSRP groups: 1000 ¦ MST instances: 64 ¦ Flow table size: 2000 ¦ Queues per port: 8 |
| Routing Protocol | Static IP routing, BGP, OSPF, EIGRP, RIP-2, PIM-SM, MSDP, MPLS, RSVP, ECMP |
| Remote Management Protocol | IPv6, IPv4, YANG, RESTCONF, NETCONF |
| Features | PTP, Class C timing support, SyncE, MACsec support, EVPN, VXLAN, SDN, non-blocking architecture, SSM, SR, SRv6 support, SR-TE, POAP, DME, ACL support, congestion management, flow control, PFC, ECN, RDMA support, RoCE, Lossless DCB, ETS, DCBX support, WRED, AFD, ETRAP, DPP, vPC technology, STP support, SMU, ISSU |
| Compliant Standards | IEEE 1588v1, IEEE 802.1ae, ITU-T G.8275.1, ITU-T G.8275.2 |
| RAM | 32 GB (installed) / 64 GB (max) |
| Built-in Devices | 128 GB SSD |
| Status Indicators | Link/activity, beaconing, system, environment, SYNC, GPS, time of day (ToD) |
| Expansion / Connectivity | |
| Interfaces | 48 x 50Gbit LAN SFP56 ¦ 4 x 400Gbit LAN QSFP-DD ¦ 2 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) console ¦ 1 x USB ¦ 2 x GPS DIN ¦ 1 x ToD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| MTBF | 224,280 hours |
| Compliant Standards | WEEE, 47 CFR Part 15 Class A, ANSI/UL 60950-1 Second Edition, ANSI/UL 62368-1 Third Edition, AS/NZS 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR-32 Class A, CNS 15936, Directive 2014/30/EU, Directive 2014/35/EU, EN 55032 Class A, EN 61000-3-3, EN 62368-1 Second Edition, EN IEC 61000-3-11, IEC 62368-1 Third Edition, CISPR 24, CISPR 35, EN 300 386, EN 61000-6-1, EN IEC 61000-3-2, EN55035, EN61000-3-12, ICES-003 issue 7 Class A, IEC 61000-6-1, IEC 61000-6-2, IEC/EN 61000-6-1, KS C 9832, KS C 9835, RoHS, VCCI-CISPR 32 Class A |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 131 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 19.7 in |
| Height | 1.7 in |
