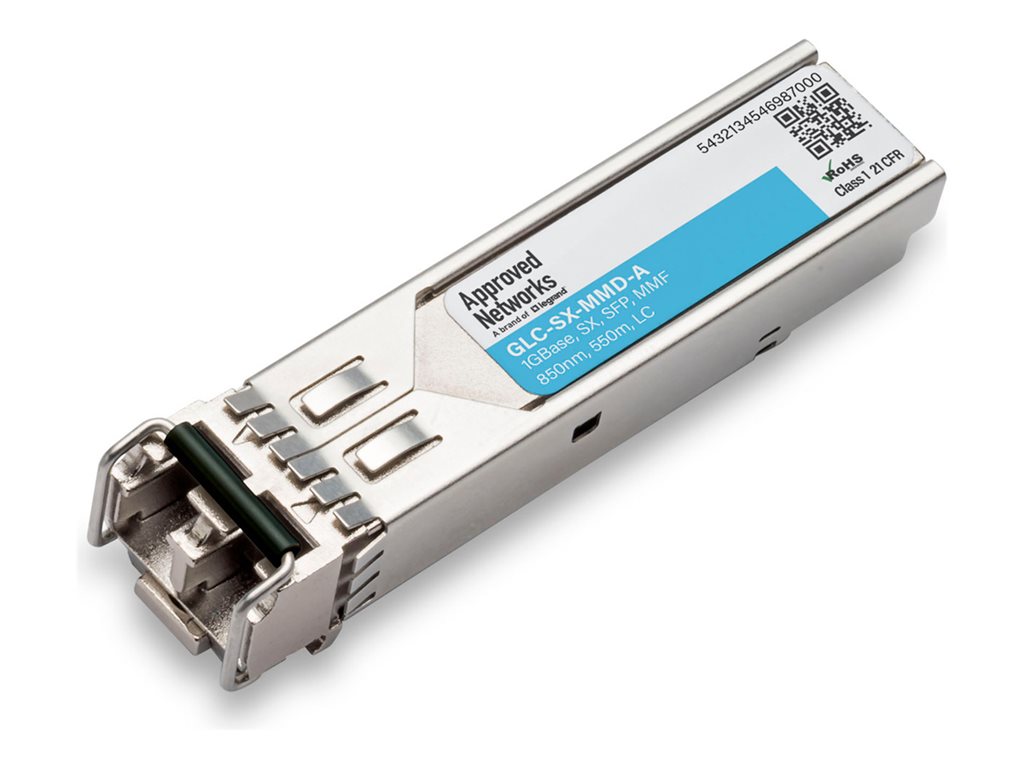

SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-SX-MMD) - 1GbE - 1000Base-SX - LC multi-mode - up to 1800 ft - 850 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 1800 ft |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MMD |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX (duplex) - LC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, OM3 |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MMD |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Features | Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), Vertical Cavity Surface Emitting Laser (VCSEL), transmit min -9 dBm / max -3 dBm, 7.5 dB power budget |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
