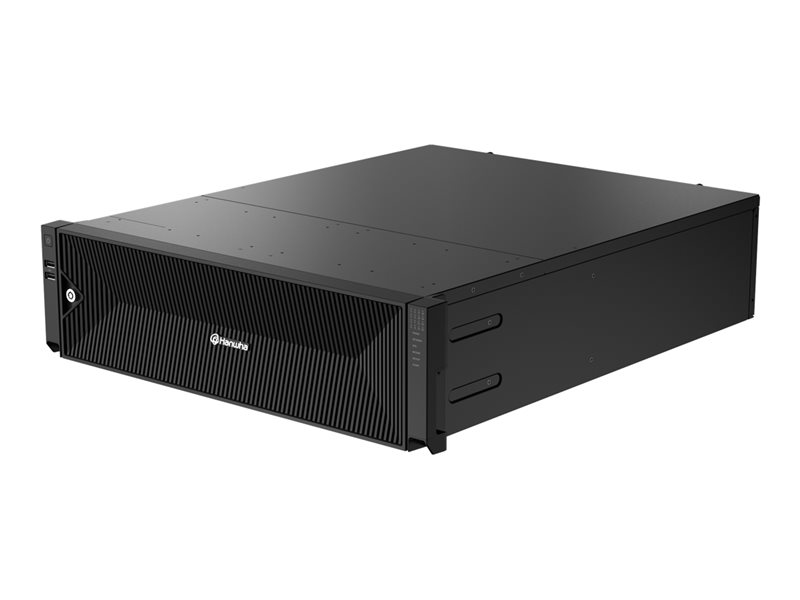

NVR - 64 channels 32 TB - networked
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision XRN-6420DB4 - standalone NVR - 64 channels |
| Device Type | NVR - 64 channels - networked |
| Frame Rate | 30 fps, 15 fps (playback) |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AAC |
| Image Resolution | 3840x2160, 1920x1080 |
| Hard Drive | 32 TB |
| Hard Drive(s) Supported | Quantity: 16 - total capacity: 160 TB |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 17.3 in x 22.5 in x 5.2 in |
| Weight | 33.29 lbs |
| General | |
| Device Type | NVR |
| Video Channels | 64 |
| Image Resolution | 3840x2160, 1920x1080 |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AAC |
| Package Content | Keyboard, mouse |
| OS Provided | Linux |
| Compliant Standards | IEEE 802.1x, TLS, NDAA |
| Color | Black |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | ONVIF, IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTSP, RTCP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP |
| Features | E-mail alert, push notification, automatic shutdown, Trusted Platform Module (TPM), signed firmware, Source-Specific Multicast (SSM), IP address filtering, data compression, GOP control, Hallway view |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 265 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% RH |
| System Requirements | |
| Operating Systems | Apple iOS, Android |
| Hard Drive | |
| Quantity Supported | 16 |
| Capacity | 32 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 160 TB |
| Connections | |
| Video Output Ports | HDMI x 2 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 3 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 2 |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 22.5 in |
| Height | 5.2 in |
| Weight | 33.29 lbs |
| Security DVR | |
| Frame Rate (Playback) | 30 fps, 15 fps |
| Video Recording Resolution | CIF, 32 Megapixels |
| Display Modes | 2 split screens |
| Playback Search | Date/time, event, text, bookmark, smart search |
| Record Events | Alarm, event, video loss, sensor, analytics, defocus detection, audio detection |
| Networked | Yes |
| Features | Recording data rate up to 520 Mbps, schedule backup, Fisheye Dewarp function, RAID 5 support, RAID 6 support, 2-way audio communication, Webviewer |
| Video Server | |
| Features | Dual stream support |
