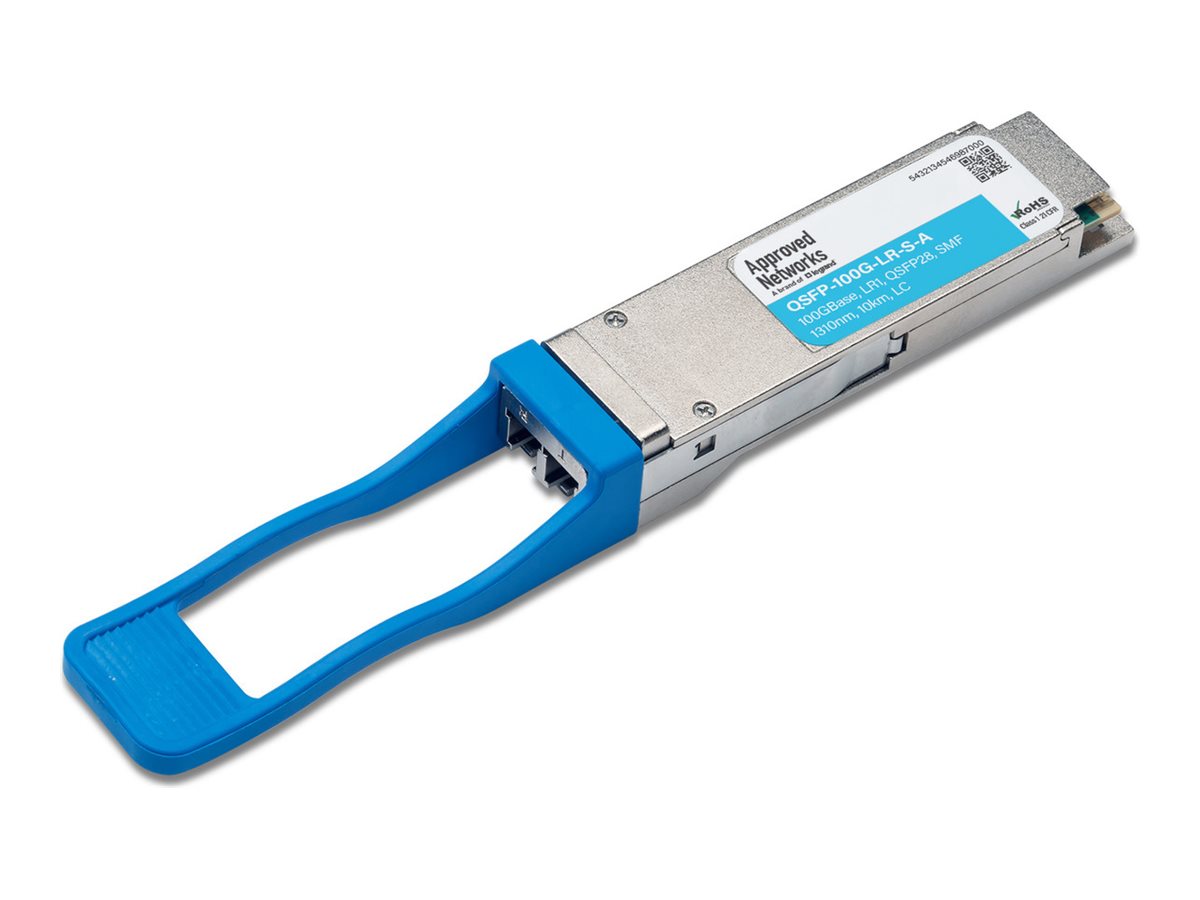

QSFP28 transceiver module (equivalent to: Cisco QSFP-100G-LR-S) - 100GbE - 100GBase-LR1 - LC single-mode - up to 6.2 miles - 1310 nm - for Mellanox ConnectX-5; Cisco Network Convergence System 55XX; Nexus 36180, 92XXX, 93XX
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - QSFP28 transceiver module - 100GbE |
| Device Type | QSFP28 transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100GBase-LR1 |
| Data Transfer Rate | 106.25 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 100GbE |
| Max Transfer Distance | 6.2 miles |
| OEM Manufacturer Equivalent Part Number | Cisco QSFP-100G-LR-S |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | Mellanox ConnectX-5; Cisco 400G CFP2; Network Convergence System 1002, 5500, 5501; Nexus 31108, 3232, 36180, 7700 M3-Series, 92160, 92300, 92304, 9236, 93108, 93180, 9336, 9348, 9364, X9432, X9636, X97160, X9732, X9736 |
| General | |
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-LR1 (duplex) - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, SFF-8636, SFF-8661, SFF-8679 |
| OEM Manufacturer Equivalent Part Number | Cisco QSFP-100G-LR-S |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-LR1 |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 106.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Diagnostics Monitoring (DDM), Digital Optical Monitoring (DOM) support, Electro-absorption Modulated Laser (EML), pulse-amplitude-modulation (PAM4), -6.1 dBm sensitivity, 5.4 dB power budget |
| Power | |
| Power Consumption Operational | 4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Compatibility Information | |
| Designed For | Mellanox ConnectX-5 Ex EN ¦ Cisco 400G CFP2 MR Xponder ¦ Cisco Network Convergence System 1002, 5500 Series Base Line Card, 5500 Series Base Scale Datacenter Line Card, 5500 Series Line Card, 5500 Series Modular Line Card, 5501 SE Chassis ¦ Cisco Nexus 31108PC-V, 31108TC-V, 3232C, 36180YC-R, 7700 M3-Series, 92160YC-X, 92300YC, 92304QC, 9236C, 93108TC-EX, 93108TC-FX, 93180LC-EX, 93180YC-EX, 93180YC-FX, 9336C-FX2, 9348GC-FXP, 9364C ACI & NX-OS Spine, X9432C-S, X9636C-R, X97160YC-EX, X9732C-EX, X9736C-EX, X9736C-FX |
