Control extender
| Main Specifications | |
|---|---|

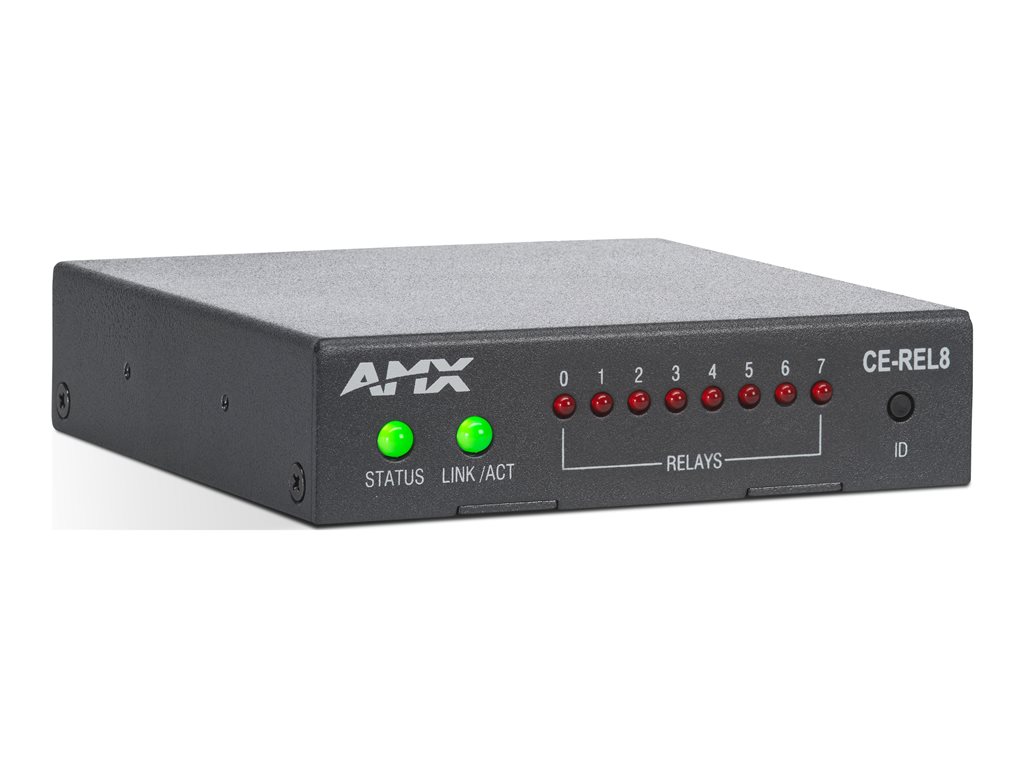

| Product Description | AMX CE-Series CE-REL8 - control extender |
| Device Type | Control extender |
| Form Factor | External |
| Power Over Ethernet (PoE) | PoE |
| General | |
| Device Type | Control extender |
| Form Factor | External |
| Color | Gray matt |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet - RJ-45 female ¦ 2 x relay (captive-screw terminal) - 8 pin 3.5 mm |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 Class B, EN 55022/CISPR 22 Class B, VCCI, C-Tick, RoHS, REACH, CP65, IEC 62368-1 CB Scheme, UL 62368-1, IEC 60950 |
| Networking | |
| Connectivity Technology | Wired |
| Status Indicators | Power, connection status, Ethernet link/activity, IR transmitter |
| Features | PoE powered |
| Compliant Standards | IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Consumption Operational | 1.9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.1 in |
| Shipping Depth | 4.1 in |
| Shipping Height | 1 in |
| Shipping Weight | 16.01 oz |
