UPS - AC 208 V - 120 kW - 3-phase - USB
| Main Specifications | |
|---|---|

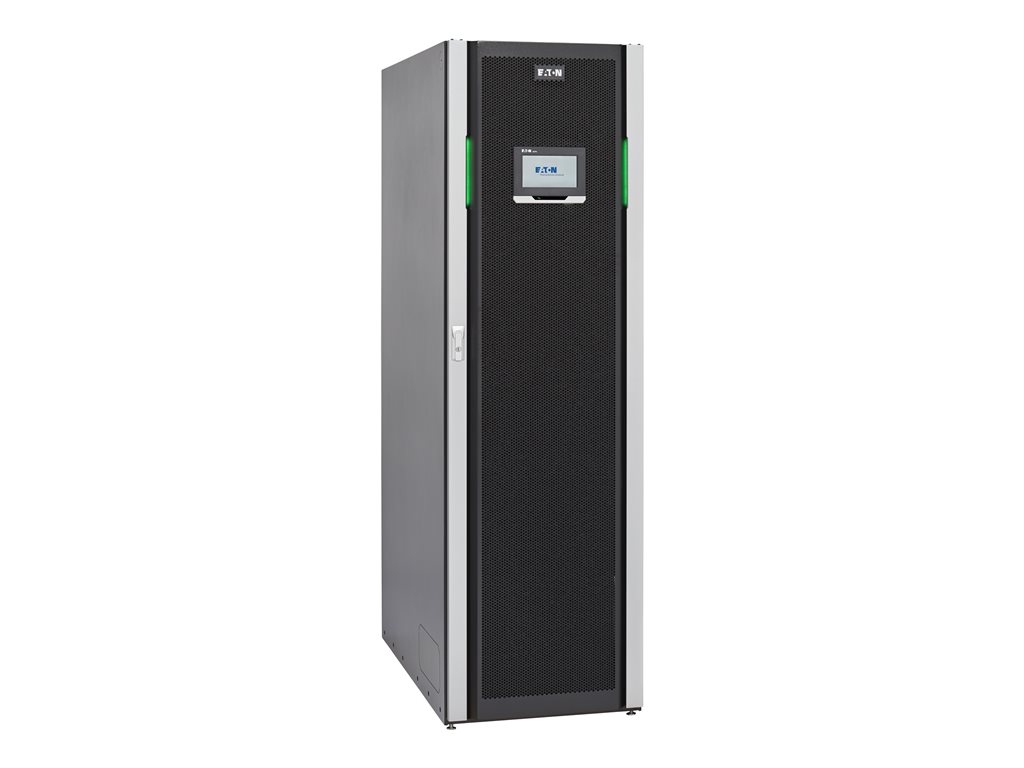

| Product Description | Eaton 93PM - UPS - 120 kW |
| Device Type | UPS - external |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V + 15% / - 15% |
| Power Capacity | 120 kW |
| Input Connectors | Hardwire |
| Networking | USB |
| Dimensions (WxDxH) | 22 in x 42 in x 74 in |
| General | |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | 1 x EPO (emergency power off) ¦ 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Features | Top cable entry, bottom cable entry |
| Compliant Standards | UL 1778, cULus, FCC Part 15 B Class A, IEC 61000-4-5, UL 924 |
| Networking | |
| Remote Management Interface | USB |
| Software / System Requirements | |
| Software Included | Intelligent Power Manager |
| Battery | |
| Voltage Provided | 480 V |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 208 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | Hardwire |
| Output Voltage | AC 208 V + 15% / - 15% - 50/60 Hz |
| Power Capacity | 120 kW |
| Power Factor (PF) | 0.99 |
| Dimensions & Weight | |
| Width | 22 in |
| Depth | 42 in |
| Height | 74 in |
