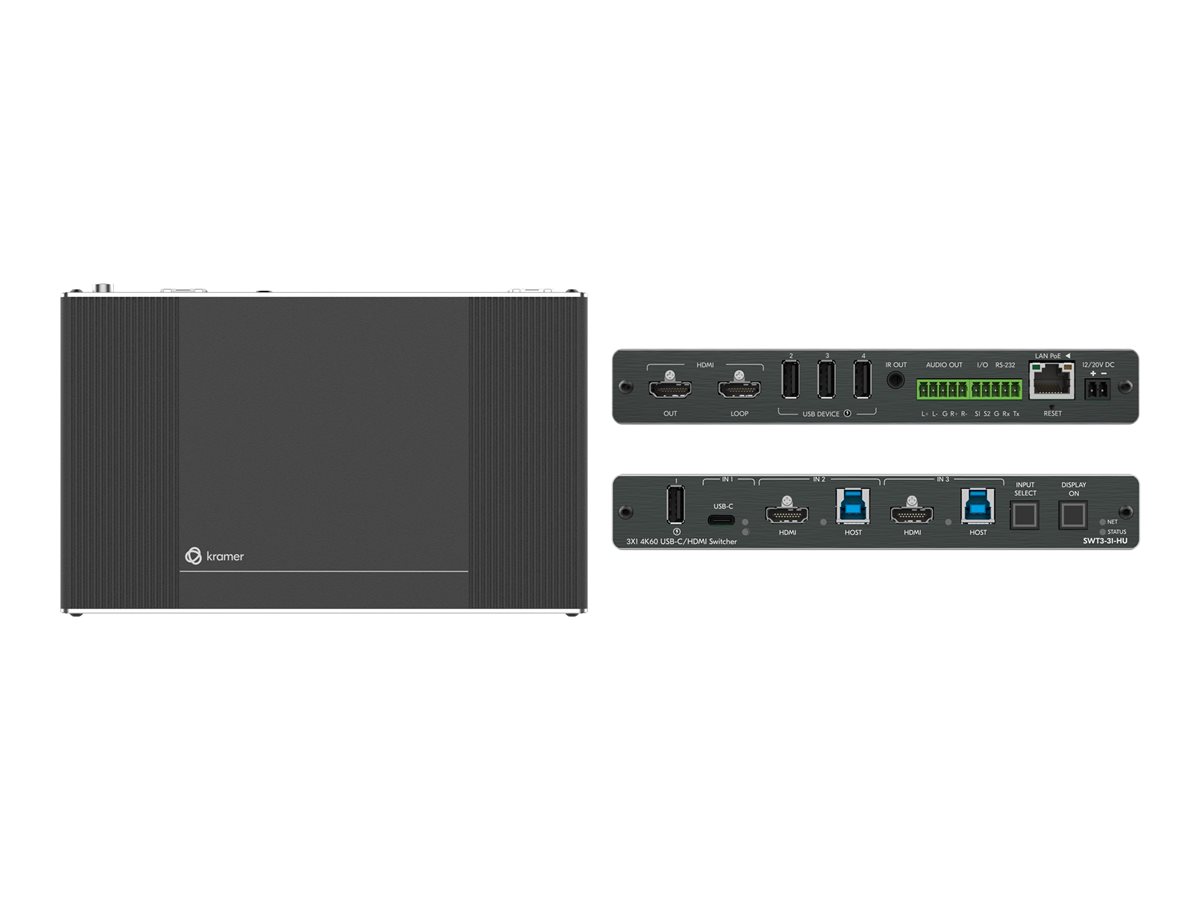

Video/audio/USB switch - 3x1, 4K60 - 1 x USB-C + 2 x HDMI - desktop
| Main Specifications | |
|---|---|
| Product Description | Kramer SWT3-31-HU - video/audio/USB switch - 3x1, 4K60 - 3 ports |
| Device Type | Video/audio/USB switch - 3 ports |
| Subtype | HDMI / USB |
| Ports | 1 x USB-C + 2 x HDMI |
| Performance | Video bandwidth: 18 Gbps ¦ Bandwidth per channel: 6 Gbps |
| Features | 3D support, video mirror mode, I-EDIDPro Kramer Intelligent EDID Processing, Dolby TrueHD support, x.v.Color support, DTS-HD support, HDR support, auto-switching, audio de-embedding, aluminum housing, 4:4:4 chroma subsampling support, DisplayPort Alternate mode, Deep Color support, convection ventilation cooling, built-in intelligent control gateway |
| Compliant Standards | IEEE 802.1x, USB 1.1, USB 2.0, Power Delivery 3.0, USB 3.2 Gen 2, HDCP 2.3 |
| Dimensions (WxDxH) | 7.5 in x 4.6 in x 1.1 in |
| Weight | 21.16 oz |
| General | |
| Device Type | Video/audio/USB switch - 3 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI / USB |
| Ports | 1 x USB-C + 2 x HDMI |
| Performance | Video bandwidth: 18 Gbps ¦ Bandwidth per channel: 6 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Features | 3D support, video mirror mode, I-EDIDPro Kramer Intelligent EDID Processing, Dolby TrueHD support, x.v.Color support, DTS-HD support, HDR support, auto-switching, audio de-embedding, aluminum housing, 4:4:4 chroma subsampling support, DisplayPort Alternate mode, Deep Color support, convection ventilation cooling, built-in intelligent control gateway |
| Compliant Standards | IEEE 802.1x, USB 1.1, USB 2.0, Power Delivery 3.0, USB 3.2 Gen 2, HDCP 2.3 |
| Expansion / Connectivity | |
| Interfaces | 1 x USB input Type C ¦ 2 x HDMI input ¦ 1 x HDMI output ¦ 1 x HDMI loop ¦ 1 x audio output 5 pin terminal block stereo audio ¦ 1 x IrDA output mini-jack ¦ 2 x USB 3.1 Type B host ¦ 4 x USB 3.1 Type A ¦ 1 x LAN RJ-45 ¦ 1 x serial (RS-232) 3 pin terminal block ¦ 2 x GPIO 2 pin terminal block |
| Miscellaneous | |
| Compliant Standards | UL, RoHS, WEEE |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 20 V - 6 A |
| Features | PoE powered |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 4.6 in |
| Height | 1.1 in |
| Weight | 21.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2 in |
| Shipping Weight | 2.65 lbs |
