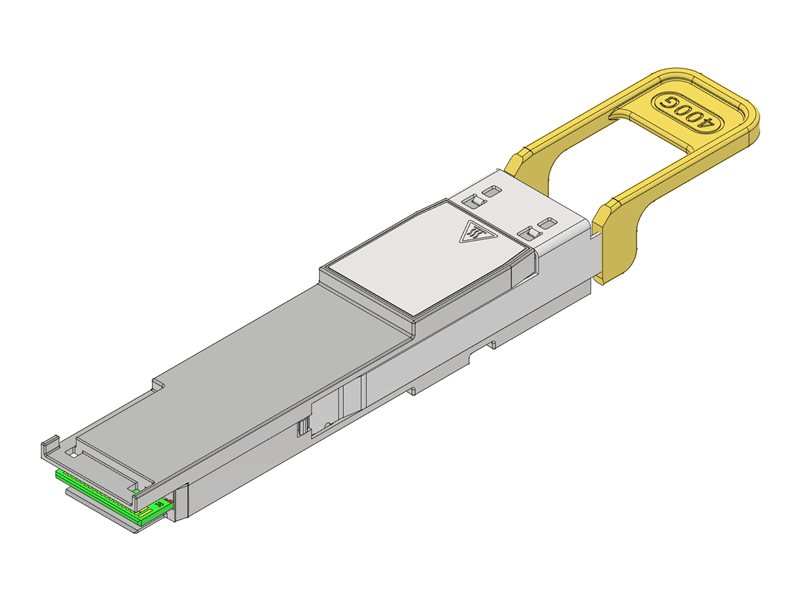

QSFP112 transceiver module - 400GbE - 400GBase-DR4 - MPO-12/APC single-mode - up to 1640 ft - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | NVIDIA - QSFP112 transceiver module - 400GbE |
| Device Type | QSFP112 transceiver module - MPO-12/APC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 400GBase-DR4 |
| Data Transfer Rate | 400 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 400GbE |
| Max Transfer Distance | 1640 ft |
| Power | 3.3 V |
| General | |
| Device Type | QSFP112 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBase-DR4 - MPO-12/APC single-mode |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, RoHS, QSFP112-MSA, CMIS 4.0 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 400GBase-DR4 |
| Data Link Protocol | 400GbE |
| Data Transfer Rate | 400 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1640 ft |
| Features | Pulse-amplitude-modulation (PAM4), InfiniBand NDR Link support, flat top, 4 channels, yellow pull tab, Electro-absorption Modulated Laser (EML), hot-pluggable |
| Power | |
| Voltage Required | 3.3 V |
| Power Consumption Operational | 9.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
