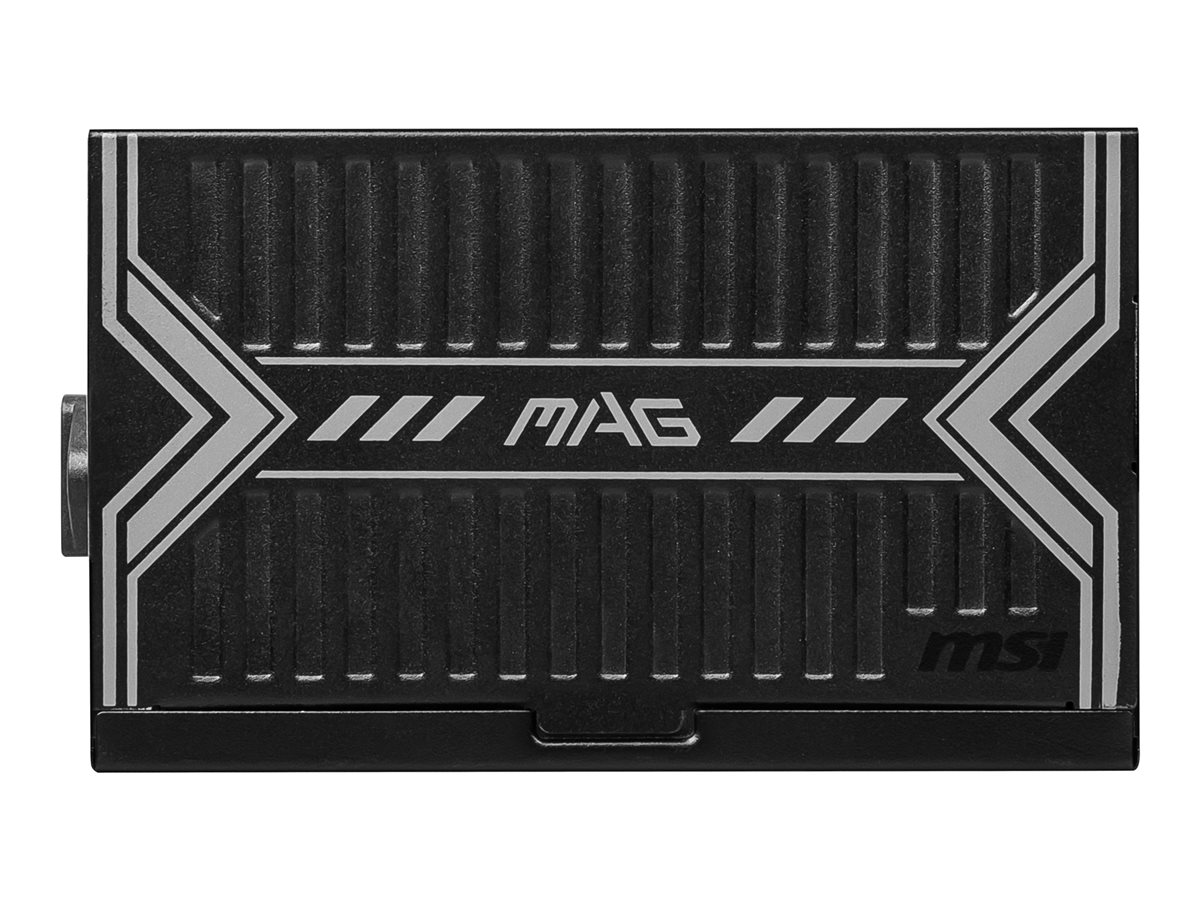

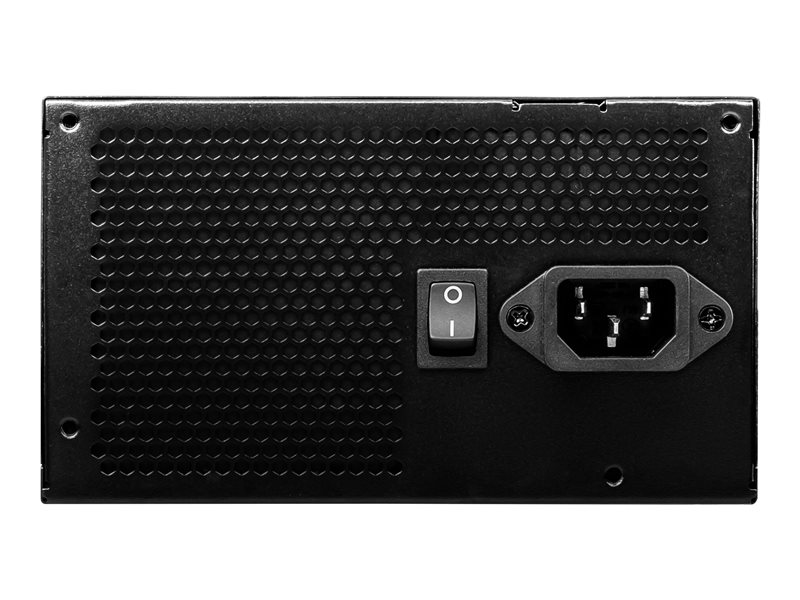

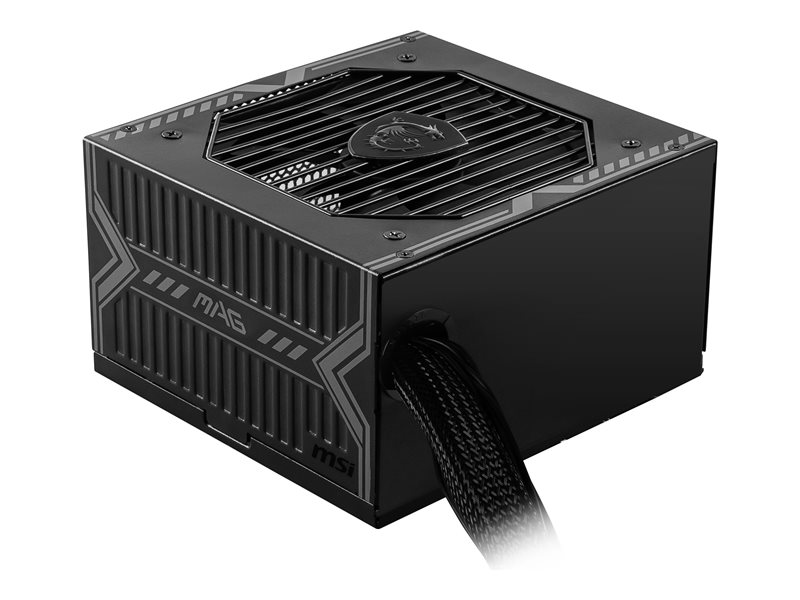

Power supply (internal) - ATX12V / EPS12V - 80 PLUS Bronze - AC 100-240 V - 750 Watt - active PFC
| Main Specifications | |
|---|---|
| Product Description | MSI MAG A750BN PCIE5 - power supply - 750 watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| 80 PLUS Certification | 80 PLUS Bronze |
| Weight | 6.17 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 62.5 A ¦ +5VSB - 2.5 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 pin internal power ¦ 1 x 4 pin internal power |

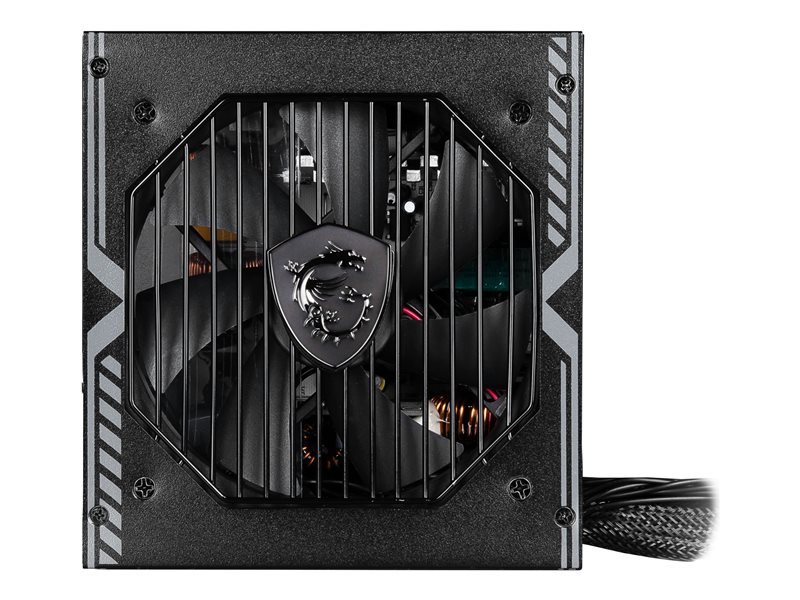

| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.5 in x 3.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | 5-year warranty |
| Miscellaneous | |
| Cables Included | ATX power cable 2 ft ¦ 16-pin 12VHPWR power cable 2 ft ¦ 8 pin PCI Express to 2x6 pin PCI Express power adapter 2 ft ¦ Power 15 pin SATA cable ¦ 2 x power 8 pin EPS12V modular cable 2 ft ¦ Power 15 pin SATA to 4 pin adapter ¦ AC input cable - external |
| Cooling System | 120 mm fan |
| Features | Overpower protection, overcurrent protection, short-circuit protection, overvoltage protection, overheat protection, sleeve bearing cooling fan, DC-DC technology |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 pin internal power ¦ 1 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 62.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 85% |
| 80 PLUS Certification | 80 PLUS Bronze |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.5 in |
| Height | 3.4 in |
| Weight | 6.17 lbs |
