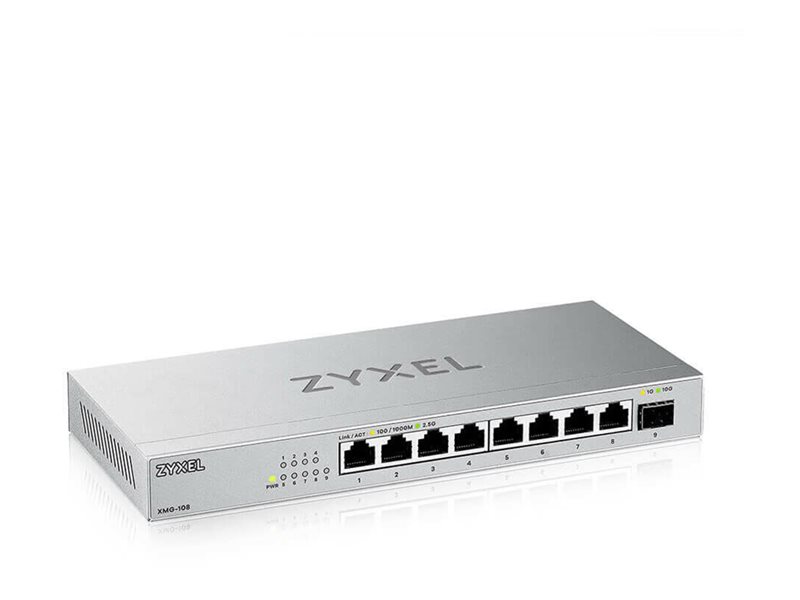

Switch - unmanaged - 8 x 2.5GBase-T + 1 x 1 Gigabit / 10 Gigabit SFP+ - desktop, wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Zyxel XMG-108 - switch - 8 ports - unmanaged |
| Device Type | Switch - 8 ports - unmanaged |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 1 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding rate: 44.6 Mpps ¦ Packet buffer size: 1 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Auto-uplink (auto MDI/MDI-X), fanless, loop detection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.4 in x 4.1 in x 1.1 in |
| Weight | 23.35 oz |
| General | |
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 1 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding rate: 44.6 Mpps ¦ Packet buffer size: 1 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Auto-uplink (auto MDI/MDI-X), fanless, loop detection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 8 x 2.5GBase-T RJ-45 ¦ 1 x 10Gbit LAN SFP+ |
| Miscellaneous | |
| MTBF | 1,647,776 hours |
| Compliant Standards | FCC, BSMI Class B, EAC |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 4.1 in |
| Height | 1.1 in |
| Weight | 23.35 oz |
