60" large-format printer - color - ink-jet - Roll (60 in) - USB 2.0, Gigabit LAN, Wi-Fi(n), USB host - black
| Main Specifications | |
|---|---|

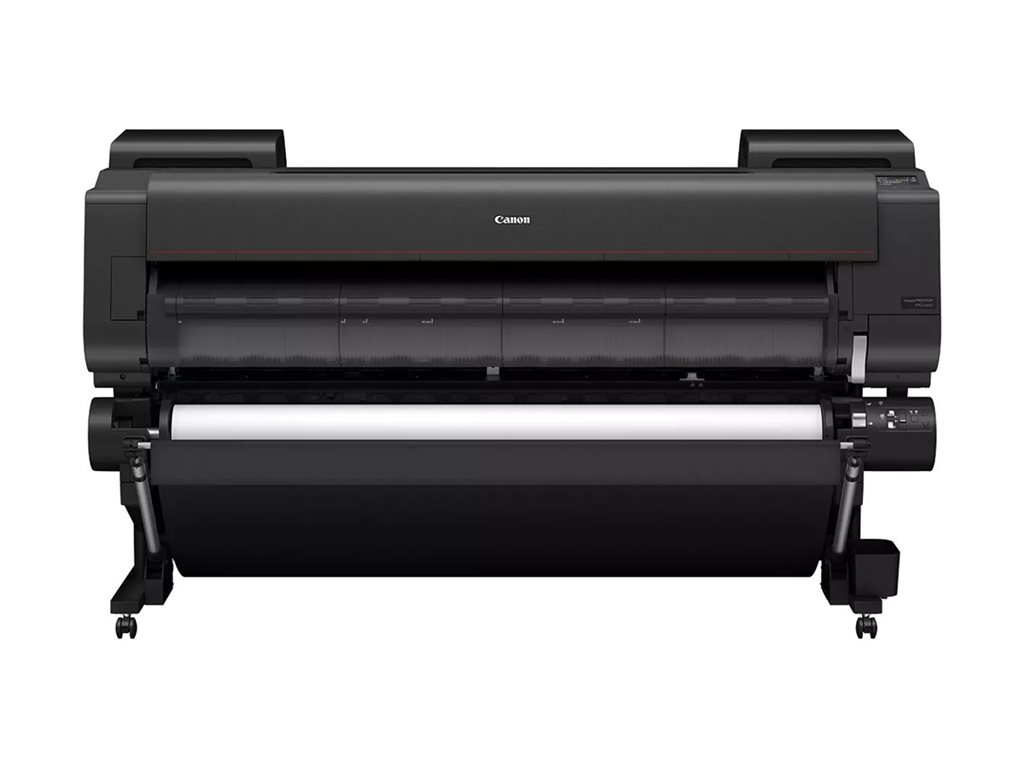

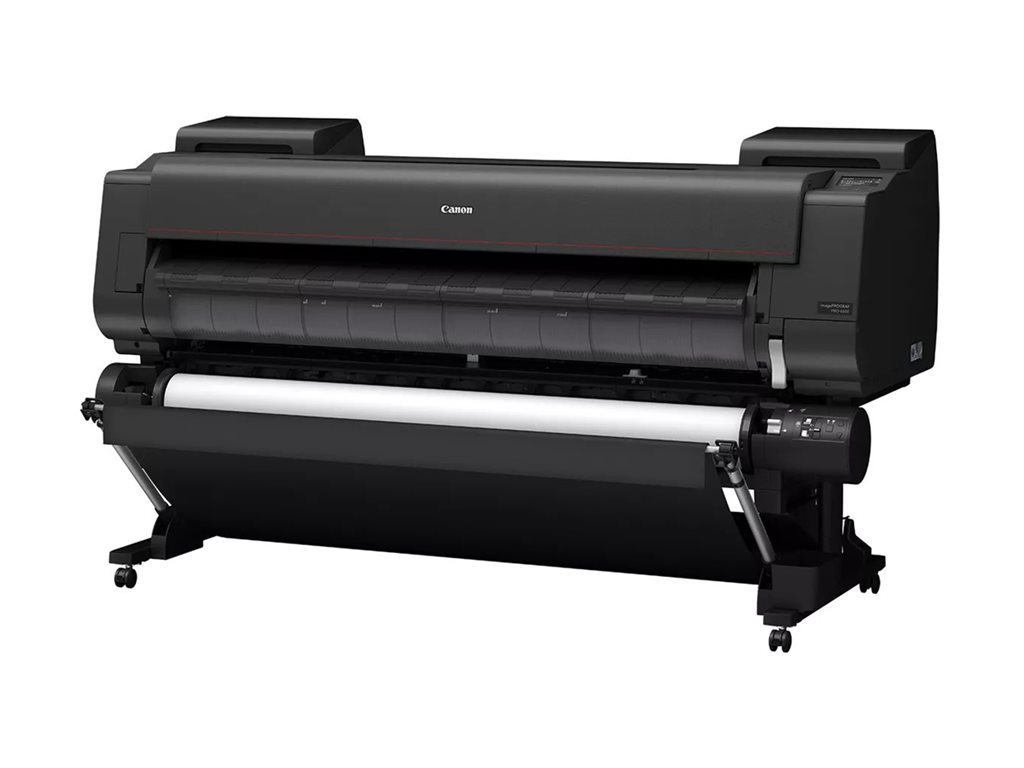

| Product Description | Canon imagePROGRAF PRO-6600 - large-format printer - color - ink-jet |
| Printer Type | 60" large-format printer - ink-jet - color |
| Weight | 376.99 lbs |
| Ink Palette Supported (Colors) | 12-ink - black, matte black, cyan, magenta, yellow, photo cyan, photo magenta, gray, photo gray, red, blue, chroma optimiser |
| Max Media Size | Roll (60 in) |
| Min Media Size (Custom) | 6 in |
| Max Media Size (Custom) | 60 in |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host |
| RAM Installed (Max) | 3 GB |
| Hard Drive | 500 GB |
| Language Simulation | PDF, SG Raster (Swift Graphic Raster), JPEG |
| Media Type | Plain paper, photo paper |
| Networking | Print server |
| Power | AC 100-240 V |
| System Requirements | Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 11, Apple macOS 10.15.7 - 13 |
| Enclosure Color | Black |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 78.7 in x 38.7 in x 46.1 in |
| General | |
| Printer Type | 60" large-format printer - ink-jet - color |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Connections | 1 x USB host - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 3-inch spindle adapter kit, 2" roller holder |
| Consumables Included | 1 x ink tank (pigmented photo black) - 330 ml ¦ 1 x ink tank (pigmented matte black) - 330 ml ¦ 1 x ink tank (pigmented cyan) - 330 ml ¦ 1 x ink tank (pigmented magenta) - 330 ml ¦ 1 x ink tank (pigmented yellow) - 330 ml ¦ 1 x ink tank (pigmented photo cyan) - 330 ml ¦ 1 x ink tank (pigmented photo magenta) - 330 ml ¦ 1 x ink tank (pigmented gray) - 330 ml ¦ 1 x ink tank (pigmented photo gray) - 330 ml ¦ 1 x ink tank (pigmented red) - 330 ml ¦ 1 x ink tank (pigmented blue) - 330 ml ¦ 1 x ink tank (chroma optimizer) - 330 ml ¦ 1 x printhead - Canon PF-10 |
| Printer | |
| Ink Palette Supported (Colors) | 12-ink - black, matte black, cyan, magenta, yellow, photo cyan, photo magenta, gray, photo gray, red, blue, chroma optimiser |
| Nozzle Configuration | 18432 nozzles |
| Minimum Ink Droplet Size | 4 pl |
| Ink Cartridge Configuration | 12 individual ink tanks |
| Ink Type | Canon LUCIA PRO pigment ink |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host |
| Language Simulation | PDF, SG Raster (Swift Graphic Raster), JPEG |
| RAM | |
| RAM Installed (Max) | 3 GB |
| Storage | |
| Hard Drive | 500 GB |
| Media Handling | |
| Media Type | Plain paper, photo paper |
| Max Media Size | Roll (60 in) |
| Min Media Size (Custom) | 6 in |
| Max Media Size (Custom) | 60 in |
| Media Sizes | Roll (60 in), Roll (6 in) |
| Media Thickness Range | 0.0028 in - 0.0315 in |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 85 watt |
| Power Consumption Stand by | 1.7 watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, PosterArtist Lite, Canon Quick Toolbox, Media Configuration Tool, Device Management Console |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 11, Apple macOS 10.15.7 - 13 |
| Environmental Parameters | |
| Min Operating Temperature | 59 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 78.7 in |
| Depth | 38.7 in |
| Height | 46.1 in |
| Weight | 376.99 lbs |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 87.8 in |
| Depth (Shipping) | 36 in |
| Height (Shipping) | 40.6 in |
| Weight (Shipping) | 489.42 lbs |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR | Yes |
