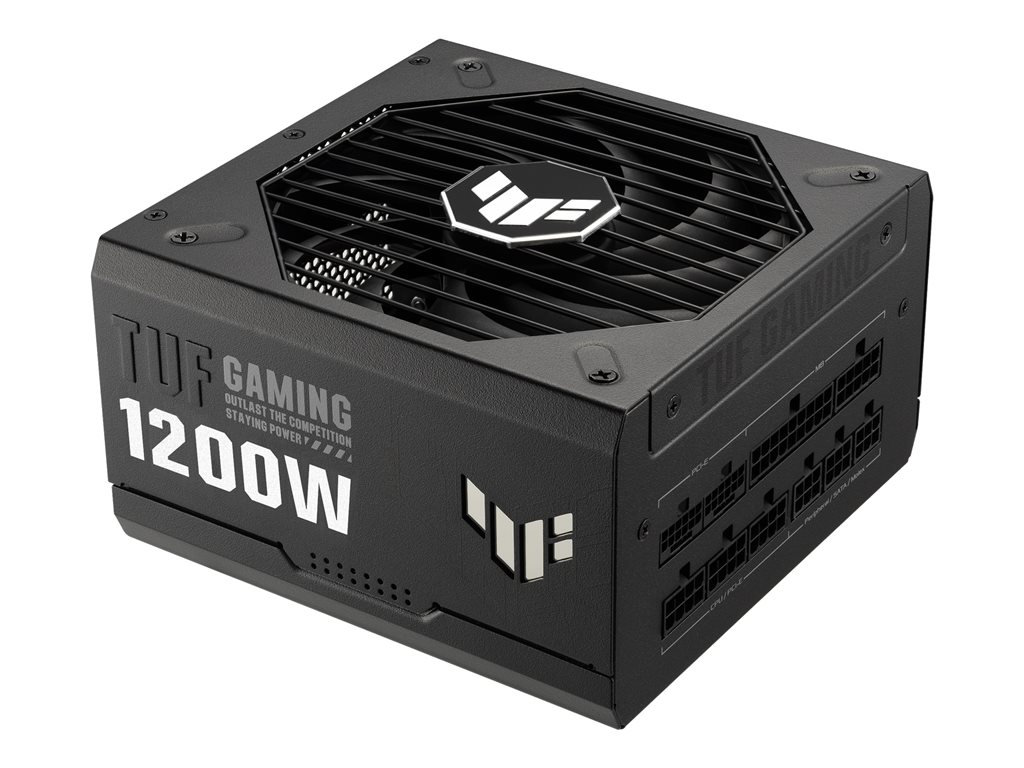

Power supply (internal) - ATX12V 3.0/ EPS12V - 80 PLUS Gold - AC 100-240 V - 1200 Watt
| Main Specifications | |
|---|---|
| Product Description | ASUS TUF Gaming - power supply - 1200 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Weight | 5.86 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 99 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power |
| Modular Cable Management | Yes |
| Cooling System | 135 mm fan |
| Included Accessories | Cable ties |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | Cable ties |
| Cables Included | AC input cable - external ¦ ATX power cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 2 ft ¦ 2 x 16-pin 12VHPWR power cable 2.2 ft ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 2.2 ft ¦ 2x Serial ATA modular cable ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 2.2 ft ¦ 4 pin internal power cable |
| MTBF | 170,000 hours |
| Cooling System | 135 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design, 0db Technology, protective PCB coating, military grade certification |
| Compliant Standards | RoHS |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 99 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| Efficiency | 92% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 3.4 in |
| Weight | 5.86 lbs |
