Z10 band - microphone - 3-pin XLR
| Main Specifications | |
|---|---|

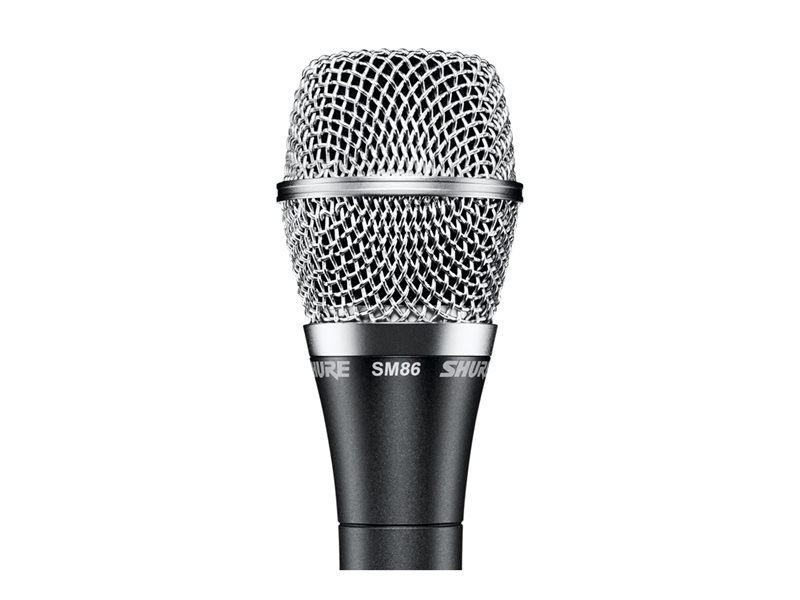

| Product Description | Shure MXW neXt MXW2X/SM86 - Z10 band - wireless microphone |
| Product Type | Wireless microphone - 3-pin XLR |
| Recommended Use | Professional audio, wireless microphone system - vocal |
| Radio Frequency Range | 1920 - 1930MHz |
| Microphone Technology | Dynamic |
| Microphone Operation Mode | Cardioid |
| Controls | Programmable mute button, Push to Mute (PTM), Push to Talk (PTT) |
| General | |
| Product Type | Wireless microphone - 3-pin XLR |
| Dimensions & Weight Details | Handheld transmitter: 2 in x 2 in x 9 in / 13.4 oz |
| Body Material | Die-cast metal |
| Recommended Use | Professional audio, wireless microphone system - vocal |
| Features | Up to 24 bit / 48 kHz audio, AES67 protocol support, Dante protocol support, moving coil, LCD display |
| Protection | Encryption protection |
| Max Operating Distance | 164 ft |
| Miscellaneous | |
| Compliant Standards | Directive 2014/53/EU, RoHS 2011/65/EU, Directive 2015/863/EU, AES-256 |
| Power | |
| Battery | Microphone battery - SB908 - rechargeable - lithium ion |
| Run Time (Up To) | 25 hour(s) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Operating | 0 - 95% RH |
| Microphone | |
| Microphone Technology | Dynamic |
| Microphone Operation Mode | Cardioid |
| Connectivity Technology | Wireless - DECT |
| Sensitivity | -50 dBV/Pascal |
| Impedance | 150 Ohm |
| Frequency Response | 50 - 18000 Hz |
| Dynamic Range | 111 dB |
| Max Sound Pressure | 147 dB |
| Remote Control | |
| Controls | Programmable mute button, Push to Mute (PTM), Push to Talk (PTT) |
| Wireless Link | |
| Radio Frequency Range | 1920 - 1930MHz |
| Modulation Type | TDMA, GFSK |
