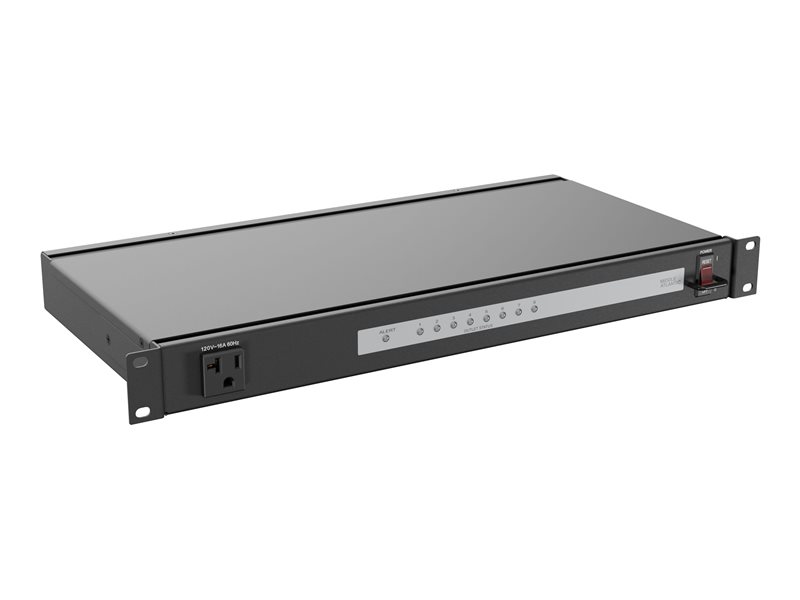

Power distribution unit (rack-mountable) - AC 120 V - Ethernet - input: NEMA 5-20P - output connectors: 9 (NEMA 5-20R) - 9 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Middle Atlantic Select Series PDU with RackLink - power distribution unit |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 9 ft |
| Input Voltage | AC 120 V |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 9 x power NEMA 5-20R |
| Networking | Ethernet |
| Remote Management Protocol | HTTP, TCP/IP |
| Color | Black |
| Dimensions (WxDxH) | 17.4 in x 9.7 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 9 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 9 ft |
| Features | Powder-coated, integrated web server, 8 individual controllable outlets, power sequencing |
| Compliant Standards | ETL, FCC Part 15 Class B, UL 62368-1, CSA C22.2 62368-1 |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | HTTP, TCP/IP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 80 - 140 V |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Power Output Connectors Details | 9 x power NEMA 5-20R |
| Max Electric Current | 20 A |
| Surge Suppression | Yes |
| Surge Response Time | 1 ns |
| Surge Energy Rating | 120 Joules |
| EMI/RFI Noise Filtration | 20 dB |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 9.7 in |
| Height | 1.7 in |
