Wireless access point - Wi-Fi 6 - Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz - wall / ceiling mountable
| Main Specifications | |
|---|---|

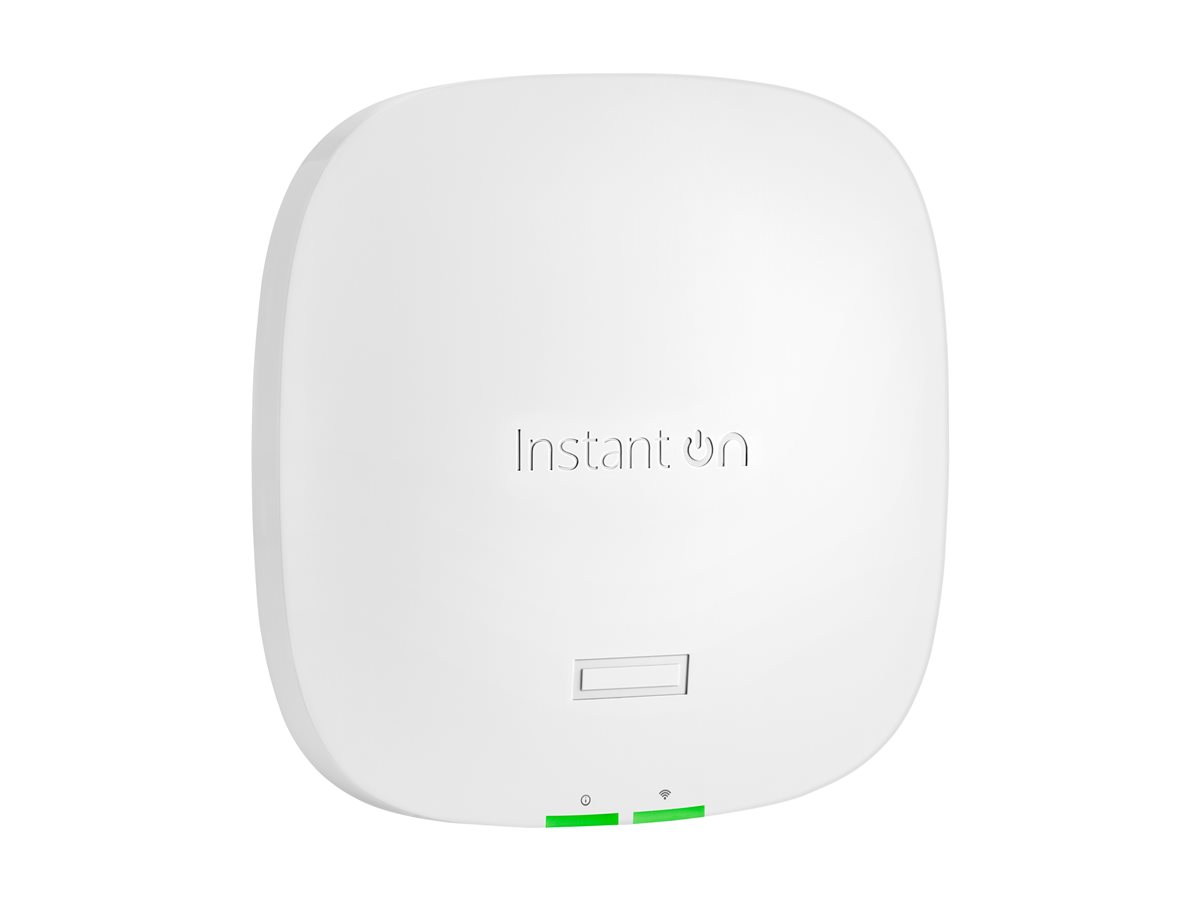

| Product Description | HPE Networking Instant On AP32 (RW1) - wireless access point - Wi-Fi 6E |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable - indoor |
| Localization | India |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (6 GHz): 2.4 Gbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
| Capacity | Recommended number of devices: 75 |
| Included Accessories | Ceiling/wall mount clip |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 6.3 in x 6.3 in x 1.5 in |
| Weight | 18.34 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 1.5 in |
| Weight | 18.34 oz |
| Localization | India |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5 GBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Ceiling/wall mount clip |
| MTBF | 62 years |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | 1024 QAM |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | PPPoE |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (6 GHz): 2.4 Gbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
| Capacity | Recommended number of devices: 75 |
| Status Indicators | Status, wireless |
| Features | Static IP mode, Transmit Beamforming, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), Trusted Platform Module (TPM), BSS Coloring, Target Wait Time (TWT), MU-MIMO technology, reset button, 2x2 MIMO technology, security slot (Kensington security lock compatible), PoE Class 3, PoE Class 4 |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.11a, IEEE 802.11b, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter / power injector (not included) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
