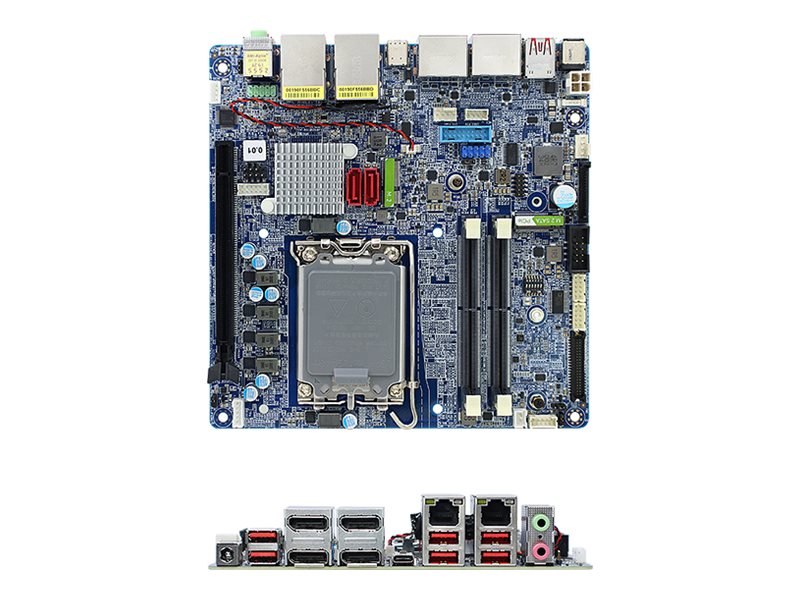

Motherboard - mini ITX - LGA1700 Socket - R680E Chipset - 2 x 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio
| Main Specifications | |
|---|---|
| Product Description | BCM MX680RD - motherboard - mini ITX - LGA1700 Socket - R680E |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel R680E / Nuvoton NCT6126D |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | Pentium, Celeron, Core i3, Core i5, Core i7, Core i9 (Maximum TDP 65 Watt) |
| Max RAM Size | 64 GB |
| RAM Supported | 2 SO-DIMM slots - DDR5, ECC |
| Storage Ports | 2 x SATA-600 |
| USB / FireWire Ports | 1 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2 + (1 x USB 3.2 Gen 2 + 2 x USB 2.0 via headers) |
| Audio | HD Audio |
| LAN | 2 x 2.5 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel R680E / Nuvoton NCT6126D |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i3, Core i5, Core i7, Core i9 (Maximum TDP 65 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x SO-DIMM 262-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2242/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2230 M.2 Key E slot) |
| Storage Interfaces | SATA-600 - 2 devices ¦ SATA-600 -connectors: 1 x M.2 |
| Interfaces | 4 x DisplayPort ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x LVDS ¦ 1 x USB 3.2 Gen 2 - header ¦ 2 x USB 2.0 - header ¦ 1 x RS-232 - header ¦ 1 x RS-232/422/485 - header ¦ 1 x SPI - header ¦ 1 x I2C - header ¦ 1 x SMBus - header ¦ 1 x audio - header ¦ 1 x amplifier - header |
| Power Connectors | DC-in power connector |
| Miscellaneous | |
| Compliant Standards | UEFI, RoHS, FCC Class B certified |
| Width | 6.7 in |
| Depth | 6.7 in |
| Weight | 14.07 oz |
| Audio | |
| Type | HD Audio |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| Hardware Features | Trusted Platform Module (TPM) 2.0, Intel Active Management Technology (Intel AMT), WatchDog Timer |
| LAN | |
| Network Controller | Intel I225-LM / Intel I226-LM |
| Network Interfaces | 2 x 2.5 Gigabit Ethernet |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz |
| Supported RAM Integrity Check | ECC |
| Features | Dual channel memory architecture |
