Switch - 4 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1000Base-T - rack-mountable - remanufactured
| Main Specifications | |
|---|---|

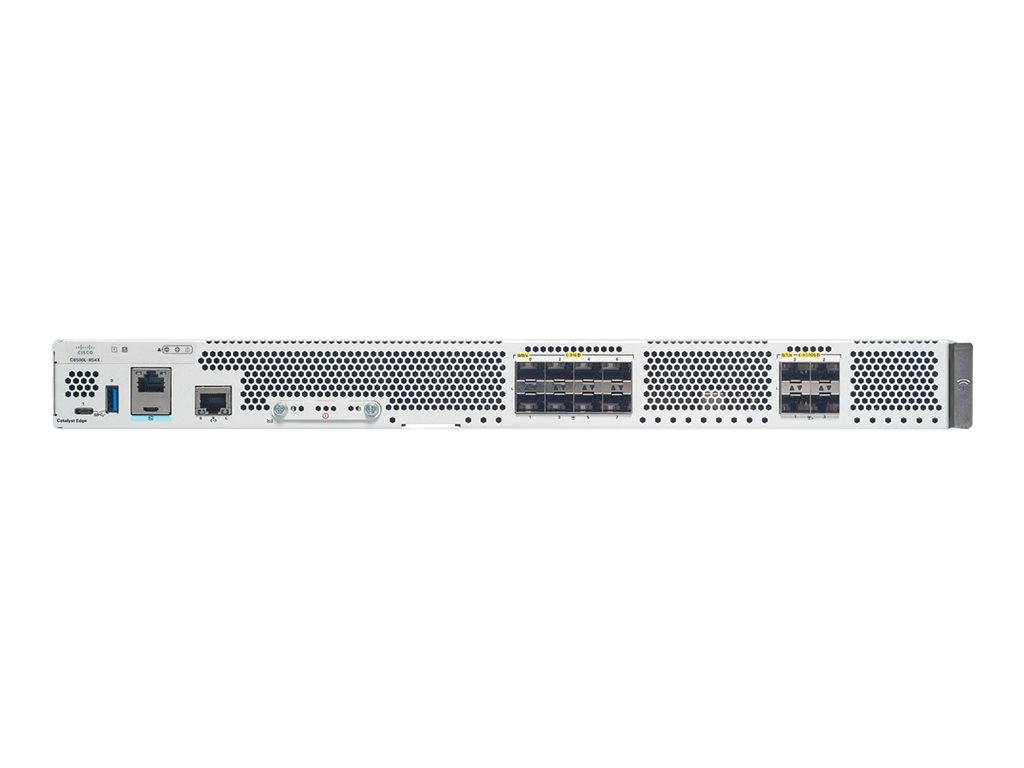

| Product Description | Cisco Catalyst 8500L-8S4X - switch - 12 ports - rack-mountable |
| Device Type | Switch - 12 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 4 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1000Base-T |
| Performance | SD-WAN IPsec throughput (1400Bytes, clear text): 19 Gbps ¦ SD-WAN IPsec throughput (IMIX, clear text): 8.6 Gbps ¦ IPv4 forwarding throughput (1400-byte packet size): 20 Gbps ¦ IPsec throughput (1400Bytes, clear text): 19 Gbps |
| Capacity | SD-WAN overlay tunnels scale: 8000 ¦ IPsec SVTI tunnels: 4000 ¦ ACLs per system: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 50000 ¦ IPv4 routes: 3500000 ¦ IPv6 routes: 2200000 ¦ Queues: 16000 ¦ NAT sessions: 2000000 ¦ Firewall sessions: 2000000 ¦ Virtual Routing and Forwarding (VRF) entries: 8000 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP, LISP |
| Remote Management Protocol | SNMP, SSH, CLI, SCP, NETCONF, NTP, DHCP, IPv4, IPv6, RADIUS, OMP |
| Features | Firewall protection, NAT support, VPN support, VLAN support, Syslog support, CBWFQ, WRED, ACL support, QoS, DHCP server, DHCP relay, NTP server, DHCP client, VRF, FEC, IPFIX, FNF, MACsec support, AVC, TrustSec support, AAA, DNS client, IPSec support, ERSPAN, EEM, EVC, Cisco IPSLA, NBAR, L2TP support, PPP, HDLC, MLPPP, PfR, SD-WAN support, AAR, DNS support, SUDI |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 16.3 in x 1.7 in |
| Weight | 16.98 lbs |
| Pricing Type | Remanufactured |
| Manufacturer Warranty | 90-day warranty |
| General | |
| Device Type | Switch - 12 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 4 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1000Base-T |
| Performance | SD-WAN IPsec throughput (1400Bytes, clear text): 19 Gbps ¦ SD-WAN IPsec throughput (IMIX, clear text): 8.6 Gbps ¦ IPv4 forwarding throughput (1400-byte packet size): 20 Gbps ¦ IPsec throughput (1400Bytes, clear text): 19 Gbps |
| Capacity | SD-WAN overlay tunnels scale: 8000 ¦ IPsec SVTI tunnels: 4000 ¦ ACLs per system: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 50000 ¦ IPv4 routes: 3500000 ¦ IPv6 routes: 2200000 ¦ Queues: 16000 ¦ NAT sessions: 2000000 ¦ Firewall sessions: 2000000 ¦ Virtual Routing and Forwarding (VRF) entries: 8000 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP, LISP |
| Remote Management Protocol | SNMP, SSH, CLI, SCP, NETCONF, NTP, DHCP, IPv4, IPv6, RADIUS, OMP |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, TLS, PKI, 128-bit AES, 256-bit AES, DTLS, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | Firewall protection, NAT support, VPN support, VLAN support, Syslog support, CBWFQ, WRED, ACL support, QoS, DHCP server, DHCP relay, NTP server, DHCP client, VRF, FEC, IPFIX, FNF, MACsec support, AVC, TrustSec support, AAA, DNS client, IPSec support, ERSPAN, EEM, EVC, Cisco IPSLA, NBAR, L2TP support, PPP, HDLC, MLPPP, PfR, SD-WAN support, AAR, DNS support, SUDI |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
| RAM | 16 GB |
| Built-in Devices | 32 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 4 x 1/10GBase-X SFP+ ¦ 8 x 1000Base-T RJ-45 ¦ 1 x management RJ-45 ¦ 1 x USB 3.0 Type A ¦ 1 x mini-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 90 days - response time: 10 days |
| Miscellaneous | |
| MTBF | 240,200 hours |
| Compliant Standards | EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, GR-1089-CORE, VCCI Class A, GR-63-CORE, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, EN 55035 |
| Pricing Type | Remanufactured |
| Power | |
| Power Device | Internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 16.3 in |
| Height | 1.7 in |
| Weight | 16.98 lbs |
