Switch - 20 x 25 Gigabit SFP28 + 4 x 10Gb Ethernet SFP+ - plug-in module
| Main Specifications | |
|---|---|

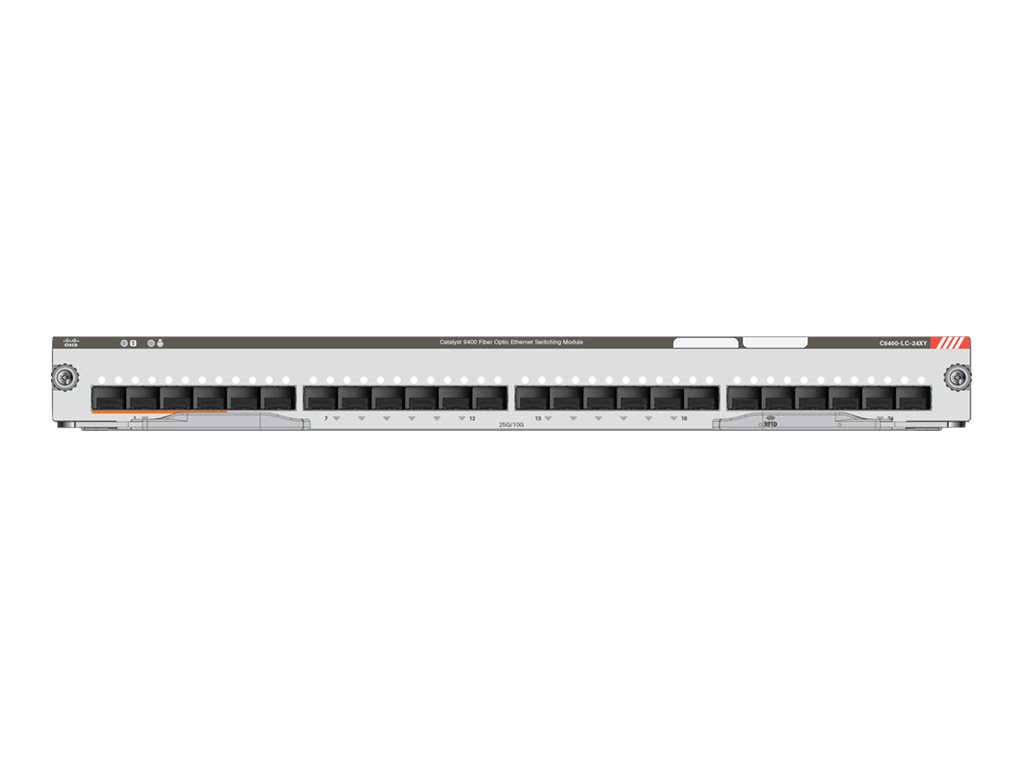

| Product Description | Cisco Catalyst 9400 Series Line Card - switch - 24 ports - plug-in module |
| Device Type | Switch - 24 ports |
| Enclosure Type | Plug-in module |
| Subtype | 25 Gigabit Ethernet |
| Ports | 20 x 25 Gigabit SFP28 + 4 x 10Gb Ethernet SFP+ |
| Performance | Bandwidth per slot: 480 Gbps |
| Jumbo Frame Support | 9216 bytes |
| Features | MACsec support |
| Compliant Standards | IEEE 802.1ae |
| Dimensions (WxDxH) | 14.9 in x 14.6 in x 1.6 in |
| System Requirements | Cisco IOS XE 17.12.1 or later |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports |
| Enclosure Type | Plug-in module |
| Subtype | 25 Gigabit Ethernet |
| Ports | 20 x 25 Gigabit SFP28 + 4 x 10Gb Ethernet SFP+ |
| Performance | Bandwidth per slot: 480 Gbps |
| Jumbo Frame Support | 9216 bytes |
| Features | MACsec support |
| Compliant Standards | IEEE 802.1ae |
| Expansion / Connectivity | |
| Interfaces | 20 x 25GBase-X SFP28 ¦ 4 x 10GBase-X SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day / same day shipment ¦ Technical support - phone consulting - 90 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317 |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.12.1 or later |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 14.9 in |
| Depth | 14.6 in |
| Height | 1.6 in |
