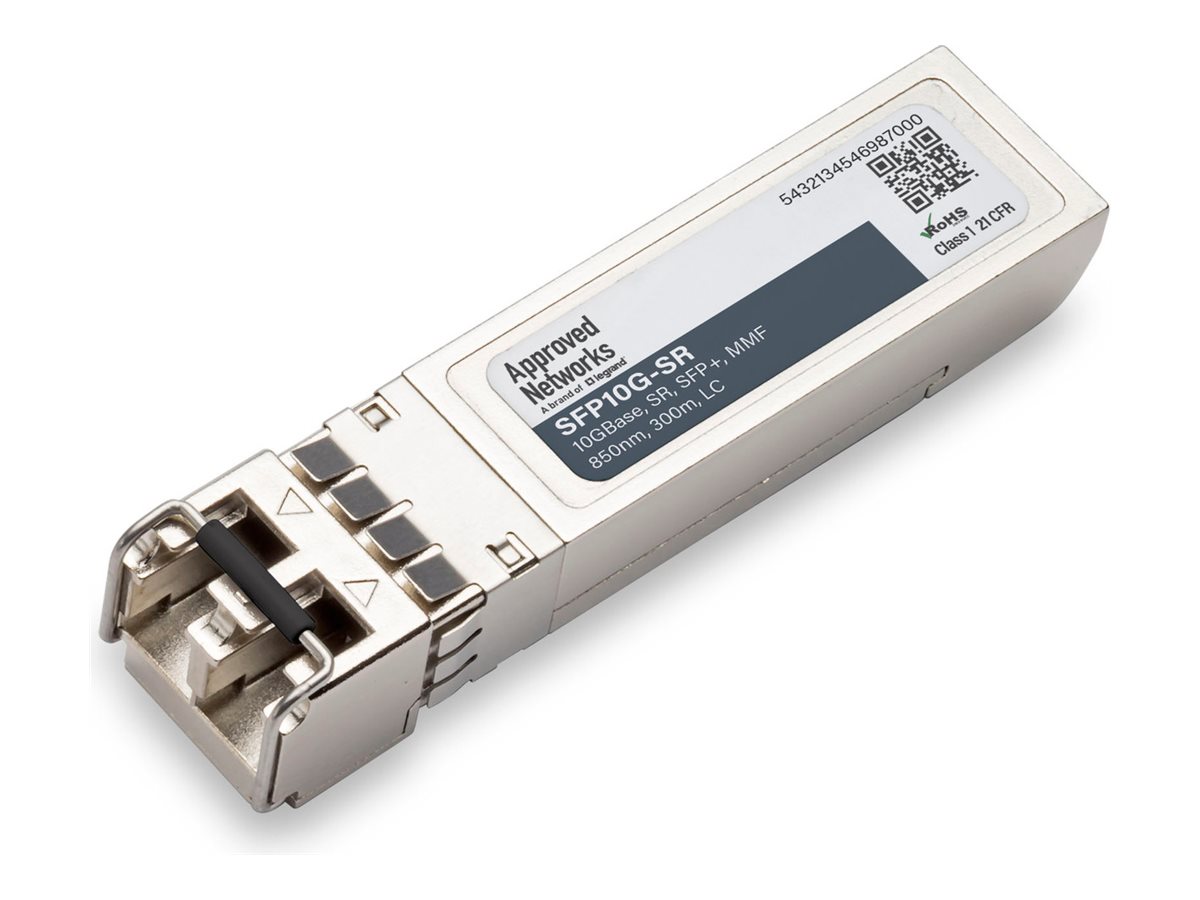

SFP+ transceiver module (equivalent to: Dell 407-BBOU) - 10GbE, CPRI - 10GBase-SR - LC multi-mode - up to 984 ft - 850 nm - for Dell Networking N1148; PowerSwitch S4112, S5212, S5232, S5296; Dell EMC Networking X1052
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - SFP+ transceiver module - 10GbE, CPRI |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-SR |
| Data Transfer Rate | 11.1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10GbE, CPRI |
| Max Transfer Distance | 984 ft |
| OEM Manufacturer Equivalent Part Number | Dell 407-BBOU |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | Dell Networking N1148, N1524, N1548, N2024, N2048, N3024, N3048, N4032, N4064, S3124, S3148, X4012; PowerEdge T130, T330, T430, T630; PowerSwitch S4112, S5212, S5232, S5296; Dell EMC Networking N2128, N3024, N3048, N3132, X1052 |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-SR (duplex) - LC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, OM3, SFF-8472 |
| OEM Manufacturer Equivalent Part Number | Dell 407-BBOU |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10GbE, CPRI |
| Data Transfer Rate | 11.1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Features | PIN Receiver, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), Vertical Cavity Surface Emitting Laser (VCSEL), 4.9 dB power budget, transmit min -6 dBm / max -0.5 dBm, -10 dBm sensivity |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Compatibility Information | |
| Designed For | Dell Networking N1148P-ON, N1524, N1524P, N1548, N1548P, N2024, N2024P, N2048, N2048P, N3024, N3024F, N3024P, N3048, N3048P, N4032, N4032F, N4064, N4064F, S3124, S3124F, S3124P, S3148, S3148P, X4012 ¦ Dell PowerEdge T130, T330, T430, T630 ¦ Dell PowerSwitch S4112F-ON, S4112T-ON, S5212F-ON, S5232F-ON, S5296F-ON ¦ Dell EMC Networking N2128PX-ON, N3024EF-ON, N3024EP-ON, N3024ET-ON, N3048EP-ON, N3048ET-ON, N3132PX-ON, X1052, X1052P |
