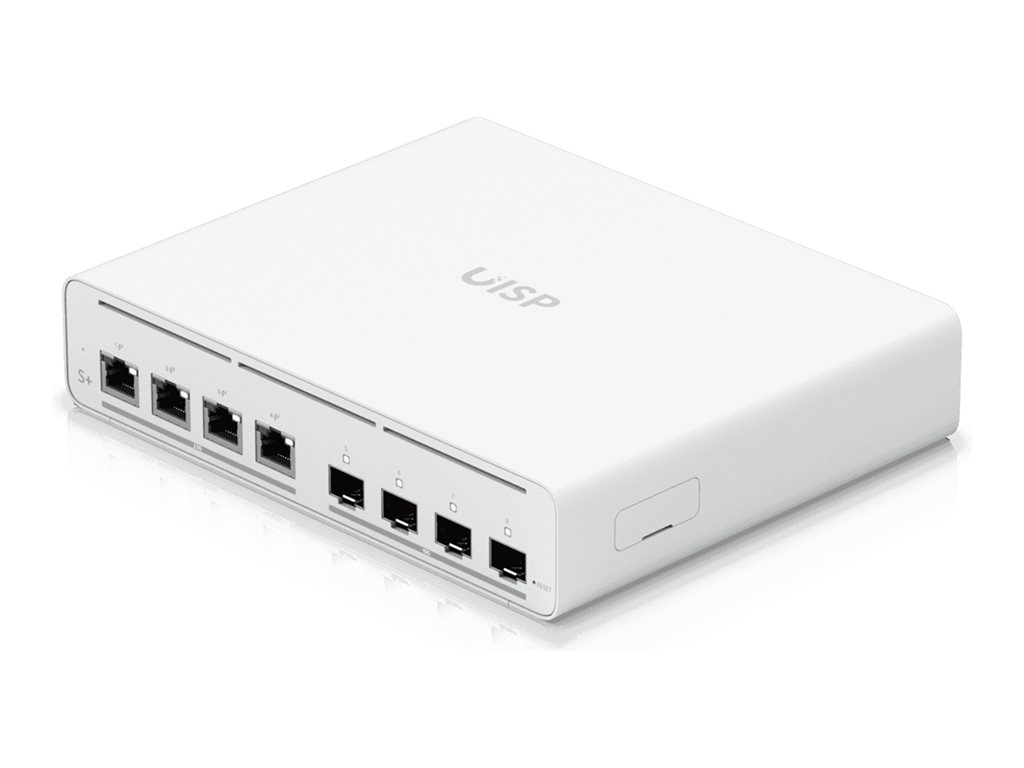

Switch - managed - 4 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+ - desktop, rack-mountable, wall-mountable - Passive PoE (160 W)
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi UISP Plus - switch - 8 ports - managed - rack-mountable |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 4 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | Passive PoE |
| PoE Budget | 160 W |
| Performance | Non-blocking switching throughput: 50 Gbps ¦ Switching capacity: 100 Gbps ¦ Forwarding rate: 74.41 Mpps |
| Features | Port isolation, speed limiting, DHCP snooping, reset button, polycarbonate enclosure, steel housing, dual core CPU, Bluetooth management, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge) |
| Dimensions (WxDxH) | 8.3 in x 6.7 in x 1.7 in |
| Weight | 3.86 lbs |
| General | |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Desktop, rack-mountable, wall-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 4 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | Passive PoE |
| PoE Budget | 160 W |
| Performance | Non-blocking switching throughput: 50 Gbps ¦ Switching capacity: 100 Gbps ¦ Forwarding rate: 74.41 Mpps |
| Features | Port isolation, speed limiting, DHCP snooping, reset button, polycarbonate enclosure, steel housing, dual core CPU, Bluetooth management, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge) |
| Processor | X ARM: 1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Status, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 4 x 10Gbit LAN SFP+ ¦ 4 x 2.5GBase-T RJ-45 PoE - 40 W |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, IC |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 3.86 lbs |
