Audio over IP transceiver
| Main Specifications | |
|---|---|

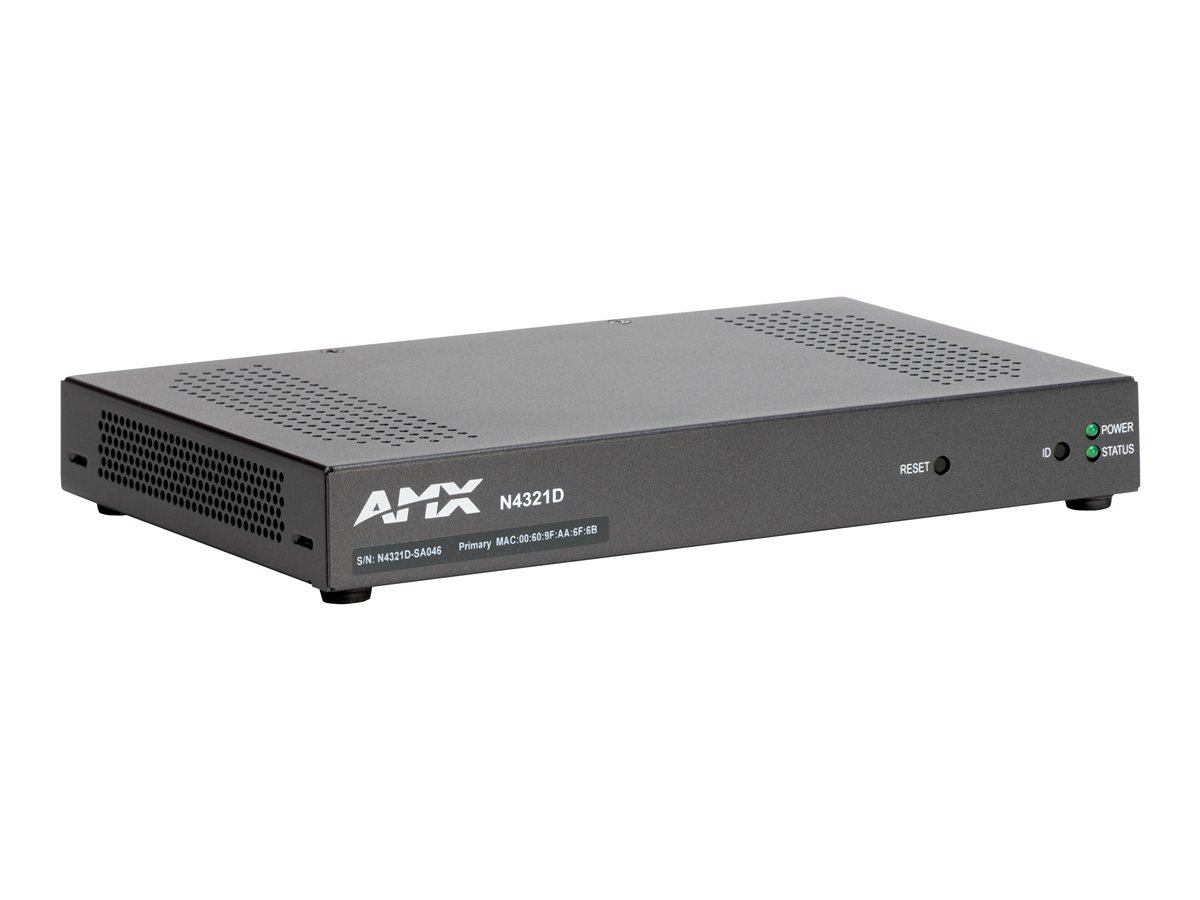

| Product Description | AMX NMX-ATC-N4321D audio over IP transceiver |
| Type | Audio over IP transceiver |
| Dimensions (WxDxH) | 7.9 in - 5 in - 1 in |
| Weight | 24.69 oz |
| General | |
| Type | Audio over IP transceiver |
| Width | 7.9 in |
| Depth | 5 in |
| Height | 1 in |
| Weight | 24.69 oz |
| Power | |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 33.15 oz |
| Terminals | |
| Terminals | (2) x network - RJ-45 ¦ (1) x balanced audio input - terminal block ¦ (1) x balanced audio output - terminal block ¦ (1) x headphones - phone stereo 6.3 mm ¦ (1) x GPI input - terminal block ¦ (1) x relay - terminal block |
| Studio & Production Equipment | |
| Features | Dante audio network interface, AES67 support, POE support, phantom power |
