AMD Ryzen 5 - 7535HS / up to 4.55 GHz - Win 11 Home - GF RTX 2050 - 8 GB RAM - 512 GB SSD NVMe - 17.3" 1920 x 1080 (Full HD) @ 144 Hz - Gigabit Ethernet - Wi-Fi 6, Bluetooth - graphite black
| Main Specifications | |
|---|---|
| Product Description | ASUS TUF Gaming A17 FA706NF-RS51 - 17.3" - AMD Ryzen 5 - 7535HS - 8 GB RAM - 512 GB SSD |
| Product Type | Notebook |
| Operating System | Win 11 Home |
| Processor | AMD Ryzen 5 7535HS / 3.3 GHz, up to 4.55 GHz / 16 MB Cache |
| Memory | 8 GB DDR5 (1 x 8 GB) |
| Storage | 512 GB SSD - NVMe |
| Display | 17.3" 1920 x 1080 / Full HD @ 144 Hz |
| Graphics | NVIDIA GeForce RTX 2050 / AMD Radeon Graphics |
| Video Memory | 4 GB GDDR6 SDRAM |
| Gaming | Yes |
| Keyboard Backlight | Yes |
| Numeric Keypad | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet |
| Battery | 3-cell |
| Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Color | Graphite black |
| Dimensions (WxDxH) | 15.7 in x 10.6 in x 1 in |
| Weight | 5.73 lbs |
| Repairability Index | 8.3 (out of 10) |
| General | |
| Product Type | Notebook |
| Operating System | Windows 11 Home |
| Memory | |
| RAM | 8 GB (1 x 8 GB) |
| Max RAM Supported | 32 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 1 |
| Miscellaneous | |
| Color | Graphite black |
| Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Features | BIOS protection, Self-Cleaning Cooling 2.0, honeycomb design, MIL-STD-810H tested |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Included Accessories | Power adapter |
| Storage | |
| Main Storage | 512 GB SSD M.2 PCIe 4.0 - NVM Express (NVMe) |
| Battery | |
| Technology | 3-cell lithium ion |
| Capacity | 48 Wh |
| Display | |
| Type | 17.3" |
| Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 144 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 250 cd/m² |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 170 |
| Color Gamut | 62.5% sRGB, 47.34% Adobe RGB, 45% NTSC |
| Features | Value IPS-level, anti-glare, Adaptive-Sync technology |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Network Interface | Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 15.7 in x 10.6 in x 1 in |
| Weight | 5.73 lbs |
| Processor / Chipset | |
| CPU | AMD Ryzen 5 7535HS / 3.3 GHz |
| Max Turbo Speed | 4.55 GHz |
| Number of Cores | 6-core |
| Cache | L3 - 16 MB |
| Audio & Video | |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA GeForce RTX 2050 / AMD Radeon Graphics |
| Video Memory | 4 GB GDDR6 SDRAM |
| Video System Features | NVIDIA Optimus, Dynamic Boost |
| Gaming | Yes |
| Camera | Yes - 720p |
| Sound | Dual speakers, array microphone |
| Compliant Standards | DTS:X Ultra |
| Audio Features | Output: ASUS SonicMaster, Audio by DTS, Hi-Res Audio; Input: AI noise cancelling |
| Input | |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Numeric Keypad | Yes |
| Features | 1 RGB zone, ASUS Overstroke technology, marked WASD, 20 million clicks |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 150 watt, 20 V, 7.5 A |
| Connections & Expansion | |
| Slots | 2 x M.2 (PCI Express 4.0 x4) (1 available) |

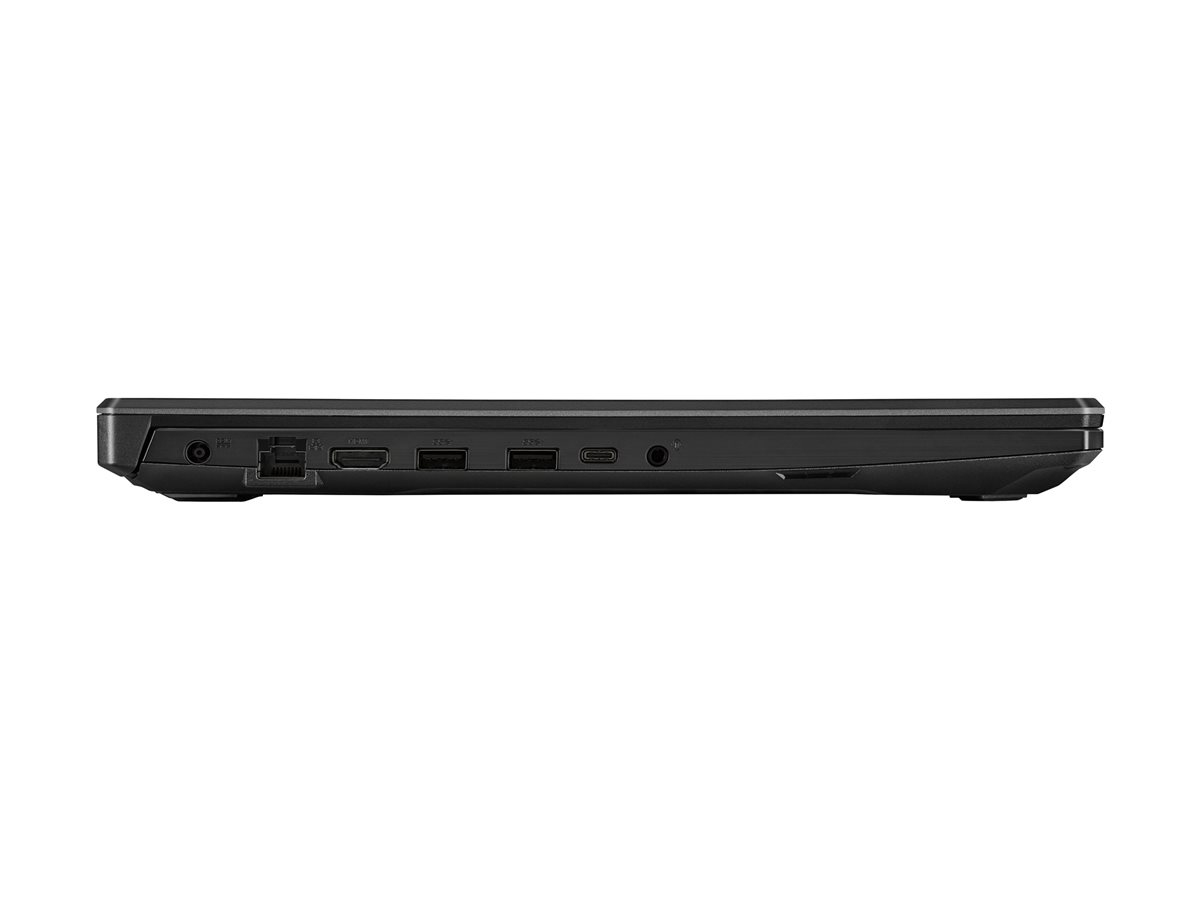

| Interfaces Details | HDMI ¦ Headphone/microphone combo jack ¦ LAN ¦ 3 x USB 3.2 Gen 2 ¦ USB-C 3.2 Gen 2 (supports DisplayPort Alt Mode) |
| Sustainability Information | |
| Repairability Index | 8.3 (out of 10) |
