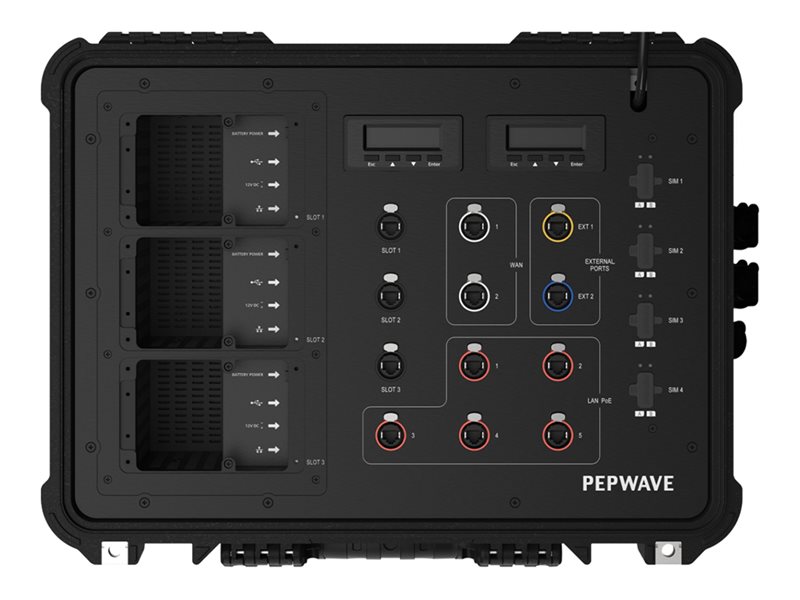

Wireless router - WWAN 7-port switch WAN ports: 2 - Wi-Fi 5 - 5G - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Pepwave PDX - wireless router - WWAN - Wi-Fi 5 - 5G - desktop - TAA Compliant |
| Device Type | Wireless router - wireless cellular modem - 7-port switch (integrated) |
| Enclosure Type | Desktop |
| Cellular Protocol | 5G |
| Generation | 5G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79 |
| WAN Ports Qty | 2 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Performance | Routing throughput: 2.5 Gbps ¦ PepVPN/SpeedFusion throughput: 600 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 500 Mbps |
| Capacity | Recommended users: 50 - 500 |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP |
| Routing Protocol | RIP-2, BGP, VRRP, OSPFv2, GRE |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, CLI |
| Features | NAT support, PoE, load balancing, Syslog support, DoS attack prevention, DHCP server, port forwarding, bandwidth control, e-mail notification, rugged, static routing, Captive Portal, DHCP reservation, battery powered, Advanced QoS, 2x2 MIMO technology, SD-WAN support, OpenVPN server, InControl Cloud Management, PepVPN, FirstNet ready |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | AC 100-240 / DC 12-56 V |
| Dimensions (WxDxH) | 19.7 in x 14.8 in x 7.7 in |
| Weight | 35.05 lbs |
| Localization | America |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router - 7-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Performance | Routing throughput: 2.5 Gbps ¦ PepVPN/SpeedFusion throughput: 600 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 500 Mbps |
| Capacity | Recommended users: 50 - 500 |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP |
| Routing Protocol | RIP-2, BGP, VRRP, OSPFv2, GRE |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, CLI |
| Features | NAT support, PoE, load balancing, Syslog support, DoS attack prevention, DHCP server, port forwarding, bandwidth control, e-mail notification, rugged, static routing, Captive Portal, DHCP reservation, battery powered, Advanced QoS, 2x2 MIMO technology, SD-WAN support, OpenVPN server, InControl Cloud Management, PepVPN, FirstNet ready |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IC, FCC, IP65, IP55, MIL-STD-810H |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 7 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| TAA Compliant | Yes |
| Localization | America |
| Power | |
| Voltage Required | AC 100-240 / DC 12-56 V |
| Power Consumption Operational | 38 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | 4 x wireless cellular modem |
| Cellular Protocol | 5G |
| Generation | 5G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79 |
| Max Transfer Rate | 600 Mbps |
| Dimensions & Weight | |
| Width | 19.7 in |
| Depth | 14.8 in |
| Height | 7.7 in |
| Weight | 35.05 lbs |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 13 |
