Router 10GbE - WAN ports: 20 - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | PePLink Balance 2500 EC - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| WAN Ports Qty | 20 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Throughput: 30 Gbps ¦ SpeedFusion throughput (no encryption): 4 Gbps ¦ SpeedFusion throughput (256-bit AES): 4 Gbps |
| Capacity | Recommended users: 10000 - 20000+ ¦ Number of SpeedFusion peers: 4000 ¦ Maximum number of access points: 1500 |
| Network / Transport Protocol | PPPoE, DHCP, IPv6, DNS, PPTP, L2TP, Bonjour |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-2 |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3 |
| Features | Hot failover, WAN smoothing, bandwidth bonding, InControl Cloud Management, drop-in mode, High Availability, content filtering, bypass interface pair, remote access management, 3G/4G USB Dongle Support, DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, DoS attack prevention, OpenVPN server, IPSec VPN, GRE tunneling, bandwidth control, port forwarding, NAT support, SIP Pass-Through, H.323 Pass-Through, Access Point Auto Discovery, Captive Portal, CLI management, e-mail notification, Syslog support |
| Compliant Standards | IEEE 802.3ad (LACP), UPnP |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.2 in x 18.5 in x 1.7 in |
| Weight | 19.18 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Throughput: 30 Gbps ¦ SpeedFusion throughput (no encryption): 4 Gbps ¦ SpeedFusion throughput (256-bit AES): 4 Gbps |
| Capacity | Recommended users: 10000 - 20000+ ¦ Number of SpeedFusion peers: 4000 ¦ Maximum number of access points: 1500 |
| Network / Transport Protocol | PPPoE, DHCP, IPv6, DNS, PPTP, L2TP, Bonjour |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-2 |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3 |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | X.509 certificates, LDAP, RADIUS, Active Directory |
| Features | Hot failover, WAN smoothing, bandwidth bonding, InControl Cloud Management, drop-in mode, High Availability, content filtering, bypass interface pair, remote access management, 3G/4G USB Dongle Support, DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, DoS attack prevention, OpenVPN server, IPSec VPN, GRE tunneling, bandwidth control, port forwarding, NAT support, SIP Pass-Through, H.323 Pass-Through, Access Point Auto Discovery, Captive Portal, CLI management, e-mail notification, Syslog support |
| Compliant Standards | IEEE 802.3ad (LACP), UPnP, FCC, RoHS |
| Hard Drive | 1 TB |
| Built-in Devices | Status LCD |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 16 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 4 x 10Gb Ethernet - SFP+ ¦ USB: 4 pin USB Type A ¦ Console: 1 x RJ-45 ¦ Management: 1 x RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

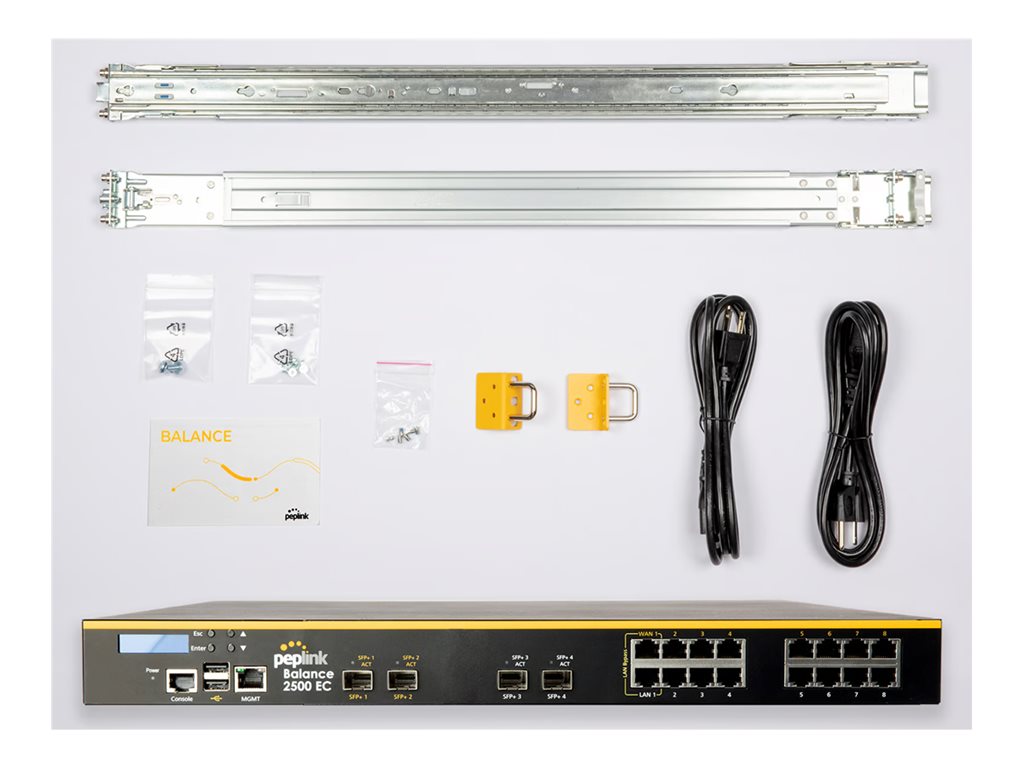

| Included Accessories | 2 x power cords |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 65 Watt |
| Software / System Requirements | |
| Software Included | Peplink Balance Firmware |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Weight | 19.18 lbs |
