Wireless access point - 1GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

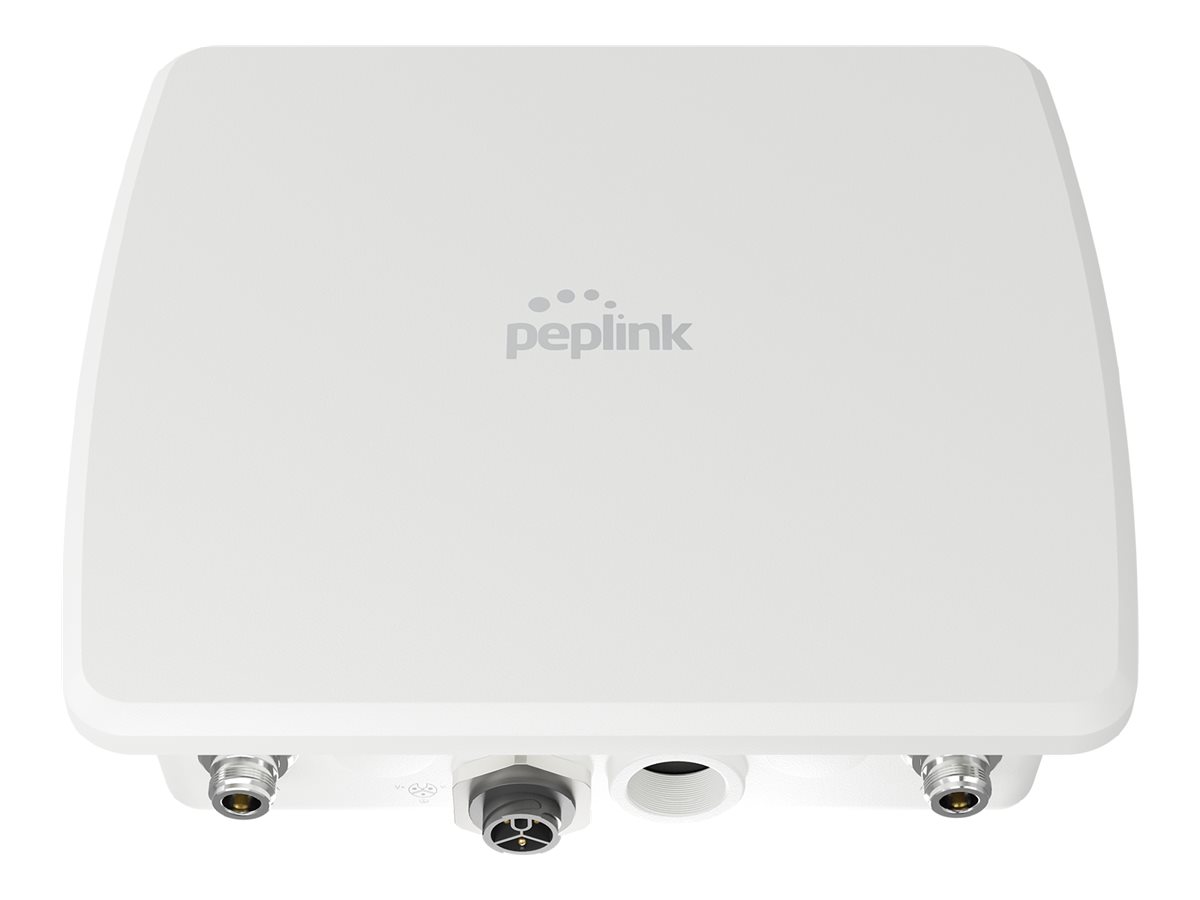

| Product Description | Peplink AP Pro AX (HW2) - wireless access point - Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Channel width: 20 / 40 / 80 MHz |
| Capacity | Concurrent users per radio: 256 ¦ SSIDs per radio: 16 |
| Included Accessories | Mounting kit, M6 screw set, wall screw with anchor set |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 10 in x 3.1 in x 8.9 in |
| Weight | 3.53 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Width | 10 in |
| Depth | 3.1 in |
| Height | 8.9 in |
| Weight | 3.53 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x antenna - N connector ¦ 1 x 1000Base-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Mounting kit, M6 screw set, wall screw with anchor set |
| Cables Included | Network cable |
| Compliant Standards | IP67 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 1200 Mbps |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Channel width: 20 / 40 / 80 MHz |
| Capacity | Concurrent users per radio: 256 ¦ SSIDs per radio: 16 |
| Features | Bridge mode, NAT support, Wireless Distribution System (WDS) support, Multiple SSID support, auto channel selection, Neighbor AP detection, Multicast filtering function, IGMP snooping, Quality of Service (QoS), VLAN support, bandwidth control, MAC address filtering, Layer 2 Client Isolation, AP Client Limiting, VPN support, Pre-Shared Key (PSK), dynamic routing, 2x2 MU-MIMO technology, rugged, Mesh networking |
| Encryption Algorithm | WPA, WPA2, WPA3-Personal, WPA2-Enterprise, 256-bit AES |
| Authentication Method | RADIUS |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 14.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Antenna | |
| Antenna | External |
| Antenna Qty | 4 |
| Gain Level | 8 dBi |
