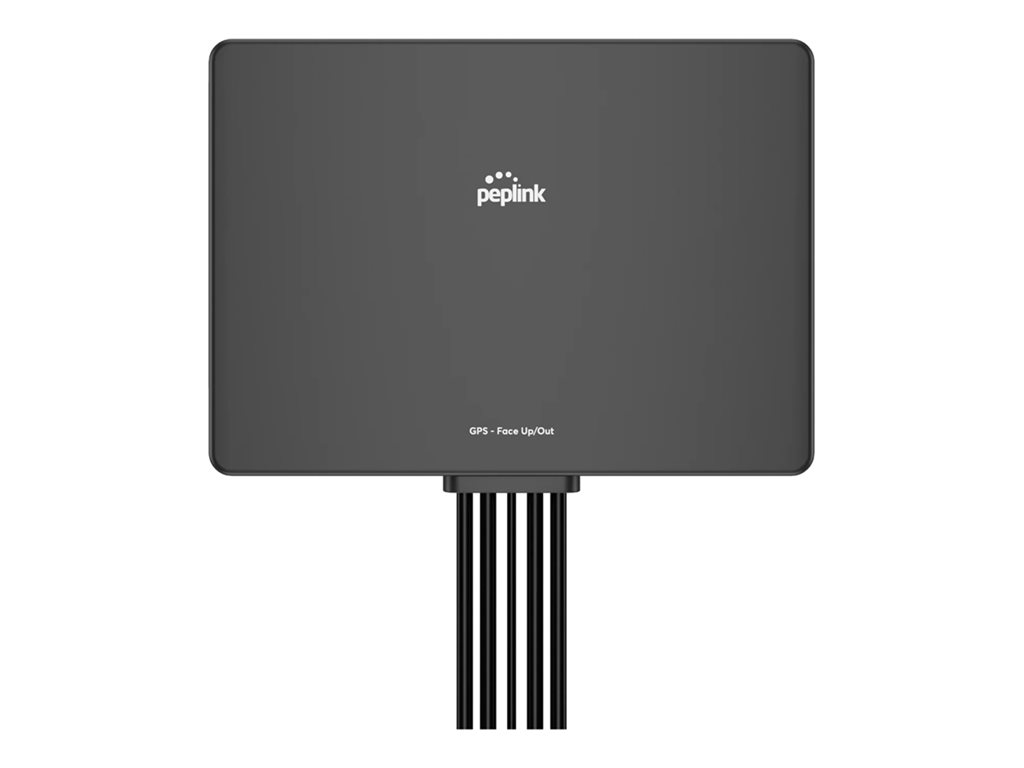

Antenna - cellular, Wi-Fi, navigation - omni-directional - wall-mountable, hook-and-loop mount, window, dashboard
| Main Specifications | |
|---|---|
| Product Description | Peplink | Pepwave Slim 22G - antenna |
| Device Type | Antenna |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Wall-mountable, hook-and-loop mount, window, dashboard |
| Dimensions (WxDxH) | 7.1 in x 0.6 in x 5.1 in |
| Color | Black |
| Compatibility | LTE, 5G, GPS, Wi-Fi, Band 71, GNSS |
| Frequency Range | 600 - 6000 MHz, 617 - 960 MHz, 1710 - 2700 MHz, 3400 - 4200 MHz, 5000 - 6000 MHz, 1561 - 1602 MHz, 2400 - 2500 MHz |
| Directivity | Omni-directional |
| Features | IP55, RoHS, UL 94-HB, UL 746C, 2x2 MiMo, VSWR < 2.5, low profile, linear polarization |
| General | |
| Product Type | Antenna |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Wall-mountable, hook-and-loop mount, window, dashboard |
| Width | 7.1 in |
| Depth | 0.6 in |
| Height | 5.1 in |
| Color | Black |
| Product Material | UV stable polycarbonate |
| Miscellaneous | |
| Cables Included | 5 x antenna cable - 6.6 ft |
| Included Accessories | Hook-and-loop fasteners |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.6 in |
| Shipping Depth | 3.1 in |
| Shipping Height | 9.8 in |
| Antenna | |
| Compatibility | LTE, 5G, GPS, Wi-Fi, Band 71, GNSS |
| Frequency Range | 600 - 6000 MHz, 617 - 960 MHz, 1710 - 2700 MHz, 3400 - 4200 MHz, 5000 - 6000 MHz, 1561 - 1602 MHz, 2400 - 2500 MHz |
| Impedance | 50 Ohm |
| Max Power | 10 Watt |
| Directivity | Omni-directional |
| Features | IP55, RoHS, UL 94-HB, UL 746C, 2x2 MiMo, VSWR < 2.5, low profile, linear polarization |
| Connector Provided | |
| Type | 2 x cellular antenna - SMA (male) ¦ 2 x Wi-Fi antenna - RP-SMA (male) ¦ 1 x GPS antenna - SMA (male) |
