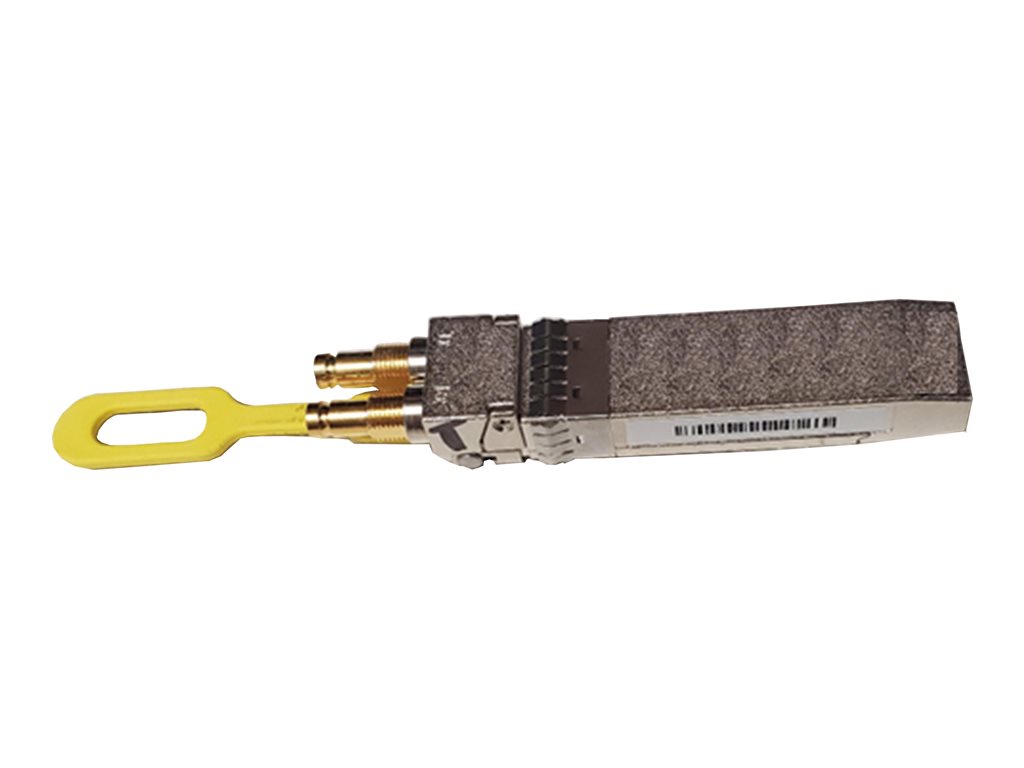

SFP (mini-GBIC) transceiver module - 1GbE - up to 449 ft - T-3/DS-3
| Main Specifications | |
|---|---|
| Product Description | Cisco - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 449 ft |
| Dimensions (WxDxH) | 2.7 in x 0.5 in x 0.3 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | ITU-T G.703, RoHS, FCC Part 15 B, EN55022, WEEE |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Line Rate | T-3/DS-3 |
| Max Transfer Distance | 449 ft |
| Features | Yellow bale-latch, framing support, Structure-Agnostic TDM over Packet (SATOP) support |
| Compliant Standards | ITU-T G.703 |
| Power | |
| Power Consumption Operational | 1.25 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 0.5 in |
| Height | 0.3 in |
