Router 40GbE, 100GbE, 400GbE - front to back airflow - rack-mountable - with 2 x MX10K-LC9600-BASE line cards
| Main Specifications | |
|---|---|

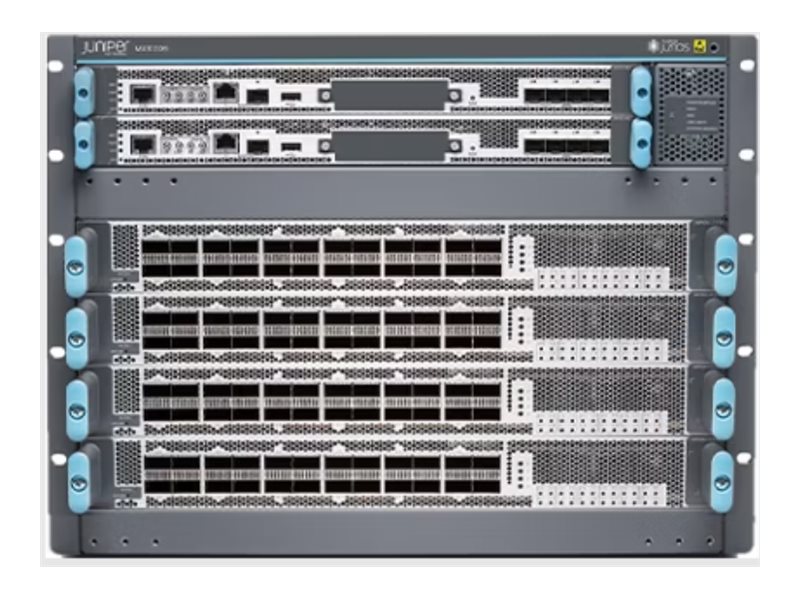

| Product Description | Juniper Networks MX-series MX10004 - router - rack-mountable - with 2 x MX10K-LC9600-BASE line cards |
| Device Type | Router - with 2 x MX10K-LC9600-BASE line cards |
| Enclosure Type | Front to back airflow rack-mountable - modular - 7U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Throughput: 9.6 Tbps |
| Capacity | System capacity: 38.4 Tbps ¦ FIB entries: 7000000 ¦ RIB entries: 80000000 |
| Routing Protocol | MPLS |
| Remote Management Protocol | OAM |
| Features | IP/MPLS networking, IP SLAs, SPRING, OpenConfig support, NSR, ISSU, FFR, 2 fan trays |
| Power | DC -40 - -72 V |
| Dimensions (WxDxH) | 17.4 in x 35 in x 13 in |
| Weight | 271.17 lbs |
| General | |
| Device Type | Router - with 2 x MX10K-LC9600-BASE line cards |
| Enclosure Type | Front to back airflow rack-mountable - modular - 7U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Throughput: 9.6 Tbps |
| Capacity | System capacity: 38.4 Tbps ¦ FIB entries: 7000000 ¦ RIB entries: 80000000 |
| Routing Protocol | MPLS |
| Remote Management Protocol | OAM |
| Features | IP/MPLS networking, IP SLAs, SPRING, OpenConfig support, NSR, ISSU, FFR, 2 fan trays |
| Compliant Standards | SPRING |
| Processor | Intel 2.2 GHz |
| Hard Drive | 400 GB |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 0 (free) x Routing Engine(RE) / Control Board(CB) ¦ 6 (total) / 4 (free) x Switching Fabric Unit |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 3 |
| Voltage Required | DC -40 - -72 V |
| Power Consumption Operational | 7.5 kW |
| Software / System Requirements | |
| OS Provided | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 114.8 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 35 in |
| Height | 13 in |
| Weight | 271.17 lbs |
